YN60LG-MSV (1984)

Toyota Hilux

Production Mar 1984 - Aug 1985
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8408)LN6#,YN6#..EUR,GEN,SA ; (8408- )LN6#,RN6#,YN6#

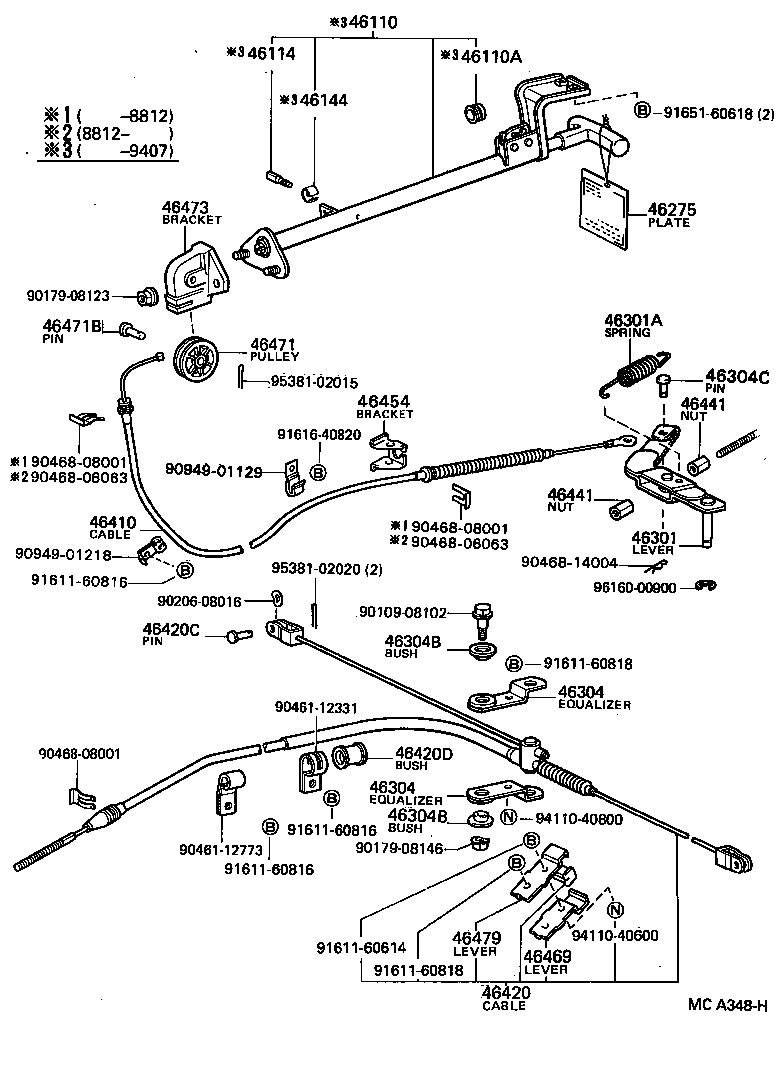

Click highlighted areas on diagram

diagram 46110 46110A 46114 46144 46275 46301 46301A 46304 46304 46304B 46304B 46304C 46410 46420 46420C 46420D 46441 46441 46454 46469 46471 46471B 46473 46479 9010908102 9017908123 9017908146 9020608016 9046112331 9046112773 9046806063 9046806063 9046808001 9046808001 9046808001 9046814004 9094901129 9094901218 9161160614 9161160816 9161160816 9161160816 9161160818 9161160818 9161640820 9165160618 9411040600 9411040800 9538102015 9538102020 9616000900
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46110-35160

LN50,55,65,YN5#,6#..LHD

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LN5#,6#,RN5#,61,YN5#,6#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN5#,6#,RN5#,61,YN5#,6#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LN5#,6#,RN5#,61,YN5#,6#

 1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-26010

LN5#,6#,YN5#,6#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35140

LN6#,RN67,YN6#

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90507-20011

LN60,61,65,RN6#,YN6#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN60,61,65,RN6#,YN6#

 2
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35030

LN60,61,65,RN6#,YN6#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN60,65,RN6#,YN60,65

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LN60,65,RN6#,YN60,65

 2
46304C - PIN(FOR PARKING BRAKE EQUALIZER)
90240-08040

LN60,61,65,RN6#,YN6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35260

YN60,62..LHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35280

LN60,YN60..SR5

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028

LN6#,RN61,YN6#

L=21.5

 2
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051

LN60,61,65,RN6#,YN6#

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LN60,61,65,RN6#,YN6#

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30030

LN60,61,65,RN6#,YN6#

 2
46469 - LEVER, CABLE GUIDE SUPPORT
46469-35020

LN60,61,65,RN6#,YN6#

 1
46471 - PULLEY, WIRE
46471-20010

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
46473 - BRACKET, PULLEY
46473-35020

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 1
46479 - LEVER, CABLE GUIDE SAPPORT, NO.2
46479-35010

LN60,61,65,RN6#,YN6#

 1
Common parts
90109-08102
90179-08123
90179-08146
90206-08016
90461-12331
90461-12773
90468-06063
90468-08001
90468-14004
90949-01129
90949-01218
91611-60614
91611-60816
91611-60818
91616-40820
91651-60618
94110-40600
94110-40800
95381-02015
95381-02020
96160-00900
