YN57R-PRQ3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN56,YN57,58..4FC

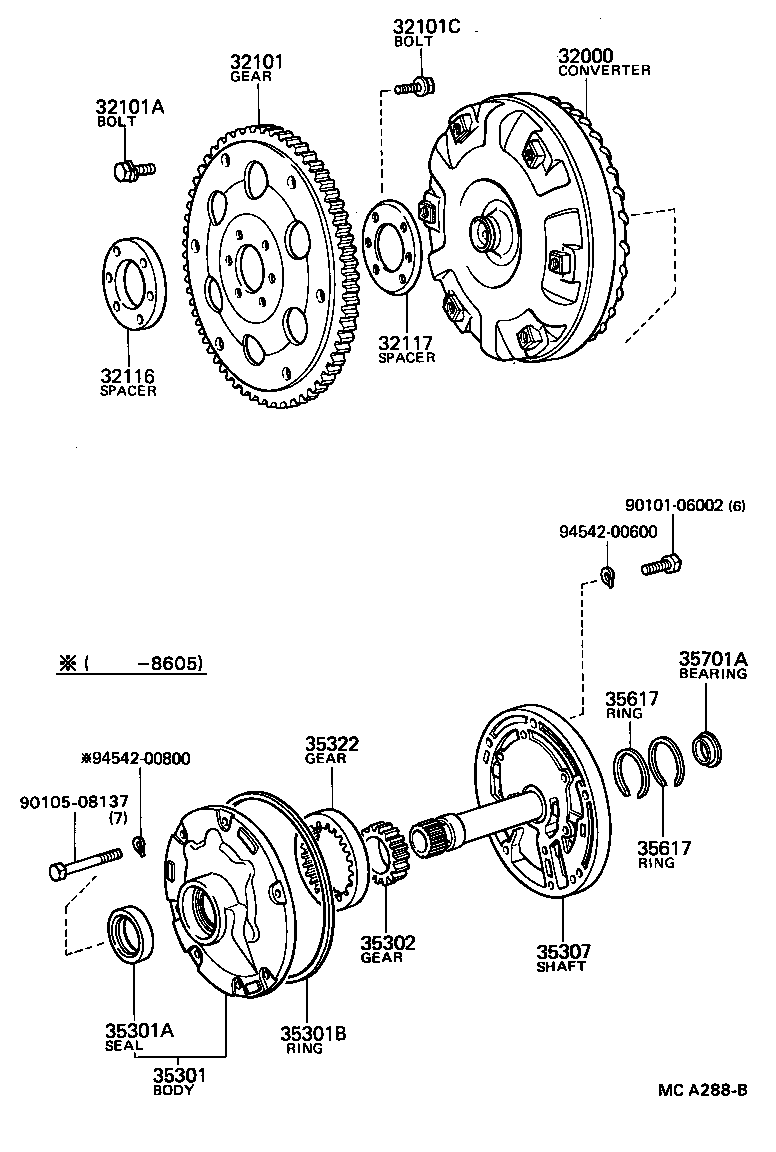

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35302 35307 35322 35617 35617 35701A 9010106002 9010508137 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-14090

YN57..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-28010

YN57,58,63..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-08107

LN56,YN57..4FC

*8-1.25PX12-8.4,GREEN

 1
91611-60812

LN56,YN57..4FC

*8-1.25PX12-7,YELLOW

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10046

YN57,58,63..4FC

*10-1.25PX23-15.5

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-28010

YN57,58,63..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20030

YN57,58,63..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

LN56,YN57,58..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

LN56,YN57..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

LN56,YN57,58..4FC

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

LN56,YN57,58..4FC

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30022

LN56,YN57..4FC

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

LN56,YN57,58..4FC

T=15.286-15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

LN56,YN57,58..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

LN56,YN57,58..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

LN56,YN57,58..4FC

 1
Common parts
90101-06002
90105-08137
94542-00600
94542-00800
