YN57R-PRQ3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1987
Engine 3Y 3YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )1Y#,2Y#,3Y,4Y#

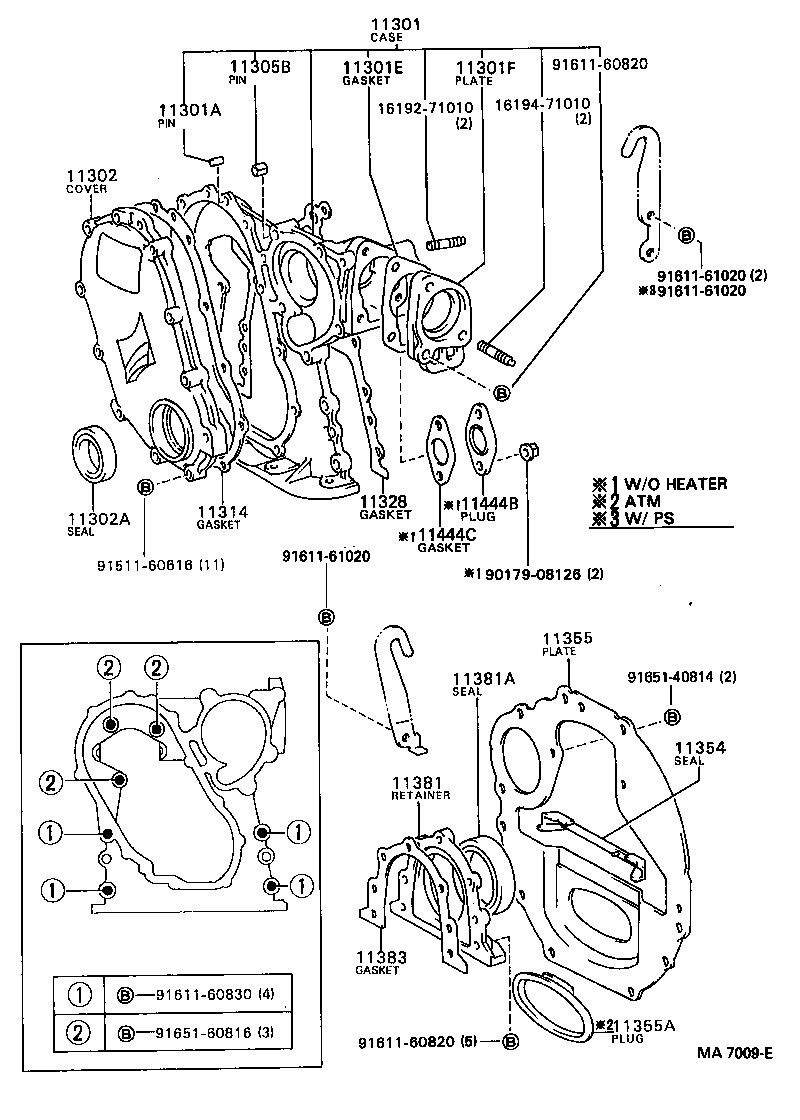

Click highlighted areas on diagram

diagram 11301 11301A 11301E 11301F 11302 11302A 11305B 11314 11328 11354 11355 11355A 11381 11381A 11383 11444B 11444C 1619271010 1619471010 9017908126 9151160616 9161160820 9161160820 9161160830 9161161020 9161161020 9161161020 9165140814 9165160816
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06001

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

L=14,OD=6

 2
11301E - GASKET, THERMOSTAT GUIDE
16119-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11301F - PLATE, WATER PUMP THERMOSTAT GUIDE
16128-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-42007

1Y#,2Y,3Y,4Y#..YN5#,6#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
16159-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11329-71010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-71010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11355 - PLATE, REAR END
11355-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4H,5F

 1
11355-71020

3Y..YN57..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01160

3Y..YN57..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11381A - SEAL, ENGINE REAR OIL
90311-80003

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
Common parts
16192-71010
16194-71010
90179-08126
91511-60616
91611-60820
91611-60830
91611-61020
91651-40814
91651-60816

(8308-9508)L,2L

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11355A 11381 11381A 11383 11384 11391 11492A 9010508175 9010906017 9021008019 9048007001 9095001312 9161140814 9161140828 9161160840 91611G0830 91611G1020 9671119015
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
16159-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-71010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11355 - PLATE, REAR END
11355-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4H,5F

 1
11355-71020

3Y..YN57..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01160

3Y..YN57..4FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-71010

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11381A - SEAL, ENGINE REAR OIL
90311-80003

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
Common parts
90105-08175
90109-06017
90210-08019
90480-07001
90950-01312
91611-40814
91611-40828
91611-60840
91611-G0830
91611-G1020
96711-19015
