YN57R-MRQ (1983)
Toyota Hilux

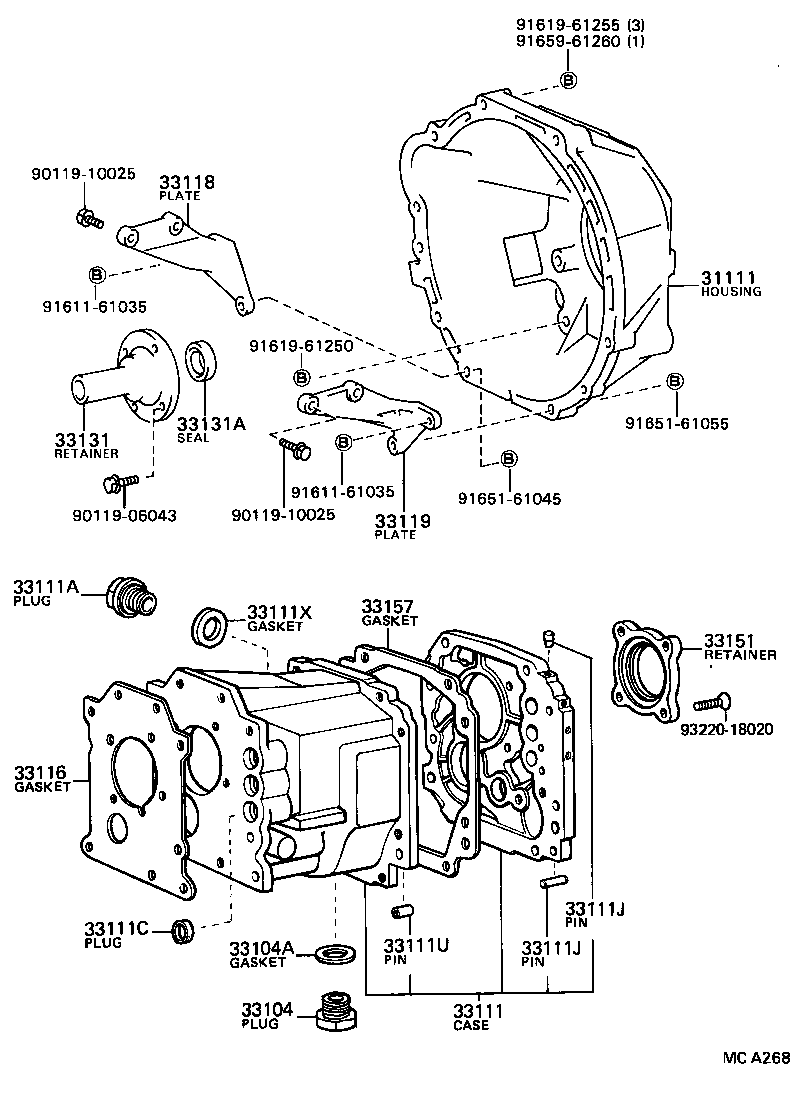

(8308-8508)YN57..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28010 |
YN57..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20011 |
YN57..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-20044 |
YN57..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90334-06017 |
YN57..5F L=11,OD=6 |
1 | ||
| 90250-12195 |
YN57..5F L=35,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90334-06017 |
YN57..5F L=11,OD=6 |
1 | ||
| 90250-12195 |
YN57..5F L=35,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
YN57..5F L=12,OD=13 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 90430-18008 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 33116 - GASKET, MANUAL TRANSMISSION CASE | ||||
| 33132-20040 |
YN57..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-31010 |
YN57..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN5#,6#,YN56,57,6#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-20010 |
YN57..5F |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-20020 |
YN57..5F |
1 | ||
| Common parts | ||||
| 90119-06043 | ||||
| 90119-10025 | ||||
| 91611-61035 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61045 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||
| 93220-18020 | ||||
(8308-8508)YN57..4F ; (8308-8508)YN52,56,6# ; (8508- )RN67,YN51,52,56,57,58,6#..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-28010 |
YN57..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20011 |
YN57..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20011 |
YN57..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-20044 |
YN57..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90334-06017 |
YN57..5F L=11,OD=6 |
1 | ||
| 90250-12195 |
YN57..5F L=35,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90334-06017 |
YN57..5F L=11,OD=6 |
1 | ||
| 90250-12195 |
YN57..5F L=35,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
YN57..5F L=12,OD=13 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 90430-18007 |
LN5#,6#,YN5#,6#..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-31010 |
YN57..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LN5#,6#,YN56,57,6#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-20010 |
YN57..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10025 | ||||
| 90119-10263 | ||||
| 90119-12168 | ||||
| 90149-80002 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
| 91651-61045 | ||||
| 91659-61260 | ||||
