YN57L-MDPV (1985)

Toyota Hilux

Production Aug 1985 - Aug 1988
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9201)LN5#,RN5#,YN50,52,55,57..LHD..GEN,ME

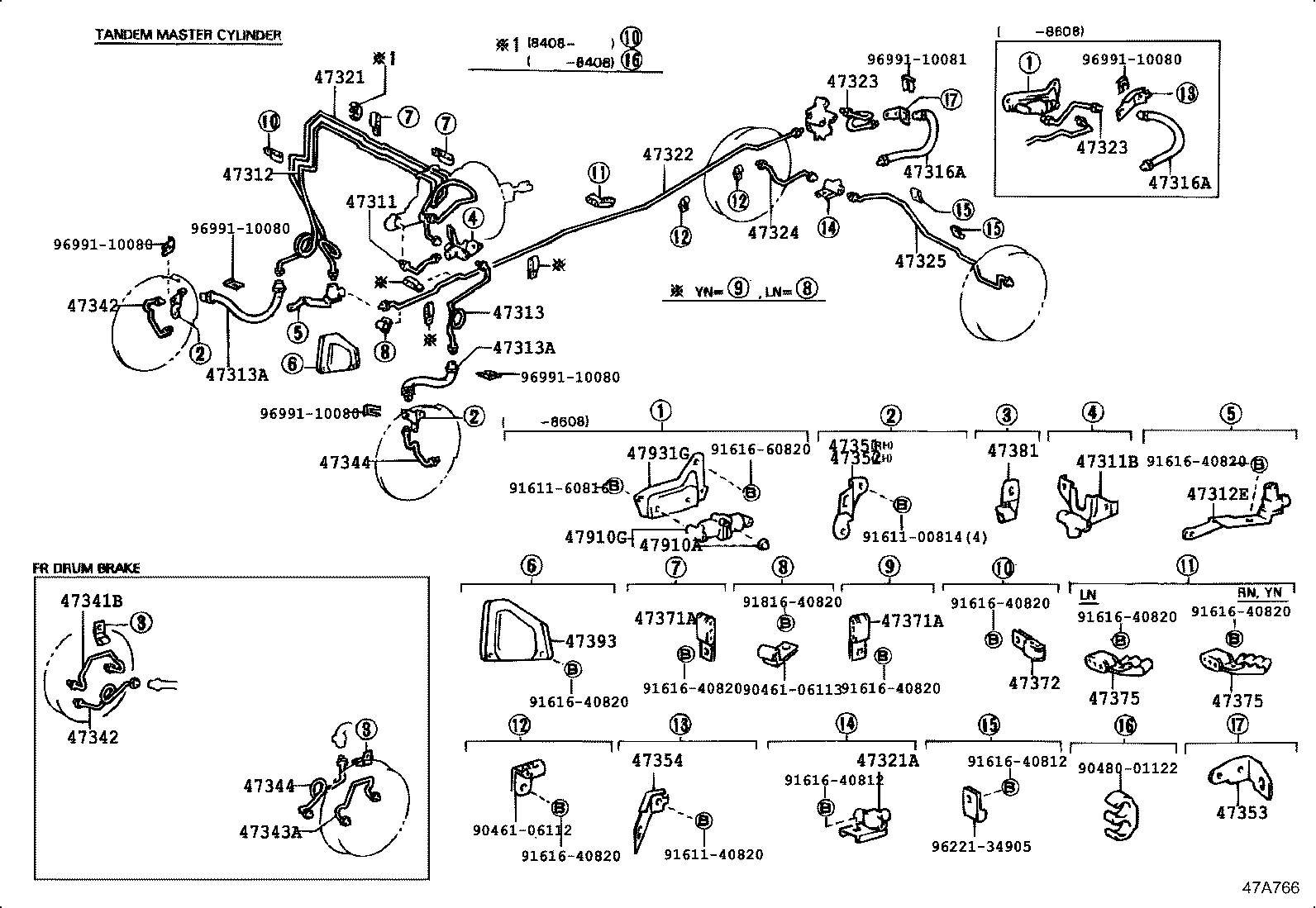

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47316A 47316A 47321 47321A 47322 47323 47323 47324 47325 47341B 47342 47342 47343A 47344 47344 47351 47352 47353 47354 47371A 47371A 47372 47375 47375 47381 47393 47910A 47910G 47931G 9046106112 9046106113 9048001122 9161100814 9161140820 9161160816 9161640812 9161640812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161660820 9181640820 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080 9699110081
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35330

YN57..DLX,STD

TANDEM MASTER CYLINDER

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

YN57..DLX,STD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35410

LN5#,YN50,52,55,57..LHD..(GEN,ME)

W/TANDEM MASTER CYLINDER

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10108

LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME

W/TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35290

LN5#,YN50,52,55,56,57..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

YN57..DLX,STD

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

YN57..DLX,STD

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LN5#,YN5#

 1
90947-02488

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LN5#,YN5#

 1
90947-02488

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35220

LN5#,YN50,52,55,56,57..LHD

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10152

LN5#,YN5#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35090

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35090

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35060

YN57..DLX,STD

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35070

YN57..DLX,STD

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47342-35020

LN50,55,YN50,52,55,57..GEN,ME

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35080

LN5#,YN50,52,55,57..GEN,ME

FR DRUM BRAKE

 1
47341-35090

LN5#,RN5#,YN5#

FR DISC BRAKE

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35080

LN5#,YN50,52,55,57..GEN,ME

FR DRUM BRAKE

 1
47341-35090

LN5#,RN5#,YN5#

FR DISC BRAKE

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47342-35020

LN50,55,YN50,52,55,57..GEN,ME

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35080

LN5#,YN50,52,55,57..GEN,ME

FR DRUM BRAKE

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35080

LN5#,YN50,52,55,57..GEN,ME

FR DRUM BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35140

YN57..DLX,STD

FR DISC BRAKE

 1
47351-35100

LN50,55,YN50,52,55,57..GEN,ME

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35120

YN57..DLX,STD

FR DISC BRAKE

 1
47352-35100

LN50,55,YN50,52,55,57..GEN,ME

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35130

YN57..DLX,STD

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-35070

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD

DASH PANEL SIDE

 2
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD

DASH PANEL SIDE

 2
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47382-35010

LN50,55,YN50,52,55,57..GEN,ME

LH

 1
47381-35020

LN50,55,YN50,52,55,57..GEN,ME

RH

 1
47910A - CAP, BLEEDER PLUG
31478-30010

LN5#,6#,RN5#,6#,YN5#,6#

 1
47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING
47910-35060

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
47931G - BRACKET, DECELERATION SENSING VALVE
47931-35070

LN5#,RN5#,YN50,52,55,57..GEN,ME

 1
Common parts
90461-06112
90461-06113
90480-01122
91611-00814
91611-40820
91611-60816
91616-40812
91616-40820
91616-60820
91816-40820
96221-34905
96991-10080
96991-10081
