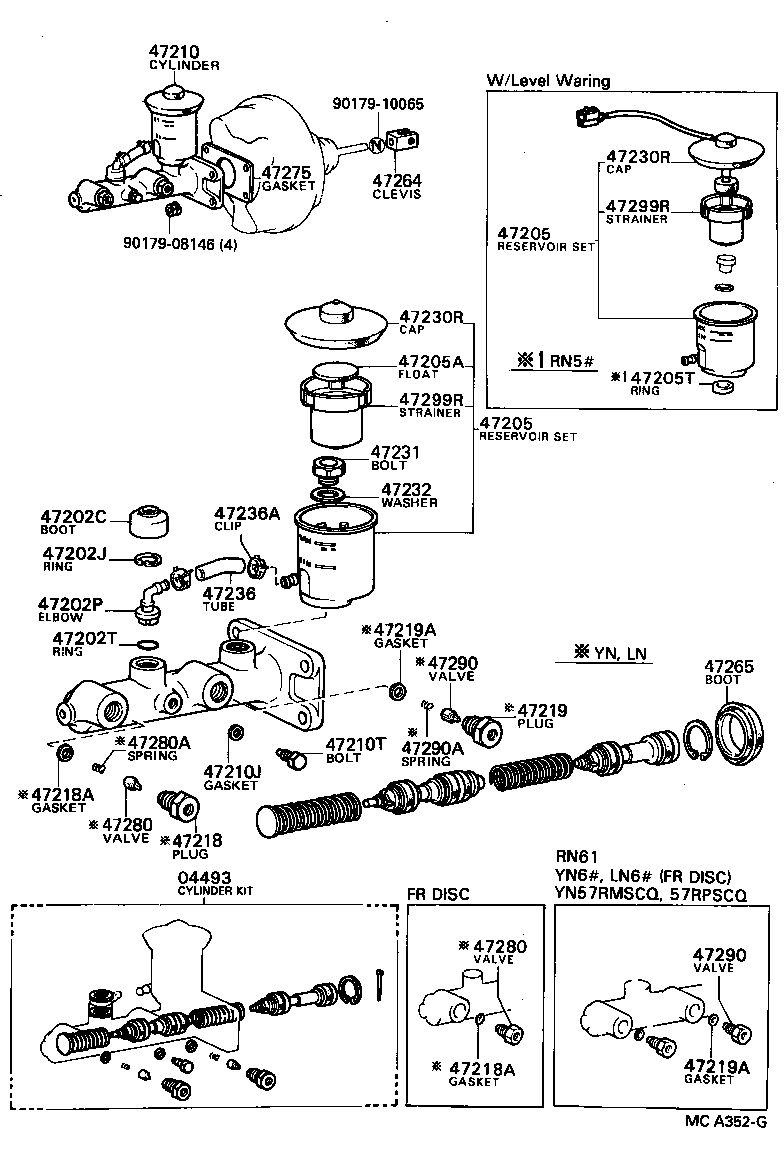

YN57L-MDPV (1985)
Toyota Hilux
(8308-9407) ; (9407- )LN5#,6#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-35150 |
YN57..DLX,STD FR DISC |
1 | ||
| 04493-35100 |
LN50,55,YN50,52,55,57..GEN,ME FR DRUM,TANDEM MASTER |
1 | ||
| 47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47265-20060 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 96151-02000 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90407-10003 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1) | ||||
| 90301-14001 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-14270 |
LN5#,YN5#..ARL,EUR,ME,SA W/LEVEL WARNING |
1 | ||
| 47202-35050 |
LN50,55,YN50,52,55,57..GEN,ME W/O LEVEL WARNING,TANDEM M/C |
1 | ||
| 47202-14270 |
YN57..(DLX,STD)..(ARL,ME,SA) W/LEVEL WARNING |
1 | ||
| 47202-14270 |
YN57..DLX,STD W/LEVEL WARNING |
1 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-14270 |
LN5#,YN5#..ARL,EUR,ME,SA W/LEVEL WARNING |
1 | ||
| 47202-35050 |
LN50,55,YN50,52,55,57..GEN,ME W/O LEVEL WARNING,TANDEM M/C |
1 | ||
| 47202-14270 |
YN57..(DLX,STD)..(ARL,ME,SA) W/LEVEL WARNING |
1 | ||
| 47202-14270 |
YN57..DLX,STD W/LEVEL WARNING |
1 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
LN50,55,60,65,YN50,52,55,57,6#..GEN,ME |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-35310 |
LN50,55,YN50,52,55,57..GEN,ME FR DRUM,TANDEM,W/O WARNING |
1 | ||
| 47201-35300 |
YN50,52,55,57..ME FR DRUM,W/LEVEL WARNING |
1 | ||
| 47201-35380 |
LN5#,YN50,52,55,57..GEN,ME FR DISC,W/O LEVEL WARNING |
1 | ||
| 47201-35370 |
YN57..DLX,STD FR DISC,W/LEVEL WARNING |
1 | ||
| 47201-35370 |
YN57..DLX,STD FR DISC,W/LEVEL WARNING |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LN5#,6#,RN5#,6#,YN5#,6# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-30030 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
1 | ||
| 90430-09253 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F FR DISC BRAKE |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM BRAKE |
1 | ||
| 90430-09253 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F FR DISC BRAKE |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30030 |
YN57..DLX,STD |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
YN57..DLX,STD |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-11001 |
YN57..DLX,STD |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20030 |
LN50,55,6#,YN50,52,55,57,6#..GEN,ME W/O LEVEL WARNING,TANDEM M/C |
1 | ||
| 84460-12011 |
LN5#,6#,RN5#,YN5#,60,63,65,67..ARL,EUR,ME,SA W/LEVEL WARNING |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-20030 |
LN50,55,6#,YN50,52,55,57,6#..GEN,ME W/O LEVEL WARNING,TANDEM M/C |
1 | ||
| 84460-12011 |
LN5#,6#,RN5#,YN5#,60,63,65,67..ARL,EUR,ME,SA W/LEVEL WARNING |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47234-14010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-22010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
LN50,51,55,56,60,61,65,RN6#,YN5#,6# TANDEM MASTER |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-24010 |
YN57..DLX,STD |
1 | ||
| 47275-24010 |
YN57..DLX,STD TANDEM MASTER |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
LN5#,6#,YN5#,6# FR DISC BRAKE |
1 | ||
| 47281-30020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM,TANDEM MASTER |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-30030 |
LN5#,6#,YN5#,6# FR DISC BRAKE |
1 | ||
| 47281-30020 |
LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME) FR DRUM,TANDEM MASTER |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90504-05001 |
LN50,55,YN50,52,55,57..GEN,ME |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
YN57..DLX,STD |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-30020 |
YN57..DLX,STD |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90504-05001 |
YN57..DLX,STD |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-14010 |
LN5#,6#,RN5#,61,YN5#,6# TANDEM MASTER |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-14010 |
LN5#,6#,RN5#,61,YN5#,6# TANDEM MASTER |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
