YN57L-KRP (1985)
Toyota Hilux

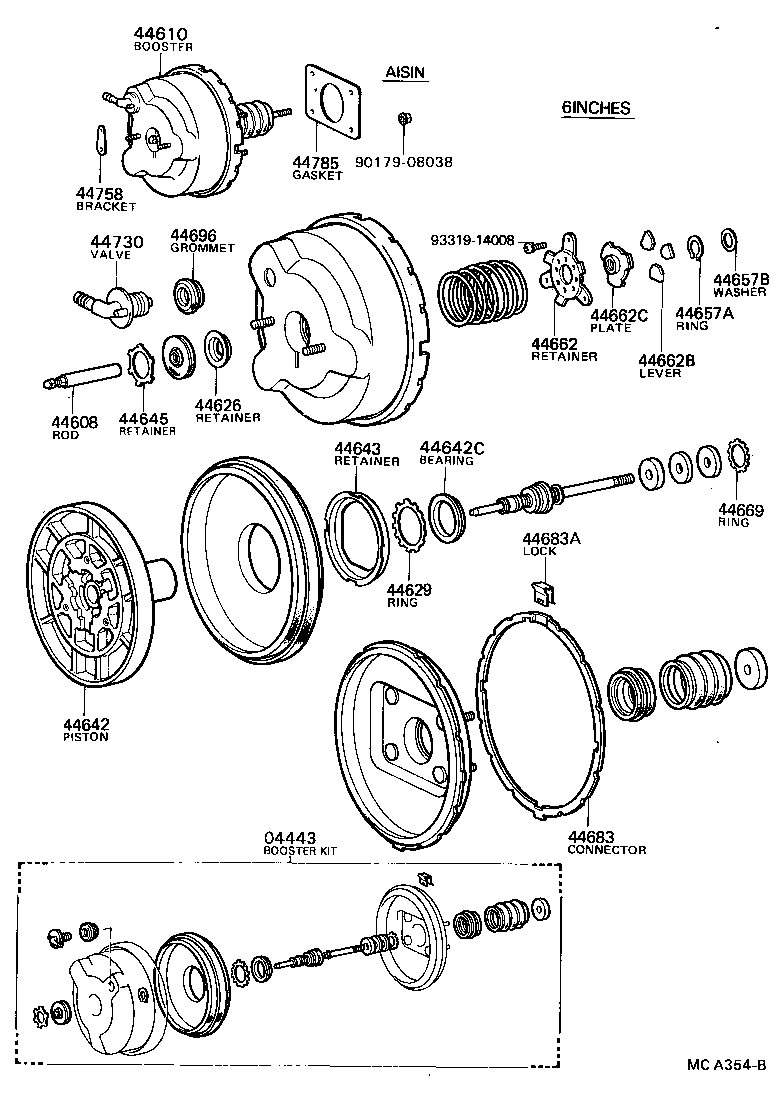

ILLUST NO. 1 OF 2(8308-8608)LN50,55,YN50,55,57..LHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35300 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35450 |
YN57..DLX,STD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35390 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35330 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44606-20460 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35590 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35470 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35550 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44629-30090 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-14190 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44642C - BEARING, BOOSTER PISTON | ||||
| 44623-30150 |
LN50,55,YN50,55,57..LHD..GEN |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
LN5#,YN50,55,57..LHD..GEN AISIN |
1 | ||
| 44645-22020 |
YN50,52,55,57..GEN,ME JKC |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
LN5#,YN50,55,57..LHD..GEN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-35100 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
LN5#,YN50,55,57..LHD..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
YN5#..LHD JKC |
1 | ||
| 90480-24439 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
YN5#..LHD JKC |
1 | ||
| 44730-20060 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35030 |
YN50,55,57..LHD..GEN 6INCHES |
1 | ||
| 44758-28020 |
YN50,52,55,56,57,6#..LHD 8,9INCHES |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
ILLUST NO. 1 OF 2(8308-9201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35300 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35450 |
YN57..DLX,STD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35390 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35330 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
YN50,52,55,57..GEN,ME |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44606-20460 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35590 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35470 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35550 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32020 |
YN50,52,55,57..GEN,ME |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
LN5#,YN50,55,57..LHD..GEN AISIN |
1 | ||
| 44645-22020 |
YN50,52,55,57..GEN,ME JKC |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-30480 |
YN50,52,55,57..GEN,ME FR DRUM BRAKE |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
YN5#..LHD JKC |
1 | ||
| 90480-24439 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
YN5#..LHD JKC |
1 | ||
| 44730-20060 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35030 |
YN50,55,57..LHD..GEN 6INCHES |
1 | ||
| 44758-28020 |
YN50,52,55,56,57,6#..LHD 8,9INCHES |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8308-9407) ; (9407- )LN5#,6#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35300 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35450 |
YN57..DLX,STD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35390 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 04443-35330 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44608-32020 |
YN50,52,55,57..GEN,ME JKC,8INCHES |
1 | ||
| 44606-20460 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35590 |
YN50,52,55,57..LHD JKC,8INCHES,FR DRUM |
1 | ||
| 44610-35470 |
YN50,52,55,57..LHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35550 |
YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44629-30090 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-14190 |
LN5#,YN50,55,57..LHD..GEN AISIN,6INCHES |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24517 |
YN5#..LHD JKC |
1 | ||
| 90480-24439 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
YN5#..LHD JKC |
1 | ||
| 44730-20060 |
YN50,52,55,57,6#..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35030 |
YN50,55,57..LHD..GEN 6INCHES |
1 | ||
| 44758-28020 |
YN50,52,55,56,57,6#..LHD 8,9INCHES |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
