YN56R-QRN (1991)

Toyota Hilux

Production Aug 1991 - Jul 1998
Engine 2Y
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )

Click highlighted areas on diagram

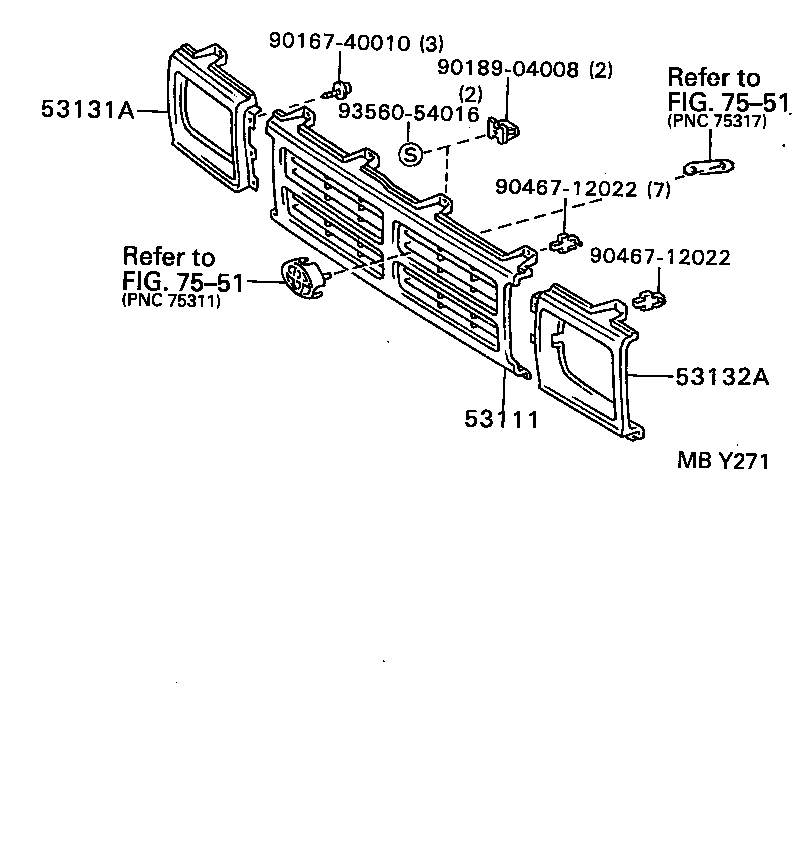

diagram 53111 53131A 53132A 7551 7551 9016740010 9018904008 9046712022 9046712022 9356054016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-89109

LN5#,YN50,55,56,57..STD

 1
53111-89127

YN5#

 1
53111-89128

LN5#,6#,RN58,67

 1
53131A - DOOR, HEADLAMP, RH
53131-89112

YN5#

 1
53131-89114

LN5#,6#,RN58,67

 1
53132A - DOOR, HEADLAMP, LH
53132-89111

YN5#

 1
53132-89113

LN5#,6#,RN58,67

 1
Common parts
90167-40010
90189-04008
90467-12022
93560-54016
Linked diagrams
7551
