YN56R-JRQ3 (1987)

Toyota Hilux

Production Aug 1987 - Aug 1988
Engine 2YC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9110)LN55,56,RN55,YN55,56,57,58 ; (9110-)LN5#,RN58,YN5#

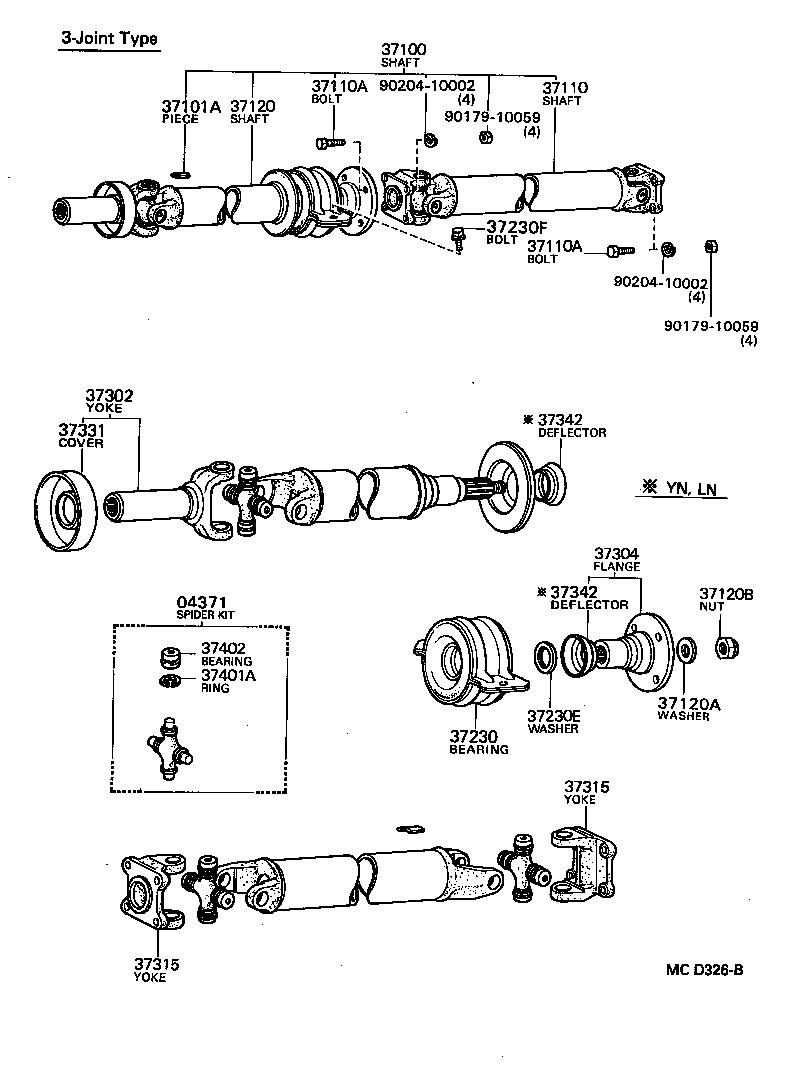

Click highlighted areas on diagram

diagram 04371 37100 37101A 37110 37110A 37110A 37120 37120A 37120B 37230 37230E 37230F 37302 37304 37315 37315 37331 37342 37342 37401A 37402 9017910059 9017910059 9020410002 9020410002
Part # Description Qty Price
04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04371-25010

LN50,51,55,56,YN5#

 3
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-35180

YN58..4FC..IV;LN55,56,YN55,56,57,58..MTM

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01031

LN5#,YN5#

25G,SPOT

 1
90937-01030

LN5#,YN5#

15G,SPOT

 1
90937-01005

LN5#,YN5#

30G,T=1.2,30G,SPOT

 1
90937-01029

LN5#,YN5#

5G,SPOT

 1
90937-01132

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

10G,L=20.7,10G,PROJECTION

 1
90937-01140

LN5#,YN5#

30G,L=62.2,30G,PROJECTION

 1
90937-01147

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

2G,T=2.0,2G,T=2.0

 1
90937-01003

LN5#,YN5#

8G,T=1.2,10G,SPOT

 1
90937-01149

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

6G,L=12.4,6G,T=2.0

 1
90937-01136

LN5#,6#,RN5#,YN5#,6#

20G,L=41.4,20G,PROJECTION

 1
90937-01148

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

4G,T=2.0,4G,T=2.0

 1
90937-01154

LN5#,6#,RN5#,YN5#,6#

18G,L=37.3,18G,PROJECTION

 1
90937-01150

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

8G,L=16.6,8G,T=2.0

 1
90937-01004

LN5#,YN5#

20G,T=1.2,20G,SPOT

 1
90937-01156

LN5#,6#,RN5#,YN5#,6#

24G,L=49.7,24G,PROJECTION

 1
90937-01152

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

14G,L=29.0,14G,PROJECTION

 1
90937-01153

LN5#,6#,RN5#,YN5#,6#

16G,L=33.2,16G,PROJECTION

 1
90937-01158

LN5#,6#,RN5#,YN5#,6#

28G,L=58.1,28G,PROJECTION

 1
90937-01155

LN5#,6#,RN5#,YN5#,6#

22G,L=45.6,22G,PROJECTION

 1
90937-01201

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

30G,T=4.5,L=27.4,30G

 1
90937-01157

LN5#,6#,RN5#,YN5#,6#

26G,L=53.9,26G,PROJECTION

 1
90937-01151

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

12G,L=24.9,12G,PROJECTION

 1
37110 - SHAFT ASSY, PROPELLER
37110-35230

LN55,56,YN55,56,57,58

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

RN58..SR5;LN50,51,55,56,RN50,55,YN5#

*10-1.00PX27-13

 8
37110A - BOLT (FOR PROPELLER SHAFT)
90105-10085

RN58..SR5;LN50,51,55,56,RN50,55,YN5#

*10-1.00PX27-13

 8
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-35140

YN58..4FC..IV;LN55,56,YN55,56,57,58..MTM

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-20005

YN58..4F;YN58..SR5,STD;LN55,56,YN55,56,57..4F,4FC,4H,5F

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-20001

LN55,56,YN55,56,57..ARL,EUR,GEN,ME

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-35050

LN55,56,RN55,YN55,56,57,58

 1
37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING)
90201-28001

LN55,56,YN55,56,57..ARL,EUR,GEN,ME

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10049

RN58..SR5;LN50,51,55,56,RN50,55,YN5#

 2
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-35010

LN50,51,55,56,YN5#

 1
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-35050

LN55,56,YN55,56,57..ARL,EUR,GEN,ME

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN5#,YN5#

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35050

LN5#,YN5#

 2
37331 - COVER, SLIDING SHAFT DUST
37331-30010

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 1
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

YN58..4F;YN58..SR5,STD;LN55,56,YN55,56,57..4F,4FC,4H,5F

 2
37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342-30010

YN58..4F;YN58..SR5,STD;LN55,56,YN55,56,57..4F,4FC,4H,5F

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

LN50,51,55,56,YN5#

T=2.475-2.525,T=2.5

 12
90521-29070

LN50,51,55,56,YN5#

T=2.375-2.425,T=2.4

 12
90521-29071

LN50,51,55,56,YN5#

T=2.425-2.475,T=2.45

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-25020

RN5#,YN5#

 12
Common parts
90179-10059
90204-10002
