YN56R-JRQ (1987)

Toyota Hilux

Production Aug 1987 - Aug 1988
Engine 2YC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8903)1YC,2YC,4YC ; (8308- )3Y..YN57,60,65..ARL

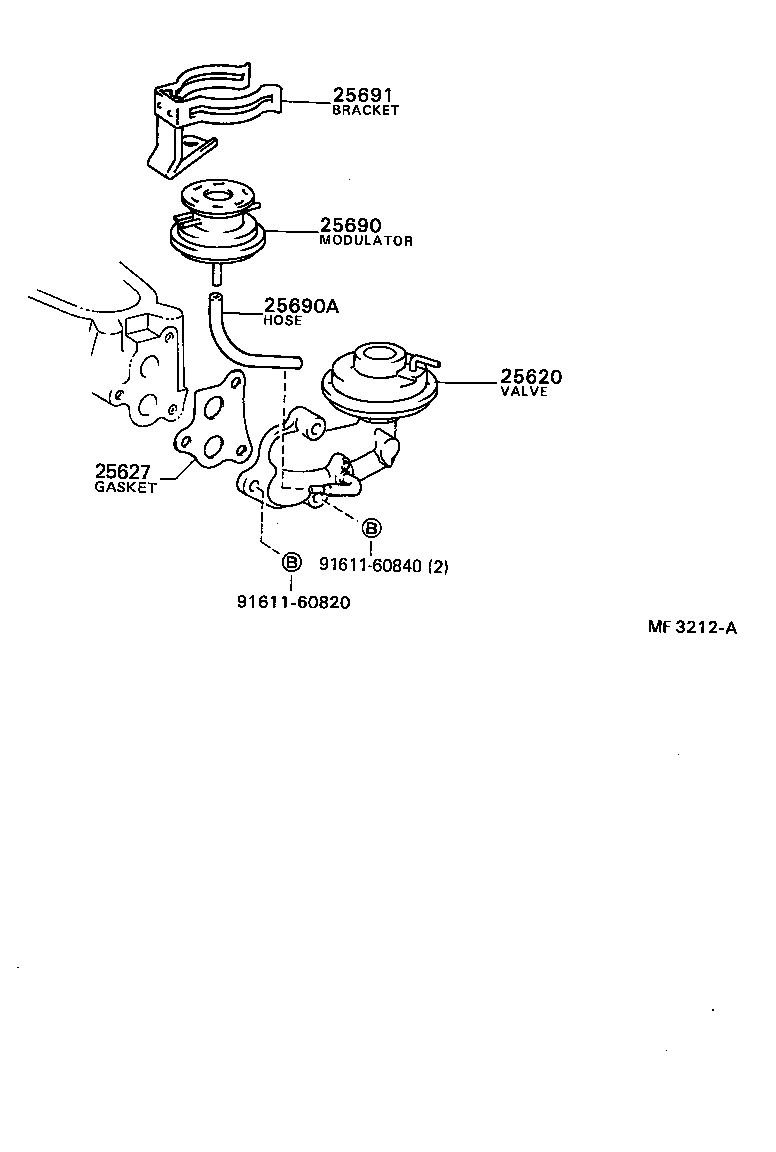

Click highlighted areas on diagram

diagram 25620 25627 25690 25690A 25691 9161160820 9161160840
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-71081

2YC..YN56

 1
Common parts
91611-60820
91611-60840
