YN56R-JRN (1986)
Toyota Hilux
Production
Aug 1986
-
Aug 1991
Engine
2Y
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

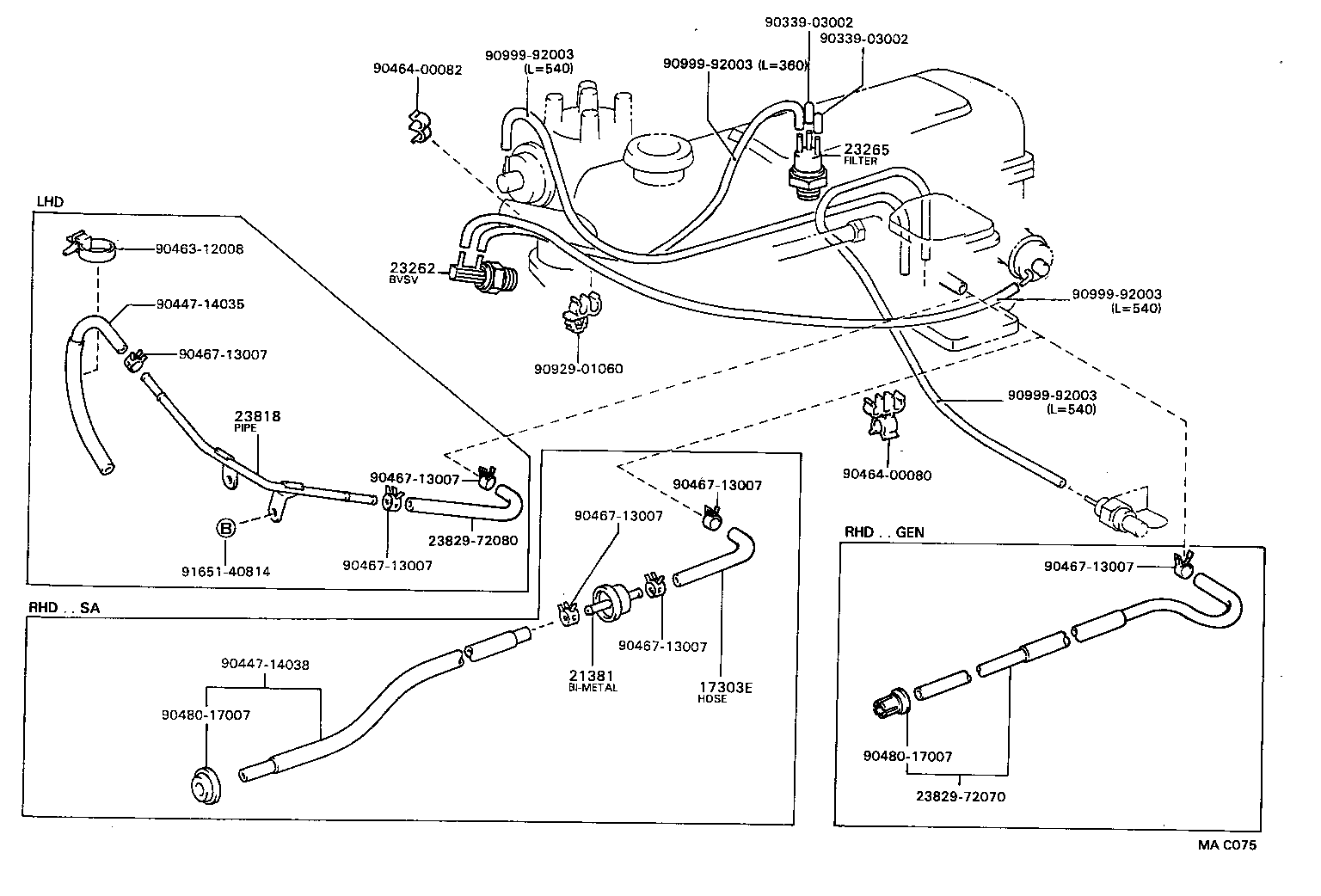

(8608-8708)3Y,4Y..YN57,6#..ARL ; (8608-8808)1Y,2Y,3Y..YN50,51,55,56,57..GEN,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y..YN51,56 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
(8808-8912)1Y,2Y,3Y ; (8912- )1Y,3Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y..YN51,56 |
1 | ||
| Common parts | ||||
| 23829-72070 | ||||
| 23829-72080 | ||||
| 90339-03002 | ||||
| 90447-14035 | ||||
| 90447-14038 | ||||
| 90463-12008 | ||||
| 90464-00080 | ||||
| 90464-00082 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||

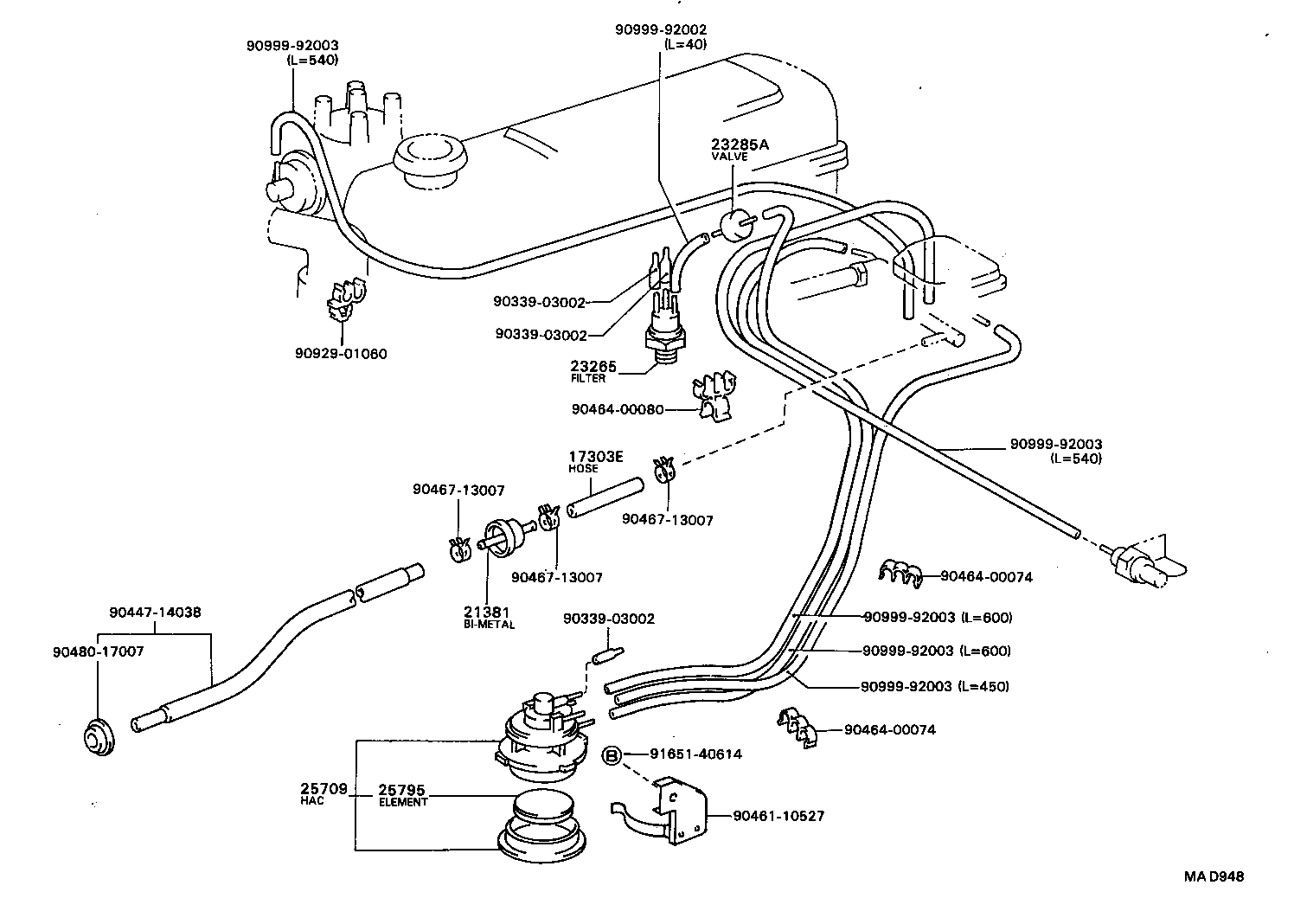

(8912-9108)2Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2Y..YN51,56 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10038 |
2Y,4Y..YN51,56,58,67..SA |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90447-14038 | ||||
| 90461-10527 | ||||
| 90464-00074 | ||||
| 90464-00080 | ||||
| 90467-13007 | ||||
| 90480-17007 | ||||
| 90929-01060 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40614 | ||||
