YN56L-MRW3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1986
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RCB

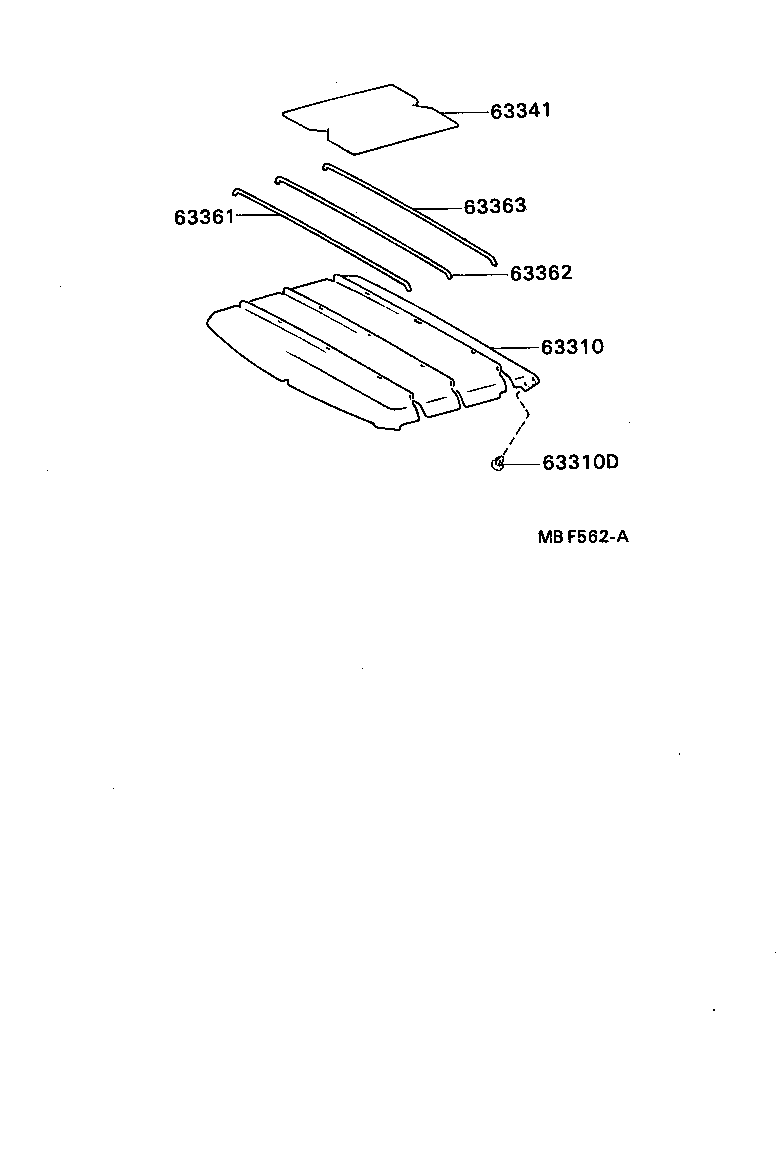

Click highlighted areas on diagram

diagram 63310 63310D 63341 63361 63362 63363
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-8910503

LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB

LIGHT GRAY,GRAY,TRIM1#,8#

 1
63311-8910508

LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB

IVORY,IVORY,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-1004408

YN57..STD;YN57..TW..ME;YN65,67..DLX,STD;YN57..RCB..(DLX,SR5);LN5#,60,YN56,62..SR5,STD;LN61,65,RN5#,YN50,52,55,60,63

IVORY,IVORY,TRIM4#

 4
90467-1004423

YN57..STD;YN57..TW..ME;YN65,67..DLX,STD;YN57..RCB..(DLX,SR5);LN5#,60,YN56,62..SR5,STD;LN61,65,RN5#,YN50,52,55,60,63

LIGHT GRAY,GRAY,TRIM1#,8#

 4
90467-1004403

LN5#,6#,YN5#,6#..RCB..(ARL,EUR,GEN,ME)

LIGHT GRAY,GRAY,TRIM1#,8#

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-89110

YN57..STD;YN57..TW..ME;YN50,52,55,60;YN65..DLX,STD;YN57..RCB..(DLX,SR5);LN5#,6#,YN56..SR5,STD

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63362-89101

LN5#,60,65,67,RN5#,67,YN50,52,55,56,57,58,60,62,65,67..RCB,XTR

L=1200

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-89101

LN5#,60,65,67,RN5#,67,YN50,52,55,56,57,58,60,62,65,67..RCB,XTR

L=1200

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63362-89101

LN5#,60,65,67,RN5#,67,YN50,52,55,56,57,58,60,62,65,67..RCB

L=1200

 1
