YN56L-MRW3 (1983)

Toyota Hilux

Production Aug 1983 - Aug 1986
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9508)L,2L

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-71021

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
12261-54010

L,2L..LN5#,6#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

L,2L..LN5#,6#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

L,2L..LN5#,6#

 2

(8308- )1Y#,2Y#,3Y,4Y,4YC

Click highlighted areas on diagram

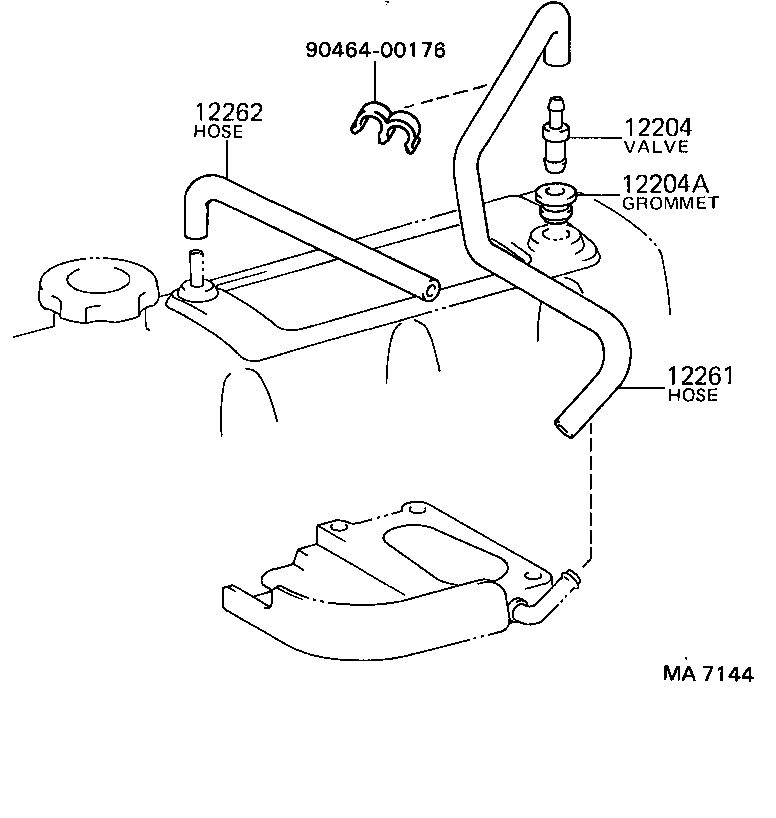

diagram 12204 12204A 12261 12262 9046400176
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-71010

1Y#,2Y,3Y,4Y..YN5#,6#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1Y#,2Y#,3Y,4Y#..YN5#,6#

 1
12261 - HOSE, VENTILATION
12261-71021

4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F

 1
12261-54010

L,2L..LN5#,6#

 1
12262 - HOSE, VENTILATION, NO.2
12262-71020

1Y,2Y,3Y,4Y..YN50,55,56,57,62,65,67..EUR,GEN

 1
Common parts
90464-00176
