YN56L-MRW (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8403-8408)SR5..ME ; (8408- )GEN,ME ; (8708-8808)LN56,65,YN56,67..LHD..EUR

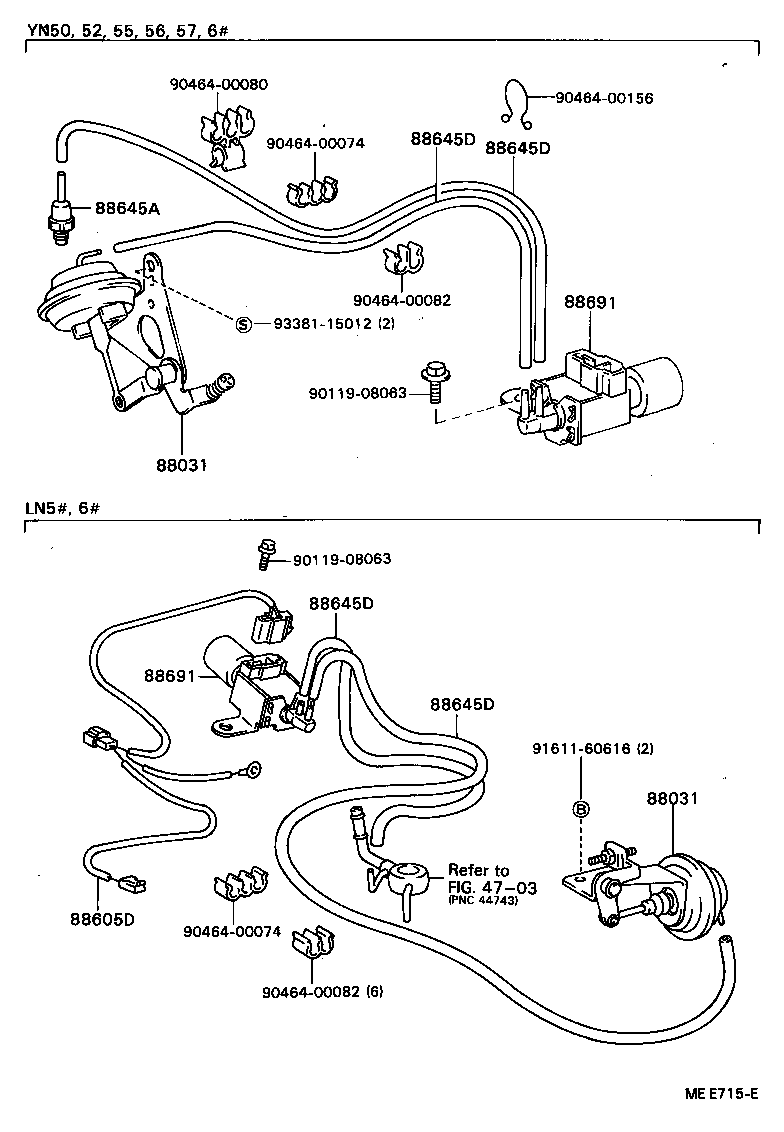

Click highlighted areas on diagram

diagram 4703 88031 88031 88605D 88645A 88645D 88645D 88645D 88645D 88691 88691 9011908063 9011908063 9046400074 9046400074 9046400080 9046400082 9046400082 9046400156 9161160616 9338115012
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
21099-71030

YN56,67..LHD..EUR

 1
88031 - ACTUATOR SET, IDLE-UP
21099-71030

YN56,67..LHD..EUR

 1
Common parts
90119-08063
90464-00074
90464-00080
90464-00082
90464-00156
91611-60616
93381-15012
Linked diagrams
4703
