YN56L-MRW (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN5#,RN5#,YN5#

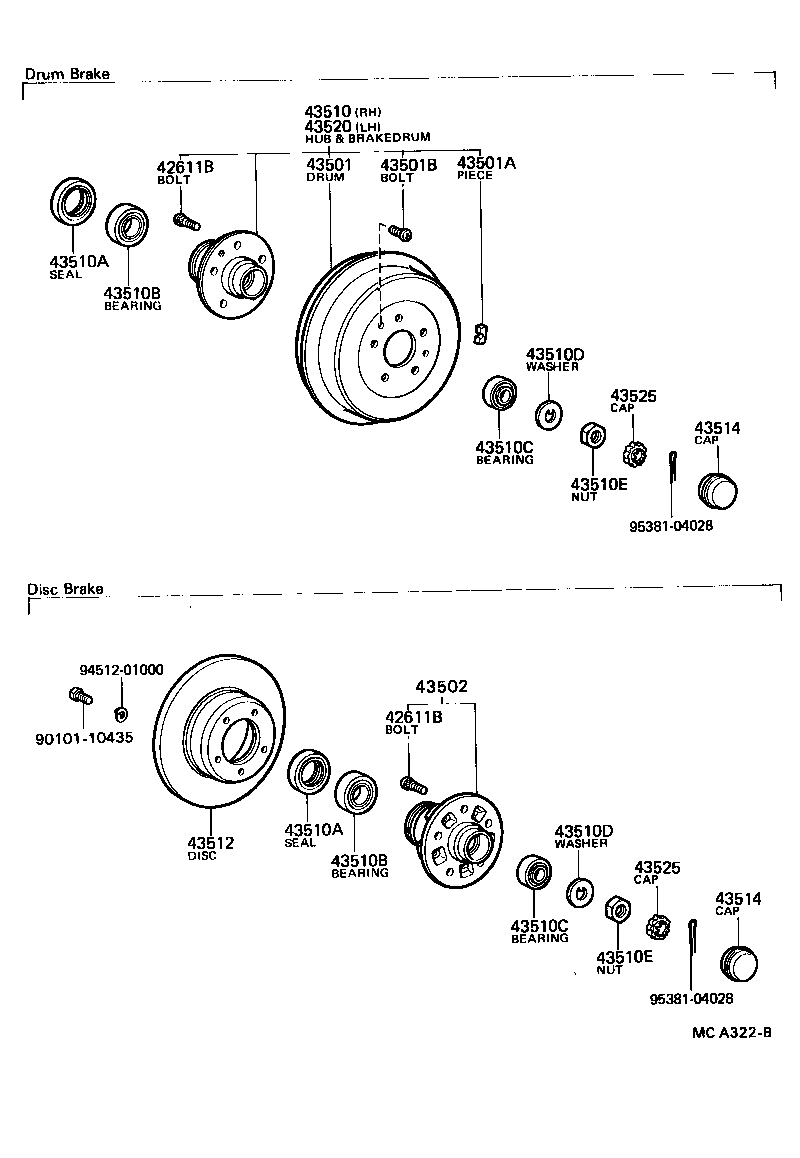

Click highlighted areas on diagram

diagram 42611B 42611B 43501 43501A 43501B 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43514 43514 43520 43525 43525 9010110435 9451201000 9538104028 9538104028
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02035

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

FR DISC BRAKE

 10
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02035

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

FR DISC BRAKE

 10
43502 - HUB SUB-ASSY, FRONT AXLE
43502-35020

RN58..SR5;LN50,51,55,56,RN50,55,YN5#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34039

LN5#,YN5#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34039

LN5#,YN5#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21065

LN5#,RN5#,YN5#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21065

LN5#,RN5#,YN5#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43512 - DISC, FRONT
43512-26040

YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F

 2
Common parts
90101-10435
94512-01000
95381-04028
