YN56L-MRW (1983)
Toyota Hilux
(8308- )1Y#,2Y,3Y,4Y

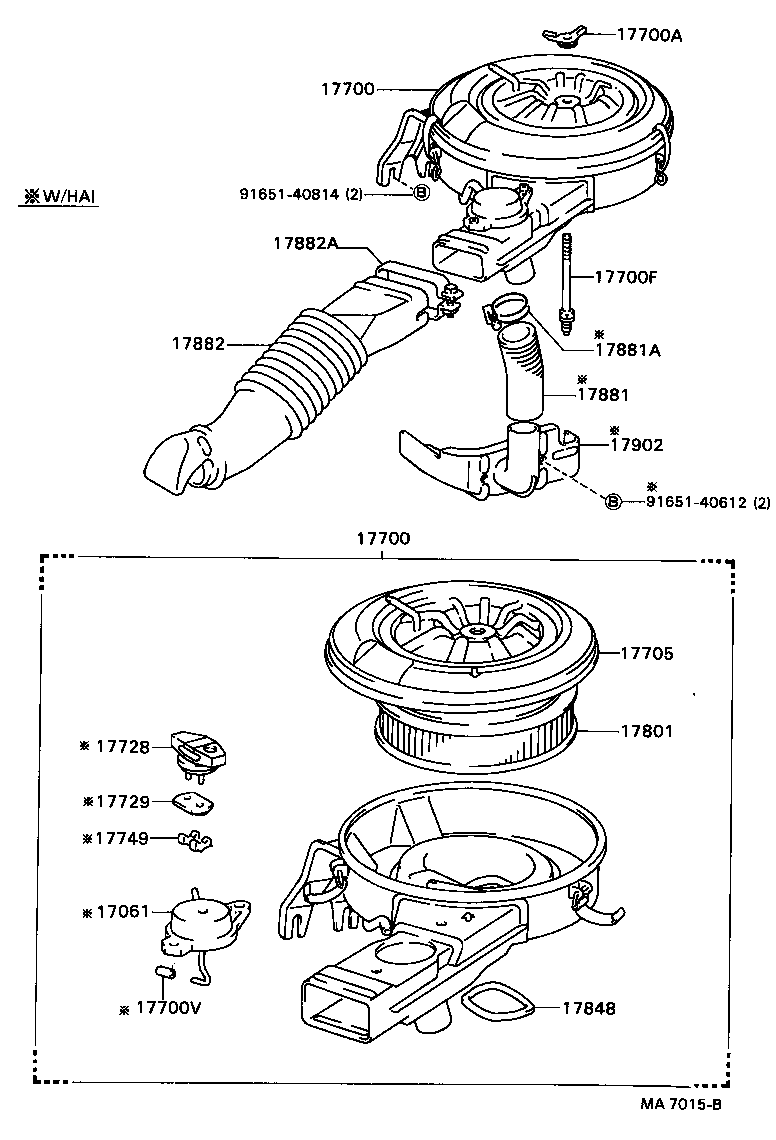

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-72010 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71050 |
2Y..YN56 |
1 | ||
| 17700-71041 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-54180 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71050 |
2Y..YN56 |
1 | ||
| 17700-71041 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-54180 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17700V - BUSH(FOR AIR CLEANER) | ||||
| 90386-03001 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54032 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17705-71020 |
1Y#,2Y,3Y..YN50,55,56,57..ARL,EUR,GEN |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-34010 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17801-54030 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54190 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17881-74040 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-34071 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-74040 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 96111-10690 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-89101 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01032 |
1Y,2Y,3Y,4Y..YN50,55,56,57,67..EUR,GEN |
1 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17895-71010 |
2Y,3Y,4Y..YN56,65,67..EUR |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
ILLUST NO. 1 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71050 |
2Y..YN56 |
1 | ||
| 17700-71041 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-54180 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-71050 |
2Y..YN56 |
1 | ||
| 17700-71041 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17700-54180 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54032 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17705-71020 |
1Y#,2Y,3Y..YN50,55,56,57..ARL,EUR,GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17801-54030 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34060 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17801-54030 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-54010 |
L,2L..LN55,56,65..EUR |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-89104 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54190 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17881-74040 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-34071 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-74040 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54190 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17881-74040 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-34071 |
2Y,3Y..YN56,65..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881-74040 |
2Y,4Y..YN56,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 96111-10690 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 96111-10690 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 96111-10690 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2Y,3Y,4Y..YN56,65,67..EUR W(HOT AIR INTAKE) |
1 | ||
| 96111-10690 |
L,2L..LN55,56,65..EUR |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-89101 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17880-89101 |
L,2L..LN55,56,65..EUR |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01032 |
1Y,2Y,3Y,4Y..YN50,55,56,57,67..EUR,GEN |
1 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01032 |
1Y,2Y,3Y,4Y..YN50,55,56,57,67..EUR,GEN |
1 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 66323-89104 | ||||
| 90119-06072 | ||||
| 90119-06098 | ||||
| 90179-06060 | ||||
| 90201-07470 | ||||
| 90950-01027 | ||||
