YN56L-MDCW (1986)

Toyota Hilux

Production Aug 1986 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9201)LN55,56,YN56,67..LHD..EUR

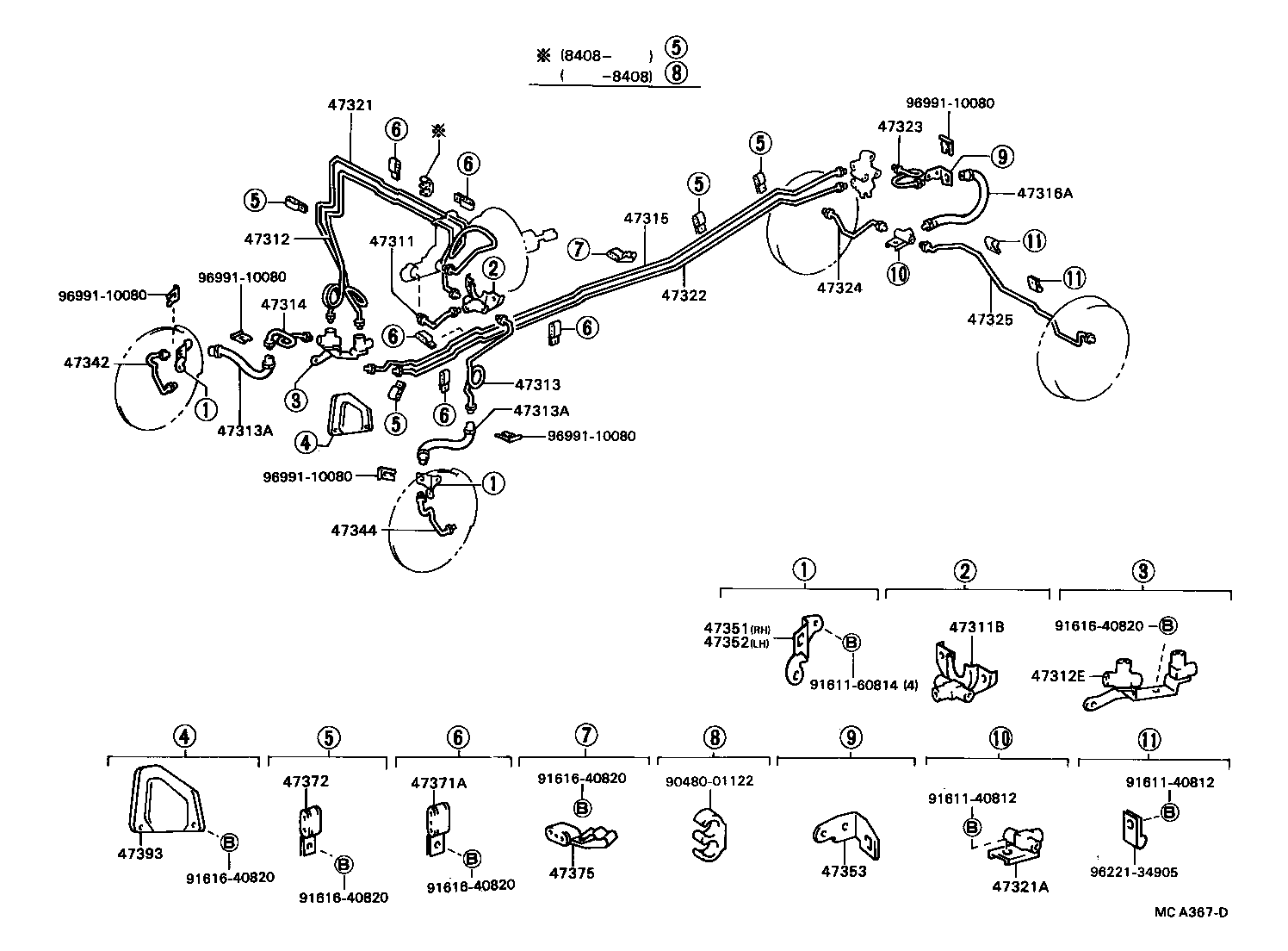

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321A 47322 47323 47324 47325 47342 47344 47351 47352 47353 47371A 47372 47375 47393 9048001122 9161140812 9161140812 9161160814 9161640820 9161640820 9161640820 9161640820 9161640820 9622134905 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35330

LN5#,YN50,52,55,56

TANDEM MASTER CYLINDER

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

LN5#,6#,RN5#,YN50,52,55,56,6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35390

LN55,56,YN56..LHD..EUR

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90415-10006

YN57..SR5..SA;LN5#,YN50,55,56,57..(DLX,STD)..(ARL,EUR,SA)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35290

LN5#,YN50,52,55,56,57..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

LN5#,RN5#,YN50,52,55,56

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02446

LN5#,RN5#,YN50,52,55,56

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35170

LN5#,YN50,55,56..ARL,EUR,GEN,SA

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34305

LN5#,YN5#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35220

LN5#,YN50,52,55,56,57..LHD

 1
47321A - WAY(FOR REAR BRAKE TUBE)
90413-10152

LN5#,YN5#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35070

LN5#,YN50,55,56..ARL,EUR,SA

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35060

LN5#,YN50,52,55,56

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35070

LN5#,YN50,52,55,56

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35090

LN5#,RN5#,YN5#

FR DISC BRAKE

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35140

LN5#,RN5#,YN50,51,52,55,56,58

FR DISC BRAKE

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35120

LN5#,RN5#,YN50,51,52,55,56,58

FR DISC BRAKE

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35130

LN5#,YN50,55,56..ARL,EUR,SA

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

LN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD

DASH PANEL SIDE

 2
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35010

LN55,56,65,YN56,65,67..LHD..EUR

 5
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35050

LN50,51,55,56..RCB,XTR

 1
47375-35010

YN58..4F;YN58..T1..(SR5,STD);RN50,55,YN50,51,52,55,56,57..(RCB,XTR)..(4F,4FC,4H,5F)

 1
Common parts
90480-01122
91611-40812
91611-60814
91616-40820
96221-34905
96991-10080
