YN55R-KR3 (1983)
Toyota Hilux

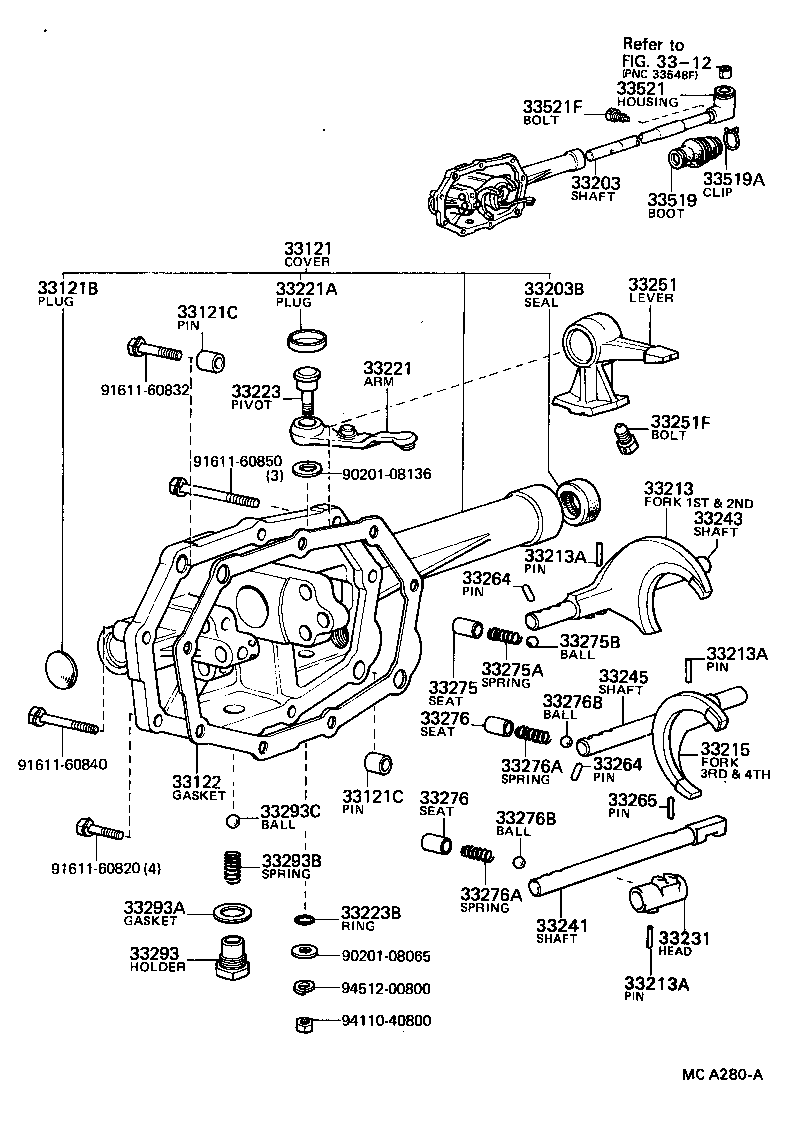

(8308- )LN50,55,YN50,55..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-35010 |
LN50,55,YN50,55..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20110 |
LN50,55,YN50,55..4F |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90253-11001 |
LN50,55,YN50,55..4F L=11,OD=11 |
2 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90253-11001 |
LN50,55,YN50,55..4F L=11,OD=11 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-20010 |
LN50,55,YN50,55..4F |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
LN50,55,YN50,55..4F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-28010 |
LN50,55,YN50,55..4F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-26020 |
LN50,55,YN50,55..4F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-30010 |
LN50,55,YN50,55..4F |
1 | ||
| 33221A - PLUG, TIGHT(FOR REVERSE SHIFT ARM) | ||||
| 96411-12500 |
LN50,55,YN50,51,55,56..4F,4H |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-30011 |
LN50,55,YN50,55..4F |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 90301-08001 |
LN50,55,YN50,55..4F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
LN50,55,YN50,55..4F,4H |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-30040 |
LN50,55,YN50,55..4F |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
LN50,55,YN50,55..4F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
LN50,55,YN50,51,55,56..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN50,55,YN50,51,55,56..4F,4H |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LN50,55,YN50,51,55,56..4F,4H |
2 | ||
| 33293 - HOLDER, REVERSE RESTRICT BALL | ||||
| 33293-30010 |
LN50,55,YN50,55..4F |
1 | ||
| 33293A - GASKET (FOR REVERSE RESTRICT BALL HOLDER) | ||||
| 90430-18007 |
LN50,55,YN50,55..4F |
1 | ||
| 33293B - SPRING, COMPRESSION (FOR REVERSE RESTRICT BALL) | ||||
| 90501-16041 |
LN50,55,YN50,55..4F |
1 | ||
| 33293C - BALL (FOR REVERSE RESTRICT) | ||||
| 90360-10003 |
LN50,55,YN50,55..4F |
1 | ||
| 33519 - BOOT, CONTROL SHAFT DUST | ||||
| 33555-20010 |
LN50,55,YN50,55..4F |
1 | ||
| 33519A - CLIP (FOR CONTROL SHAFT DUST BOOT SET) | ||||
| 90467-17042 |
LN50,55,YN50,55..4F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 33218-35010 |
LN50,55,YN50,55..4F |
1 | ||
| Common parts | ||||
| 90201-08065 | ||||
| 90201-08136 | ||||
| 91611-60820 | ||||
| 91611-60832 | ||||
| 91611-60840 | ||||
| 91611-60850 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3312 | ||||

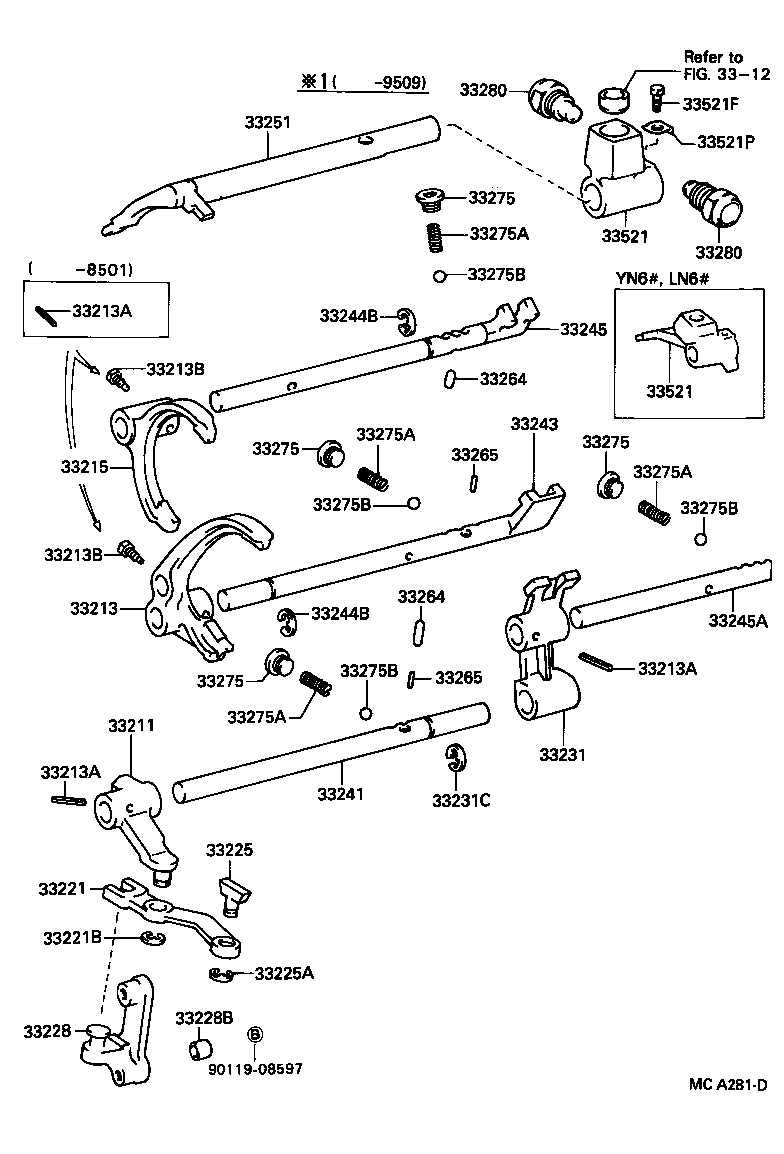

(8308- )LN51,56,60,65,RN50,55,YN52,57,58,60,65..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-28010 |
LN50,55,YN50,55..4F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-26020 |
LN50,55,YN50,55..4F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-30010 |
LN50,55,YN50,55..4F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
LN50,55,YN50,55..4F,4H |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-30040 |
LN50,55,YN50,55..4F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
LN50,55,YN50,51,55,56..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
LN50,55,YN50,51,55,56..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 33218-35010 |
LN50,55,YN50,55..4F |
1 | ||
| Common parts | ||||
| 90119-08597 | ||||
| Linked diagrams | ||||
| 3312 | ||||
(8308-8508)LN5#,6#,YN56,6#..5F ; (8508-8903)LN5#,6#,RN5#,YN51,52,56,57,58,6#..5F ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-28010 |
LN50,55,YN50,55..4F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-26020 |
LN50,55,YN50,55..4F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-30010 |
LN50,55,YN50,55..4F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26010 |
LN50,55,YN50,55..4F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
LN50,55,YN50,55..4F,4H |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-30040 |
LN50,55,YN50,55..4F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
LN50,55,YN50,51,55,56..4F,4H OD=6,L=16 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
LN50,55,YN50,51,55,56..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
LN50,55,YN50,51,55,56..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
LN50,55,YN50,55..4F |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
LN50,55,YN50,55..4F,4H L=15.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN50,52,55,57,6#..4F,4H |
5 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
LN50,55,YN50,55..4F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 33218-35010 |
LN50,55,YN50,55..4F |
1 | ||
| Common parts | ||||
| 90119-08597 | ||||
| Linked diagrams | ||||
| 3312 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
