YN55R-JPQ3 (1983)
Toyota Hilux
(8308- )1Y#,2Y,3Y,4Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

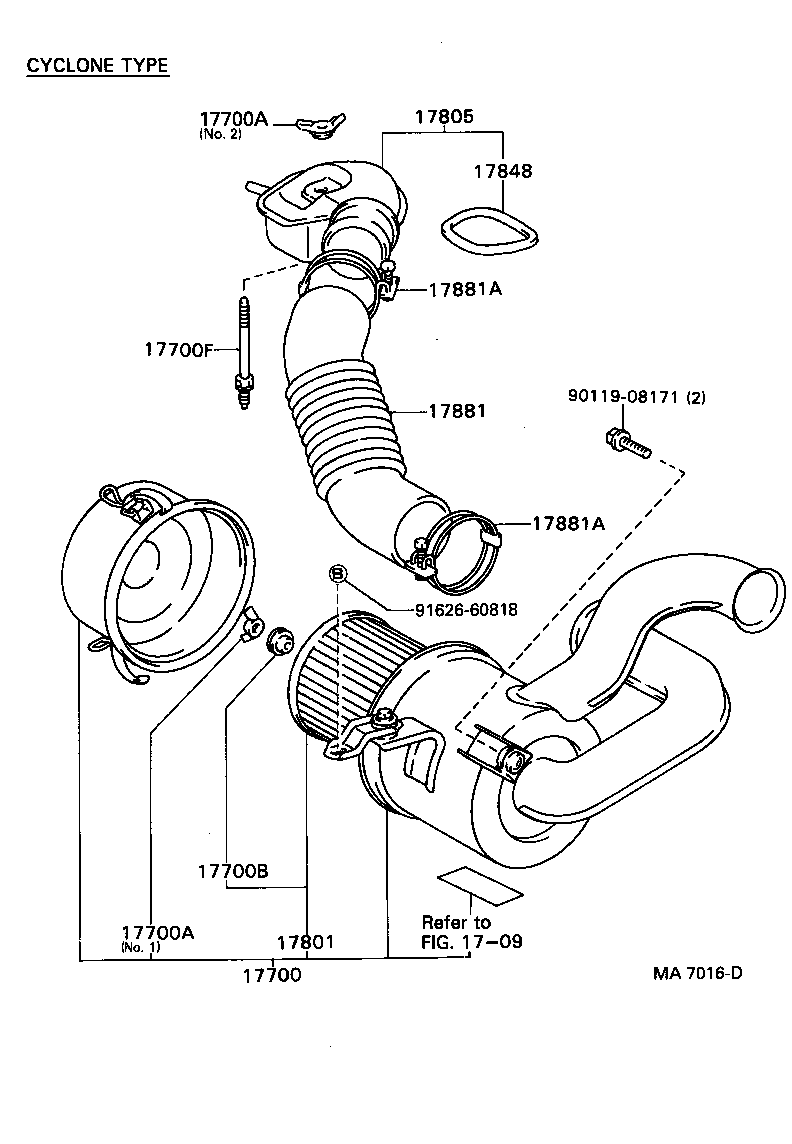

| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73060 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17700-71070 |
1Y#,3Y..YN50,55,57..ARL,GEN |
1 | ||
| 17700-73060 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73060 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17700-71070 |
1Y#,3Y..YN50,55,57..ARL,GEN |
1 | ||
| 17700-73060 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-71020 |
1Y#,2Y,3Y..YN50,55,56,57..ARL,EUR,GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
1YC,3Y..YN55,57..ARL |
1 | ||
| 17801-31050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17801-31050 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
(8308- )1Y#,2Y#,3Y,4Y,4YC..ARL,GEN,ME,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73060 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17700-71070 |
1Y#,3Y..YN50,55,57..ARL,GEN |
1 | ||
| 17700-73060 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17801-34070 |
1YC,3Y..YN55,57..ARL |
1 | ||
| 17801-31050 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73030 |
1Y#,3Y..YN50,52,55,57,60,65..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17805-73030 |
1Y#,2Y,3Y,4Y..YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91626-60818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 1 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73060 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17700-71070 |
1Y#,3Y..YN50,55,57..ARL,GEN |
1 | ||
| 17700-73060 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-73060 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17700-71070 |
1Y#,3Y..YN50,55,57..ARL,GEN |
1 | ||
| 17700-73060 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F NO.2 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-71020 |
1Y#,2Y,3Y..YN50,55,56,57..ARL,EUR,GEN |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17801-34070 |
1YC,3Y..YN55,57..ARL |
1 | ||
| 17801-31050 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31050 |
1Y#,3Y,4Y..YN50,52,55,57,60,62,63,67..ARL,GEN,ME CYCLONE TYPE |
1 | ||
| 17801-34070 |
1YC,3Y..YN55,57..ARL |
1 | ||
| 17801-31050 |
1Y#,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73030 |
1Y#,3Y..YN50,52,55,57,60,65..ARL,GEN,ME,SA CYCLONE TYPE |
1 | ||
| 17805-73030 |
1Y#,2Y,3Y,4Y..YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) CYCLONE TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-73030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA) CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA CYCLONE TYPE |
2 | ||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65..ARL,GEN,SA INTAKE MANIFOLD SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 66323-89104 | ||||
| 90119-06072 | ||||
| 90119-06098 | ||||
| 90179-06060 | ||||
| 90201-07470 | ||||
| 90950-01027 | ||||
