YN55L-KR3 (1983)
Toyota Hilux
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-54040 |
L..LN50,55 |
1 | ||
| 11101-71030 |
1Y,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-71011 |
1Y#,2Y,3Y..YN5#,60,65 |
1 | ||
| 11115-54012 |
L..LN50,55 |
1 | ||
| 11115-54011 |
L..LN50,55 |
1 | ||
| 11115-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
L,2L..LN50,51,55,56,60,61,65 OD=25 |
7 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42500 |
L,2L..LN50,51,55,56,60,61,65 OD=25 |
7 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.05,O/S 0.05 |
4 | ||
| 11122-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.05,O/S 0.05 |
4 | ||
| 11126-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-08137 |
L,2L..LN50,51,55,56,60,61,65 L=76.6,S=13&15 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79035 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
3 | ||
| 90210-13001 |
L,2L..LN50,51,55,56,60,61,65 |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 12180-71011 |
1Y#,2Y,3Y,4Y#..YN5#,6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| Linked diagrams | ||||
| 2201 | ||||

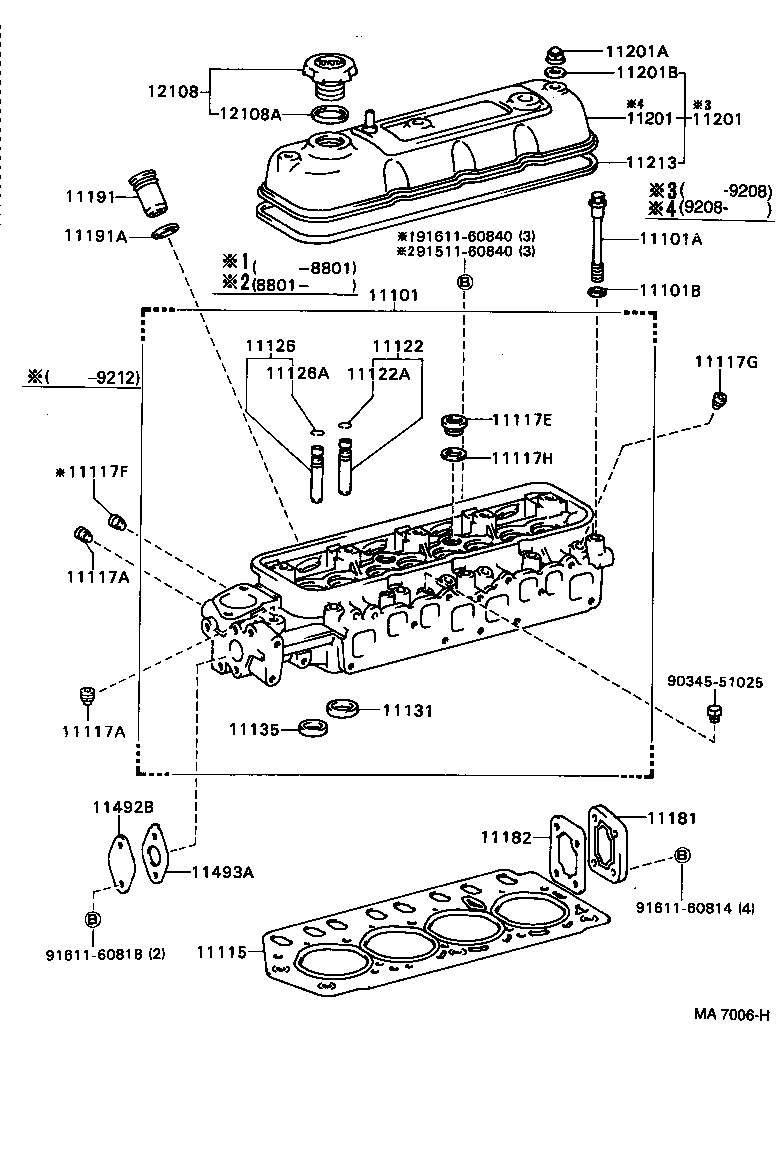

(8308- )1Y#,2Y#,3Y,4Y#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-54040 |
L..LN50,55 |
1 | ||
| 11101-71030 |
1Y,3Y..YN50,52,55,57,6#..ARL,GEN,ME,SA |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-13021 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-71011 |
1Y#,2Y,3Y..YN5#,60,65 |
1 | ||
| 11115-54012 |
L..LN50,55 |
1 | ||
| 11115-54011 |
L..LN50,55 |
1 | ||
| 11115-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
1Y#,2Y,3Y,4Y..YN5#,6# |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.05,O/S 0.05 |
4 | ||
| 11122-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.05,O/S 0.05 |
4 | ||
| 11126-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-63010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11132-63010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.03,O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F STD,STD |
4 | ||
| 11136-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F O/S 0.03,O/S 0.03 |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-71010 |
1Y..YN50..4H;1Y,3Y..YN50,57,65..GEN,ME;1Y,3Y..YN52,55,60..GEN,ME,SA W/O HEATER |
1 | ||
| 11181-71010 |
1Y..YN50..4H;1Y,3Y..YN52,55;1Y,3Y..YN50,57..GEN,ME W/O HEATER |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-71010 |
1Y..YN50..4H;1Y,3Y..YN50,57,65..GEN,ME;1Y,3Y..YN52,55,60..GEN,ME,SA W/O HEATER |
1 | ||
| 11182-71010 |
1Y..YN50..4H;1Y,3Y..YN52,55;1Y,3Y..YN50,57..GEN,ME W/O HEATER |
1 | ||
| 11191 - TUBE, SPARK PLUG | ||||
| 11191-22010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
4 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 90430-31141 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79035 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79035 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
3 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09001 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
3 | ||
| 90210-13001 |
L,2L..LN50,51,55,56,60,61,65 |
3 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-71020 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 11492B - PLATE, WATER SEAL | ||||
| 11492-71010 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F |
1 | ||
| 11493A - GASKET, WATER SEAL PLATE | ||||
| 11493-71010 |
1Y#,2Y#,3Y,4Y#..YN5#,6# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| 12180-71011 |
1Y#,2Y,3Y,4Y#..YN5#,6# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-71010 |
1Y#,2Y,3Y..YN5#,6# |
1 | ||
| Common parts | ||||
| 90345-51025 | ||||
| 91511-60840 | ||||
| 91611-60814 | ||||
| 91611-60818 | ||||
| 91611-60840 | ||||
