YN50L-KR3 (1983)
Toyota Hilux
(8308- )1Y#,2Y#,3Y,4Y,4YC

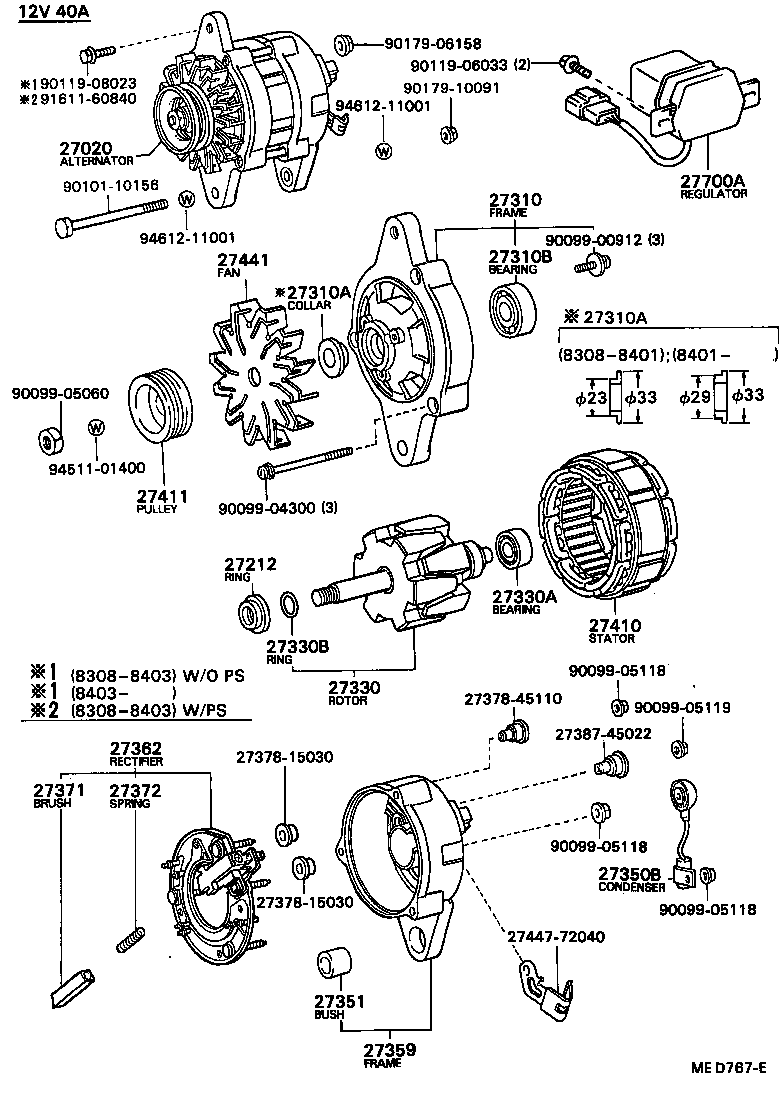

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-72030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F 12V 40A,12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15030 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 40A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 40A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-15030 |
22R,1Y#,2Y,3Y,4Y..RN5#,YN5#,6# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
L,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6# |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-45110 | ||||
| 27387-45022 | ||||
| 27447-72040 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10156 | ||||
| 90119-06033 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 90179-10091 | ||||
| 91611-60840 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
(8308-8408)L..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-72030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F 12V 40A,12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-15030 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10126 |
1Y#,2Y,3Y..YN5#,6# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-26050 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 40A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 40A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-15030 |
22R,1Y#,2Y,3Y,4Y..RN5#,YN5#,6# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-72040 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F 12V 40A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
L,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6# |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
