RZN173L-CRMDKW (1997)

Toyota Hilux

Production Nov 1997 - Aug 2001
Engine 2RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9711- )KDN150,170,LN150,170,RZN173

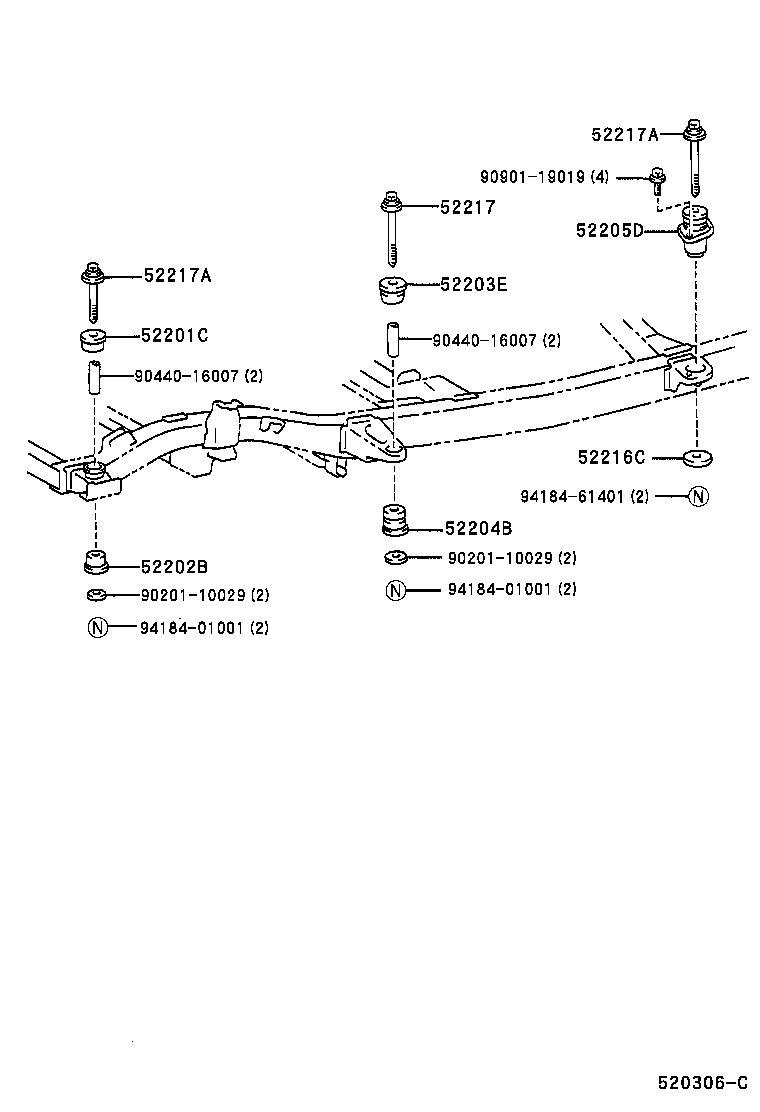

Click highlighted areas on diagram

EXTRA CAB

diagram 52201C 52202B 52203E 52204B 52205D 52216C 52217 52217A 52217A 9020110029 9020110029 9044016007 9044016007 9090119019 9418401001 9418401001 9418461401
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-35120

LN145,150,165,170,190,RZN168,173

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-35110

LN145,150,165,170,190,RZN168,173

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-35230

LN145,150,165,170,RZN168,173..SCB,XTR

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-35140

LN145,150,165,170,RZN168,173..SCB,XTR

 2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-35190

LN170,RZN173

 2
52216C - STOPPER, CAB MOUNTING CUSHION
52216-35050

LN165,170,190,RZN168,173..DCB,XTR

 2
52217 - BOLT, BODY MOUNTING
52217-35070

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173

 2
52217A - BOLT, BODY MOUNTING
52217-35080

LN145..LHD..SCB;LN145..RHD..CBU;LN150,165,170,RZN173..SCB,XTR

L=106

 2
52217-35010

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173

L=115

 2
52217A - BOLT, BODY MOUNTING
52217-35080

LN145..LHD..SCB;LN145..RHD..CBU;LN150,165,170,RZN173..SCB,XTR

L=106

 2
52217-35010

LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173

L=115

 2
Common parts
90201-10029
90440-16007
90901-19019
94184-01001
94184-61401
