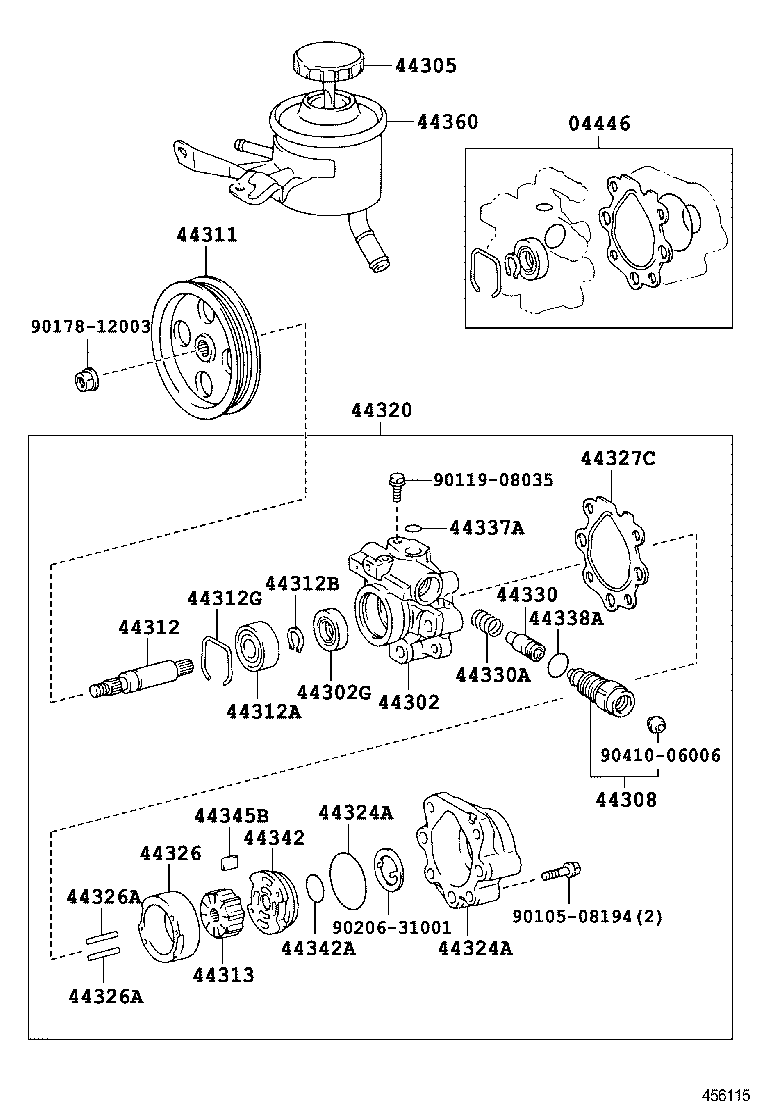

RZN168L-TRMDKW3 (1997)
Toyota Hilux
(9708-0108)RZN168,173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30120 |
RZN168..SCB;LN145..RHD..IV3 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-34010 |
RZN168..SCB |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17007 |
RZN168..SCB;LN145,165..RHD |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
RZN168..SCB |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-26041 |
RZN168..SCB |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-34020 |
RZN168..SCB |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-26010 |
RZN168..SCB;LN145,165..RHD |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17013 |
RZN168..SCB;LN145,165..RHD |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
RZN168..SCB |
1 | ||
| 44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING) | ||||
| 90521-44002 |
RZN168..SCB;LN145,165..RHD |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26090 |
RZN168..SCB MARK 3 |
1 | ||
| 44313-26070 |
RZN168..SCB MARK 1 |
1 | ||
| 44313-26100 |
RZN168..SCB MARK 4 |
1 | ||
| 44313-26060 |
RZN168..SCB NO MARK |
1 | ||
| 44313-26080 |
RZN168..SCB MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35560 |
RZN168..SCB |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-34010 |
RZN168..SCB |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-34010 |
RZN168..SCB |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32290 |
RZN168..SCB MARK 2 |
1 | ||
| 44325-32280 |
RZN168..SCB MARK 1 |
1 | ||
| 44325-32300 |
RZN168..SCB MARK 3 |
1 | ||
| 44325-32310 |
RZN168..SCB MARK 4 |
1 | ||
| 44325-32270 |
RZN168..SCB NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
RZN168..SCB L=23.3,OD=4.0 |
2 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
RZN168..SCB L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
RZN168..SCB |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-26071 |
RZN168..SCB MARK A |
1 | ||
| 44330-26101 |
RZN168..SCB MARK D |
1 | ||
| 44330-26091 |
RZN168..SCB MARK C |
1 | ||
| 44330-26121 |
RZN168..SCB MARK F |
1 | ||
| 44330-26081 |
RZN168..SCB MARK B |
1 | ||
| 44330-26111 |
RZN168..SCB MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
RZN168..SCB |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
RZN168..SCB |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19018 |
RZN168..SCB ID=19.2,OD=22.3 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
RZN168..SCB |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
RZN168..SCB OUTER |
1 | ||
| 90301-18007 |
RZN168..SCB INNER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26050 |
RZN168..SCB L=14.992 |
10 | ||
| 44345-26010 |
RZN168..SCB L=15.000 |
10 | ||
| 44345-26030 |
RZN168..SCB L=14.996 |
10 | ||
| 44345-26040 |
RZN168..SCB L=14.994 |
10 | ||
| 44345-26020 |
RZN168..SCB L=14.998 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-35250 |
RZN168..SCB |
1 | ||
| Common parts | ||||
| 90105-08194 | ||||
| 90119-08035 | ||||
| 90178-12003 | ||||
| 90206-31001 | ||||
| 90410-06006 | ||||
