RZN168L-TRMDKW3 (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 2RZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2RZFE

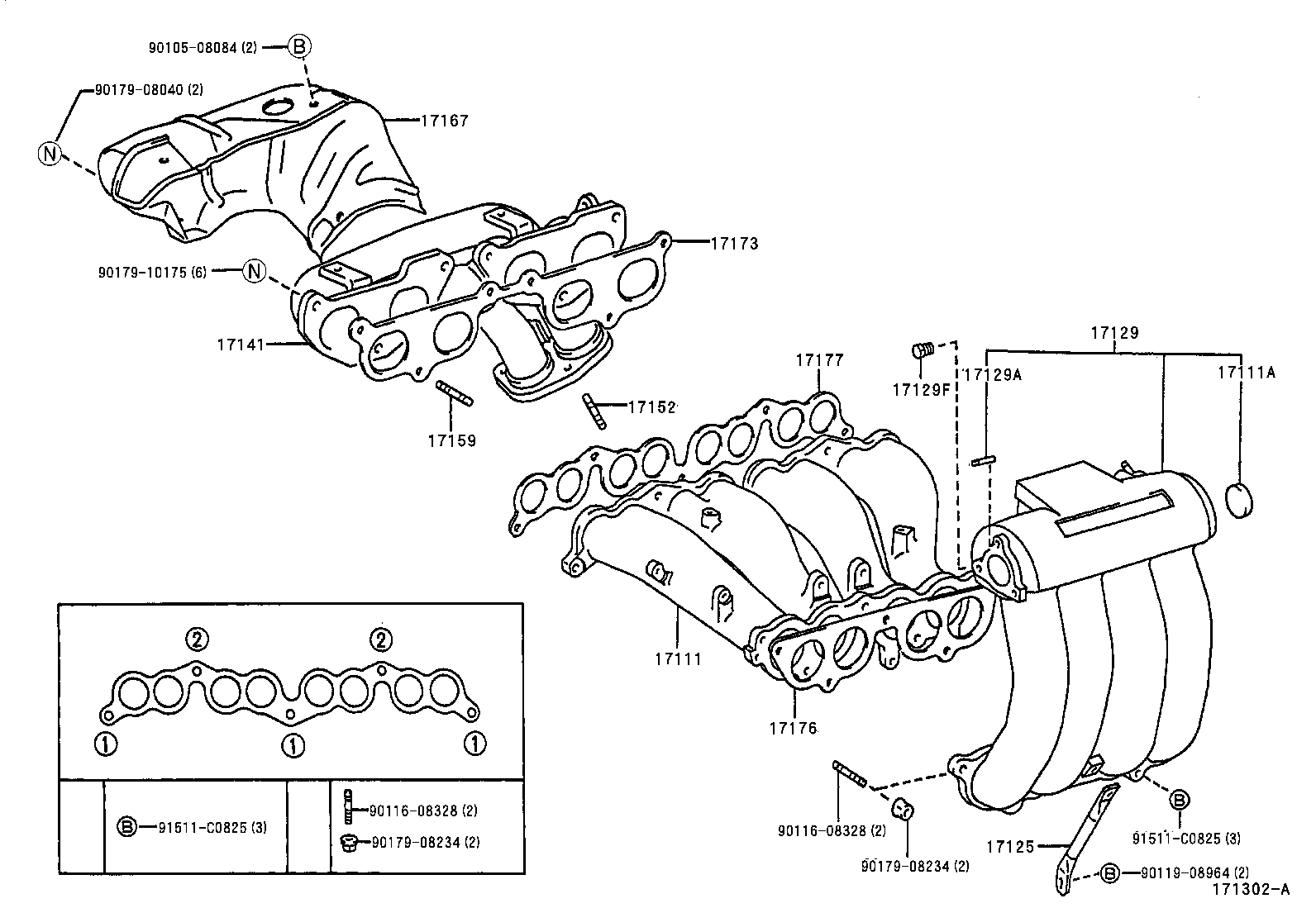

Click highlighted areas on diagram

diagram 17111 17111A 17125 17129 17129A 17129F 17141 17152 17159 17167 17173 17176 17177 9010508084 9011608328 9011608328 9011908964 9017908040 9017908234 9017908234 9017910175 91511C0825 91511C0825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-75031

2RZFE..RZN168,173

 1
17111A - PLUG, NO.1
96411-43500

2RZFE..RZN168,173

 2
17125 - STAY, SURGE TANK, NO.1
17125-75020

2RZFE..RZN168,173

 1
17129 - TANK, INTAKE AIR SURGE
17109-75013

2RZFE..RZN168,173

 1
17129A - UNION, NO.1
90406-06001

2RZFE..RZN168,173

 1
17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE
90345-51025

2RZFE..RZN168,173

 1
90345-51025

2RZFE..RZN168..SCB

 1
17141 - MANIFOLD, EXHAUST
17141-75070

2RZFE..RZN168,173

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10149

2RZFE..RZN168,173

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10163

2RZFE..RZN168,173

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-75070

2RZFE..RZN168,173

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-75020

2RZFE..RZN168,173

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-75010

2RZFE..RZN168,173

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-75020

2RZFE..RZN168,173

 1
Common parts
90105-08084
90116-08328
90119-08964
90179-08040
90179-08234
90179-10175
91511-C0825
