RZN168L-TRMDKW3 (1997)
Toyota Hilux
Production
Aug 1997
-
Aug 1999
Engine
2RZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )2RZFE

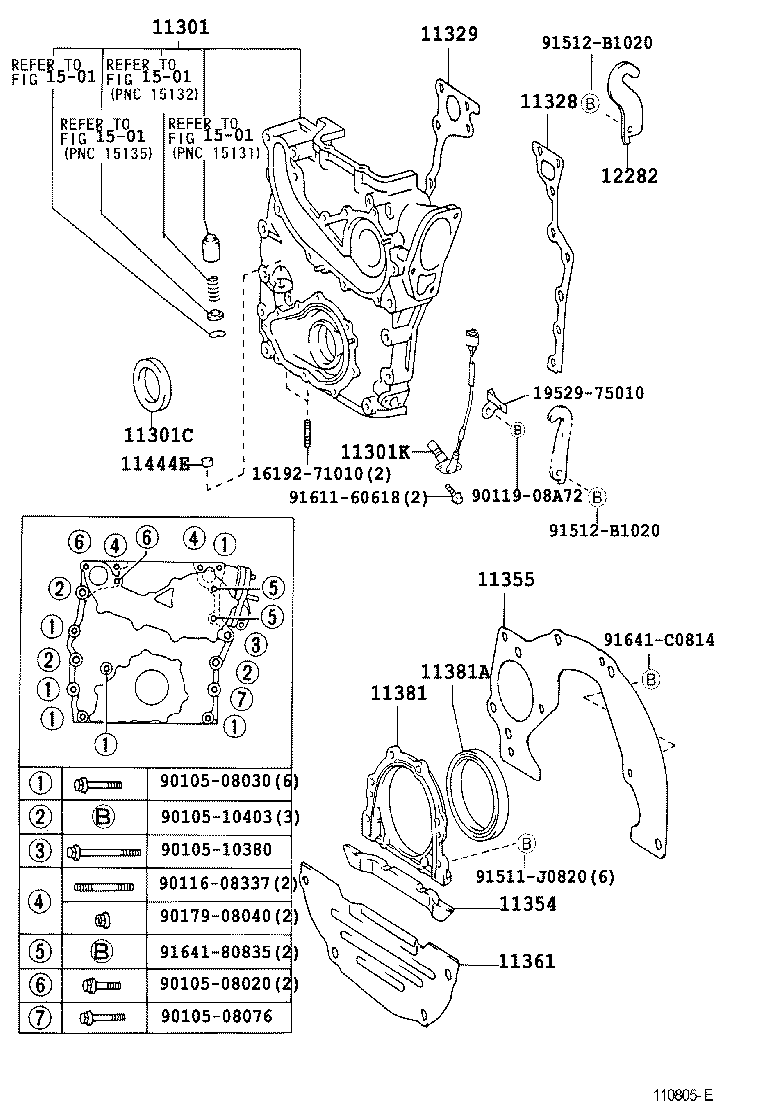

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-75030 |
2RZFE..RZN168,173 |
1 | ||
| 11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) | ||||
| 90311-48014 |
2RZFE..RZN168,173 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05016 |
2RZFE..RZN168,173 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-75010 |
2RZFE..RZN168,173 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-75010 |
2RZFE..RZN168,173 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-75010 |
2RZFE..RZN168,173 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-75010 |
2RZFE..RZN168,173 |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-75020 |
2RZFE..RZN168,173 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-75010 |
2RZFE..RZN168,173 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-88003 |
2RZFE..RZN168,173 |
1 | ||
| 11444E - PLUG, HOLE | ||||
| 11444-75020 |
2RZFE..RZN168,173 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-75020 |
2RZFE..RZN168,173 |
1 | ||
| Common parts | ||||
| 16192-71010 | ||||
| 19529-75010 | ||||
| 90105-08020 | ||||
| 90105-08030 | ||||
| 90105-08076 | ||||
| 90105-10380 | ||||
| 90105-10403 | ||||
| 90116-08337 | ||||
| 90119-08A72 | ||||
| 90179-08040 | ||||
| 91511-J0820 | ||||
| 91512-B1020 | ||||
| 91611-60618 | ||||
| 91641-80835 | ||||
| 91641-C0814 | ||||
| Linked diagrams | ||||
| 1501 | ||||
