RZN168L-PRMDKW (1997)
Toyota Hilux

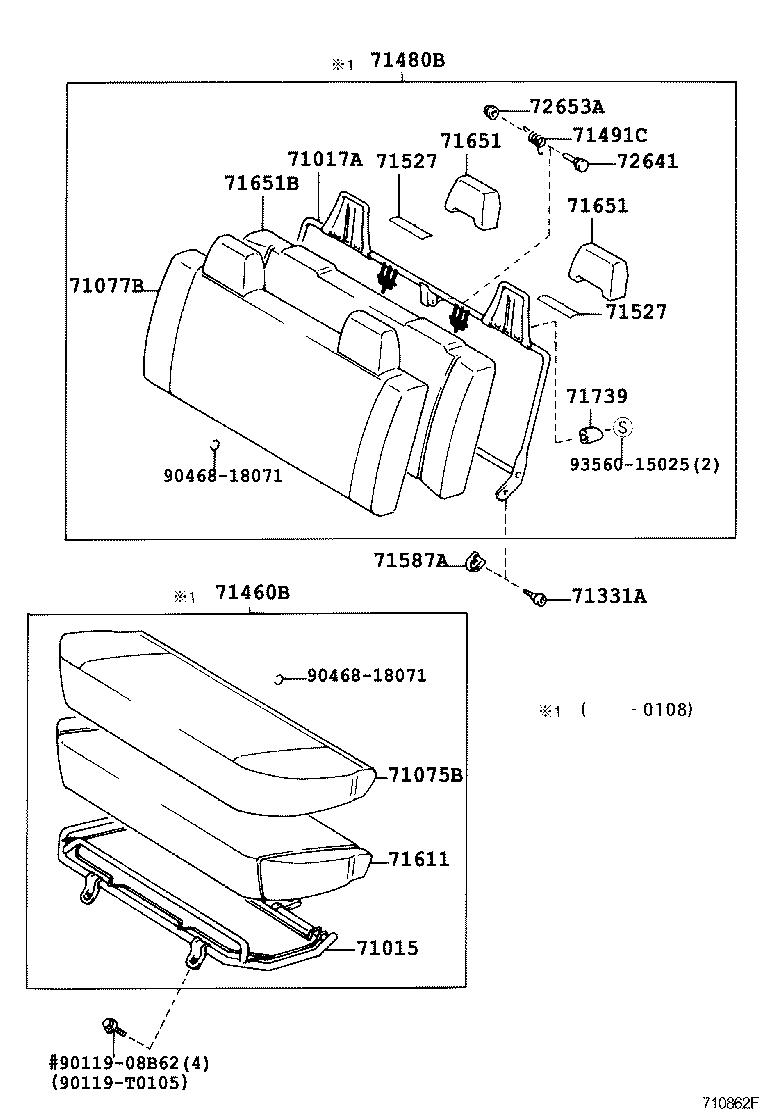

ILLUST NO. 3 OF 3(9708- )DCB ; (0108- )KDN150,170..DLX
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-35040 |
LN145,165,190,RZN168..DCB |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-35140 |
LN145,165,RZN168..DCB W(HEADREST) |
1 | ||
| 71017-35090 |
LN145,165,RZN168..DCB..DLX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-35690B0 |
LN165,RZN168..LHD..DCB..DLX W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1# |
1 | ||
| 71075-35460B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71075-35700B0 |
LN145,165,RZN168..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71075-35470B0 |
LN145,165,RZN168..DCB..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-35810B0 |
LN165,RZN168..LHD..DCB..DLX W(HEADREST & VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1# |
1 | ||
| 71077-35740B0 |
LN145,165,RZN168..DCB..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71077-35800B0 |
LN145,165,RZN168..DCB..DLX W(HEADREST & FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71077-3D200B0 |
LN145,165,RZN168..DCB..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71077-35730B0 |
LN165,RZN168..LHD..DCB..DLX W(VINYL LEATHER SEAT)-*104,MOONMIST,TRIM1# |
1 | ||
| 71077-3D240B0 |
LN165,RZN168..LHD..DCB..DLX W(REAR HEADREST),MOONMIST,TRIM1# |
1 | ||
| 71077-3D180B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71077-3D150B0 |
LN165,RZN168..DCB..DLX W(HEADREST & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71331A - PIN, REAR SEAT HINGE | ||||
| 71331-35050 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-35700B1 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71560-35080B0 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71560-35040B0 |
LN145,165,RZN168..DCB..DLX W(FRONT SEPARATE SEAT OR REAR HEADREST OR SEAT HEATER),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71460-35660B2 |
LN145,165,RZN168..DCB..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-35770B3 |
LN145,165,RZN168..DCB..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-35610B2 |
LN145,165,RZN168..DCB..DLX W(HEADREST & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-35850B1 |
LN165,RZN168..LHD..DCB..DLX W(HEADREST),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-3D280B2 |
LN145,165,RZN168..LHD..DCB..DLX W(FRONT SEPARATE SEAT OR SEAT HEATER),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-3D270B0 |
LN145,165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-35790B1 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-3D310B0 |
LN165,RZN168..LHD..DCB..DLX W(HEADREST),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-3D380B0 |
LN145,165,RZN168..LHD..DCB..DLX W(FRONT SEPARATE SEAT OR REAR HEADREST OR SEAT HEATER),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71480-3D280B1 |
LN145,165,RZN168..LHD..DCB..DLX W(FRONT SEPARATE SEAT OR SEAT HEATER),MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
LN145,165,190,RZN168..DCB |
1 | ||
| 71527 - TAPE, FRONT SEAT CUSHION SILENCER | ||||
| 71527-34010 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71527 - TAPE, FRONT SEAT CUSHION SILENCER | ||||
| 71527-34010 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71587A - PROTECTOR, REAR SEAT BACK EDGE | ||||
| 71587-35010 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-35030 |
LN145,165,RZN168..DCB |
1 | ||
| 71611-35060 |
LN145,165,190,RZN168..DCB |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71661-35020 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71661-35020 |
LN145,165,190,RZN168..DCB |
2 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-35050 |
LN145,165,190,RZN168..DCB |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-35020 |
LN145,165,190,RZN168..DCB |
2 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-89101 |
LN145,165,190,RZN168..DCB |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 72653-89101 |
LN145,165,190,RZN168..DCB |
1 | ||
| Common parts | ||||
| 90119-08B62 | ||||
| 90119-T0105 | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||
ILLUST NO. 1 OF 3(9708- )
FRONT SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3D490B0 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71071-3D480B0 |
LN145,150,165,170,RZN168,173..(DCB,XTR)..DLX W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-3D480B0 |
LN145,150,165,170,RZN168,173..(DCB,XTR)..DLX W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71071-3D490B0 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3D520B0 |
LN145,150,165,170,RZN168,173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71073-3D530B0 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3D520B0 |
LN145,150,165,170,RZN168,173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71073-3D530B0 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MD. MOON MIST,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-3D330B3 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-3D310B3 |
LN145,150,165,170,RZN168,173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-3D310B3 |
LN145,150,165,170,RZN168,173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-3D330B3 |
LN145,150,165,170,RZN168,173..LHD..(DCB,XTR)..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-3G010B3 |
RZN168..DCB;LN145..LHD..DLX;LN145..RHD..CBU;LN150,165,170,RZN173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430-3G040B3 |
LN145,165,RZN168..LHD..DCB..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-3G010B3 |
RZN168..DCB;LN145..LHD..DLX;LN145..RHD..CBU;LN150,165,170,RZN173..DLX W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430-3G040B3 |
LN145,165,RZN168..LHD..DCB..DLX W(SEAT HEATER & FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35080 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-35080 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35070 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-35070 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN145,165,RZN168..LHD..DLX SEAT LEG SIDE COVER |
2 | ||
| 71587-35050 |
LN165;LN145,150,170,RZN168,173..DLX W(SEPARATE SEAT) |
2 | ||
| 71587-35040 |
LN145,165,RZN168..LHD..DLX W(BENCH SEAT) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-60080 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-60030 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35100 |
LN165..LHD..DCB;LN145,150,170,RZN168,173..(DCB,XTR)..DLX W(SEAT HEATER) |
1 | ||
| 71610-35090 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-35090 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 71610-35100 |
LN165..LHD..DCB;LN145,150,170,RZN168,173..(DCB,XTR)..DLX W(SEAT HEATER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-35130 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-35130 |
LN165;LN145,150,170,RZN168,173..DLX |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-35050 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-35050 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35430B2 |
LN145,165..SCB;LN145,165..DCB..IV3;LN150,170,RZN168,173 W(FABRIC SEAT = DLX TYPE)-*104,MEDIUM MOONMIST,TRIM1# |
2 | ||
| 71910-35650B0 |
LN145,165,RZN168..LHD..DLX MOONMIST,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B2 |
LN145,150,165,170,190,RZN168,173 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
LN145,150,165,170,190,RZN168,173 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-13030B2 |
LN145,150,165,170,190,RZN168,173 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
LN145,150,165,170,190,RZN168,173 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 3(9708- )
FRONT SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-35010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35100B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35120B0 |
LN165;LN145,150,170,RZN168,173..DLX MD.MOON MIST,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-35050B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-35060B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35040B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35050B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35040B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35050B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-35130 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 72011-35170 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-35150 |
LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72012-35200 |
LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-35200 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 72021-35130 |
LN145,150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72021-35130 |
LN145,150,165,170,190,RZN168,173..DCB,XTR |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-35210 |
LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72022-35150 |
LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72022-35150 |
LN145..DCB..DLX;LN150,165,170,RZN168,173..DCB,XTR |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
LN145,150,165,170,190,RZN168,173 INNER |
2 | ||
| 72125-10010 |
LN145,150,165,170,190,RZN168,173 OUTER |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
LN145,150,165,170,190,RZN168,173 INNER |
2 | ||
| 72125-10010 |
LN145,150,165,170,190,RZN168,173 OUTER |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
LN145,150,165,170,190,RZN168,173 INNER |
2 | ||
| 72125-10010 |
LN145,150,165,170,190,RZN168,173 OUTER |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-44010 |
LN145,150,165,170,190,RZN168,173 INNER |
2 | ||
| 72125-10010 |
LN145,150,165,170,190,RZN168,173 OUTER |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-12010 |
LN145,150,165,170,190,RZN168,173 OUTER |
4 | ||
| 72129-44030 |
LN145,150,165,170,190,RZN168,173 INNER |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35050B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MEDIUM MOONMIST,TRIM1# |
1 | ||
| 72137C - COVER, SEAT TRACK INNER, RH | ||||
| 72137-35020B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MD.MOON MIST,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-35050B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MEDIUM MOONMIST,TRIM1# |
1 | ||
| 72138E - COVER, SEAT TRACK, INNER LH | ||||
| 72138-35010B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MD.MOON MIST,TRIM1# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-35010 |
LN145,150,165,170,190,RZN168,173 LH |
1 | ||
| 72211-35010 |
LN145,150,165,170,190,RZN168,173 RH |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-35010 |
LN145,150,165,170,190,RZN168,173 LH |
1 | ||
| 72211-35010 |
LN145,150,165,170,190,RZN168,173 RH |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-35030B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-35020B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10825 | ||||
| 90119-T0108 | ||||
| 90168-40011 | ||||
| 90168-40043 | ||||
| 91512-61018 | ||||
| 91615-60825 | ||||
| 93249-54006 | ||||
| 93249-54008 | ||||
ILLUST NO. 1 OF 3(9708- )
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-3D600B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71071-3G040B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-3D620B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71073-3G110B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71073-3G320B0 |
LN165,RZN168..LHD..DCB..DLX MOONMIST,TRIM1# |
1 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-89105 |
LN145,165,RZN168..LHD..DCB..DLX |
2 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-89105 |
LN145,165,RZN168..LHD..DCB..DLX |
2 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-3D840B0 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71410-3D450B1 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71040-35240B0 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71430-3D870B1 |
LN165,RZN168..LHD..DCB..DLX MEDIUM MOONMIST,TRIM1# |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71511-35070 |
RZN168;LN165..LHD..DCB..DLX |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71551-35090 |
LN145,165,RZN168..LHD..DLX |
1 | ||
| 71551-35060 |
LN145,165,RZN168..LHD..DLX |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-35090 |
LN145,165,RZN168..LHD..DCB..DLX |
2 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-35090 |
LN145,165,RZN168..LHD..DCB..DLX |
2 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-35010 |
LN145,165,RZN168..LHD..DCB..DLX |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN145,165,RZN168..LHD..DLX SEAT LEG SIDE COVER |
2 | ||
| 71587-35050 |
LN165;LN145,150,170,RZN168,173..DLX W(SEPARATE SEAT) |
2 | ||
| 71587-35040 |
LN145,165,RZN168..LHD..DLX W(BENCH SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN145,165,RZN168..LHD..DLX SEAT LEG SIDE COVER |
2 | ||
| 71587-35050 |
LN165;LN145,150,170,RZN168,173..DLX W(SEPARATE SEAT) |
2 | ||
| 71587-35040 |
LN145,165,RZN168..LHD..DLX W(BENCH SEAT) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-89103 |
LN145,165,RZN168..LHD..DLX SEAT LEG SIDE COVER |
2 | ||
| 71587-35050 |
LN165;LN145,150,170,RZN168,173..DLX W(SEPARATE SEAT) |
2 | ||
| 71587-35040 |
LN145,165,RZN168..LHD..DLX W(BENCH SEAT) |
1 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-35080 |
RZN168;LN165..LHD..DCB..DLX |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-35240 |
LN145,165,RZN168..LHD..DCB..DLX |
1 | ||
| 71630-35220 |
LN145,165,RZN168..LHD..DCB..DLX |
1 | ||
| Common parts | ||||
| 90080-10143 | ||||
| 90468-18071 | ||||
ILLUST NO. 2 OF 3(9708- )
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-35130 |
LN145,165,RZN168..LHD..DCB..DLX |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-35140 |
LN145,165,RZN168..LHD..DCB..DLX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35050B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MEDIUM MOONMIST,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-35050B0 |
LN145,150,165,170,190,RZN168,173..DCB,XTR MEDIUM MOONMIST,TRIM1# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-35040 |
LN145,165,RZN168..LHD..DLX |
1 | ||
| Common parts | ||||
| 90119-08830 | ||||
| 90119-10825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
