RZN168L-PRMDKW (1997)
Toyota Hilux
(9708- )LN165,170,RZN168,173
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35051 |
LN165,170,RZN168,173 |
1 | ||
| 04371-35031 |
LN165,170,RZN168,173 |
1 | ||
| 04371-35050 |
LN165,170,RZN168,173 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01192 |
RZN168..DCB;LN165,170,RZN173 12G,T=4.5 |
1 | ||
| 90937-01184 |
RZN168..DCB;LN165,170,RZN173 4G,T=1.6 |
1 | ||
| 90937-01269 |
RZN168..DCB;LN165,170,RZN173 40G,L=25.6 |
1 | ||
| 90937-01191 |
RZN168..DCB;LN165,170,RZN173 8G,T=1.6 |
1 | ||
| 90937-01199 |
RZN168..DCB;LN165,170,RZN173 28G,T=6,L=22.7 |
1 | ||
| 90937-01271 |
RZN168..DCB;LN165,170,RZN173 48G,L=24.6 |
1 | ||
| 90937-01270 |
RZN168..DCB;LN165,170,RZN173 44G,L=22.6 |
1 | ||
| 90937-01273 |
RZN168..DCB;LN165,170,RZN173 56G,L=28.7 |
1 | ||
| 90937-01194 |
RZN168..DCB;LN165,170,RZN173 20G,T=4.5 |
1 | ||
| 90937-01268 |
RZN168..DCB;LN165,170,RZN173 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01274 |
RZN168..DCB;LN165,170,RZN173 60G,L=28.7 |
1 | ||
| 90937-01272 |
RZN168..DCB;LN165,170,RZN173 52G,L=26.7 |
1 | ||
| 90937-01200 |
RZN168..DCB;LN165,170,RZN173 32G,T=6,L=24.3 |
1 | ||
| 90937-01198 |
RZN168..DCB;LN165,170,RZN173 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01193 |
RZN168..DCB;LN165,170,RZN173 16G,T=4.5 |
1 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
LN165,170,RZN168,173 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37302A - YOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
LN165,170,RZN168,173 |
1 | ||
| 37315B - Y0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE | ||||
| 37315-35040 |
LN165,170,RZN168,173 |
1 | ||
| 37315-35070 |
LN165,170,RZN168,173 |
1 | ||
| 37331A - COVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUS | ||||
| 37305-35020 |
LN165,170,RZN168,173 |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26038 |
LN165,170,RZN168 T=2.125,MARK 1 |
4 | ||
| 90520-26043 |
LN165,170,RZN168 T=2.325,MARK 5 |
4 | ||
| 90520-26040 |
LN165,170,RZN168 T=2.175,MARK 2 |
4 | ||
| 90520-26046 |
LN165,170,RZN168 T=2.475,MARK 8 |
4 | ||
| 90520-26042 |
LN165,170,RZN168 T=2.275,MARK 4 |
4 | ||
| 90520-26051 |
LN165,170,RZN168,173 T=2.46-2.48 |
4 | ||
| 90520-26050 |
LN165,170,RZN168,173 T=2.44-2.46 |
4 | ||
| 90520-26045 |
LN165,170,RZN168 T=2.425,MARK 7 |
4 | ||
| 90520-26054 |
LN165,170,RZN168,173 T=2.32-2.34 |
4 | ||
| 90520-26044 |
LN165,170,RZN168 T=2.375,MARK 6 |
4 | ||
| 90520-26057 |
LN165,170,RZN168,173 T=2.38-2.40 |
4 | ||
| 90520-26041 |
LN165,170,RZN168 T=2.225,MARK 3 |
4 | ||
| 90520-26056 |
LN165,170,RZN168,173 T=2.36-2.38 |
4 | ||
| 90520-26055 |
LN165,170,RZN168,173 T=2.34-2.36 |
4 | ||
| 90520-26058 |
LN165,170,RZN168,173 T=2.40-2.42 |
4 | ||
| 90520-26062 |
LN165,170,RZN168 T=2.18-2.20 |
4 | ||
| 90520-26052 |
LN165,170,RZN168,173 T=2.28-2.30 |
4 | ||
| 90520-26063 |
LN165,170,RZN168 T=2.20-2.22 |
4 | ||
| 90520-26064 |
LN165,170,RZN168 T=2.22-2.24 |
4 | ||
| 90520-26065 |
LN165,170,RZN168 T=2.24-2.26 |
4 | ||
| 90520-26059 |
LN165,170,RZN168,173 T=2.42-2.44 |
4 | ||
| 90520-26053 |
LN165,170,RZN168,173 T=2.30-2.32 |
4 | ||
| 90520-26068 |
LN165,170,RZN168 T=2.50-2.52 |
4 | ||
| 90520-26069 |
LN165,170,RZN168 T=2.52-2.54 |
4 | ||
| 90520-26066 |
LN165,170,RZN168 T=2.26-2.28 |
4 | ||
| 90520-26067 |
LN165,170,RZN168 T=2.48-2.50 |
4 | ||
| 90520-25041 |
LN165,170,RZN168 T=2.33,NO MARK |
4 | ||
| 90520-25045 |
LN165,170,RZN168 T=2.41,MARK 7 |
4 | ||
| 90520-25046 |
LN165,170,RZN168 T=2.43,MARK 8 |
4 | ||
| 90520-25040 |
LN165,170,RZN168 T=2.31,MARK 2 |
4 | ||
| 90520-25047 |
LN165,170,RZN168 T=2.45,MARK 9 |
4 | ||
| 90520-25048 |
LN165,170,RZN168 T=2.47,MARK 10 |
4 | ||
| 90520-25042 |
LN165,170,RZN168 T=2.35,BROWN |
4 | ||
| 90520-25039 |
LN165,170,RZN168 T=2.29,MARK 1 |
4 | ||
| 90520-25043 |
LN165,170,RZN168 T=2.37,BLUE |
4 | ||
| 90520-25044 |
LN165,170,RZN168 T=2.39,MARK 6 |
4 | ||
| 90520-25049 |
LN165,170,RZN168 T=2.49,MARK A |
4 | ||
| 90520-25050 |
LN165,170,RZN168 T=2.51,MARK B |
4 | ||
| 90520-25052 |
LN165,170,RZN168 T=2.55,MARK D |
4 | ||
| 90520-25054 |
LN165,170,RZN168 T=2.19,MARK D |
4 | ||
| 90520-25053 |
LN165,170,RZN168 T=2.57,MARK E |
4 | ||
| 90520-25051 |
LN165,170,RZN168 T=2.53,MARK C |
4 | ||
| 90520-25055 |
LN165,170,RZN168 T=2.21,MARK E |
4 | ||
| 90520-25056 |
LN165,170,RZN168 T=2.23,MARK F |
4 | ||
| 90520-25057 |
LN165,170,RZN168 T=2.25,MARK G |
4 | ||
| 90520-25058 |
LN165,170,RZN168 T=2.27,MARK H |
4 | ||
| 37402C - BEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
LN165,170,RZN168,173 NO PAINT |
4 | ||
| 37402-30021 |
LN165,170,RZN168 RED PAINTED |
4 | ||
| 37701 - COVER SUB-ASSY, PROPELLER SHAFT DUST | ||||
| 37701-35071 |
LN165,170,RZN168,173 |
1 | ||
| 37713 - COVER, PROPELLER SHAFT DUST, NO.2 | ||||
| 37713-35070 |
LN165,170,RZN168,173 |
1 | ||
| 37713-35070 |
LN165,170,RZN168,173 |
1 | ||
| 37714 - STAY, PROPELLER SHAFT DUST COVER | ||||
| 37714-35051 |
LN165,170,RZN168,173 |
1 | ||
| Common parts | ||||
| 90119-08167 | ||||
| 90119-10046 | ||||
| 90179-08146 | ||||
| 90416-06004 | ||||
| 90416-06007 | ||||
| 90416-06008 | ||||
| 91511-60810 | ||||
| 96451-00600 | ||||

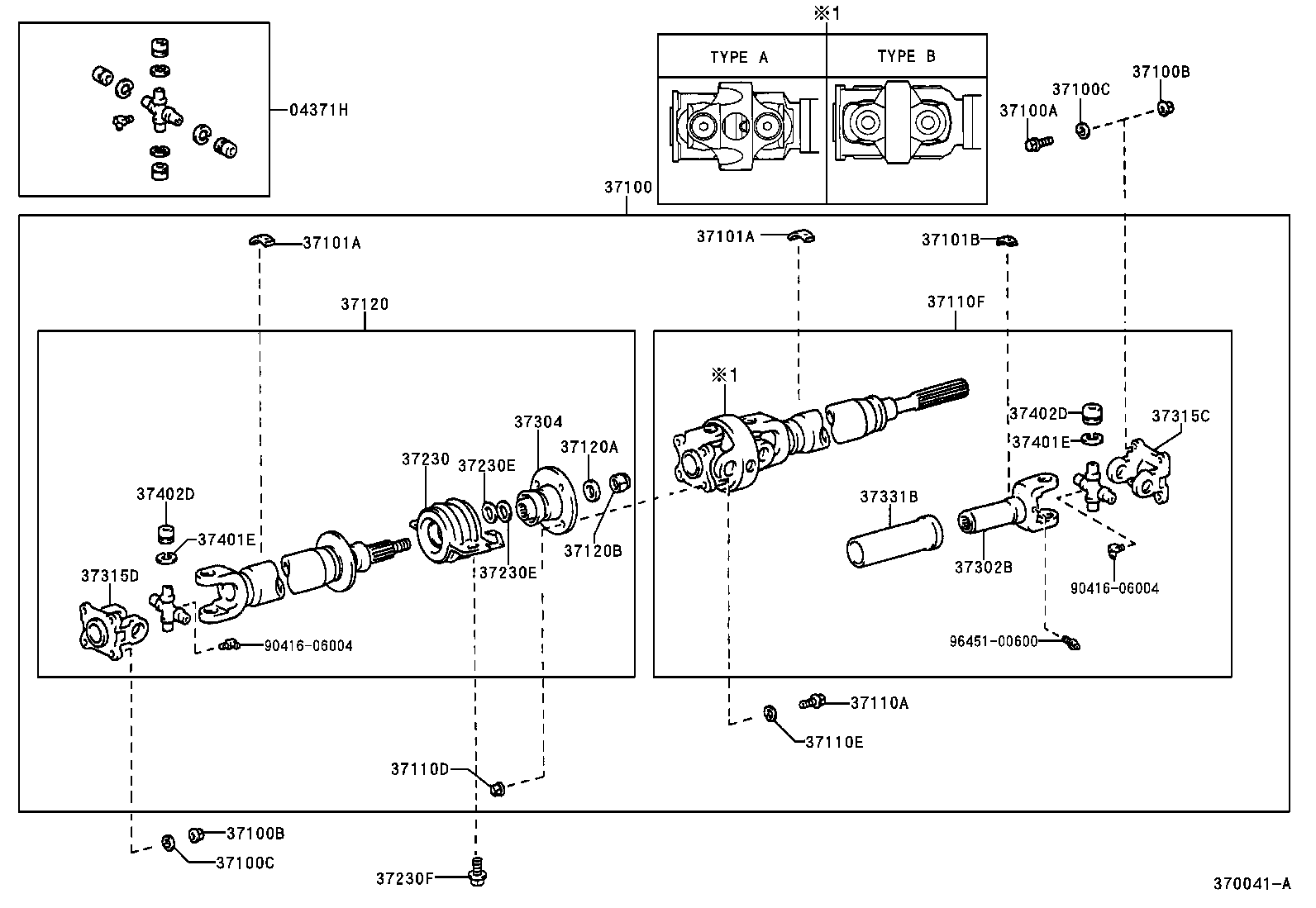

(9708- )RZN168
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35031 |
LN165,RZN168,173 |
2 | ||
| 04371-35050 |
RZN168 |
4 | ||
| 04371-35050 |
RZN168..DCB |
2 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-3D110 |
RZN168 TYPE A:REFER ILLUST. |
1 | ||
| 37100-3D170 |
RZN168 TYPE B:REFER ILLUST. |
1 | ||
| 37100-3D170 |
RZN168 |
1 | ||
| 37100-3D110 |
RZN168 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
LN145,150,165,170,190,RZN168,173 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
LN165,170,RZN168,173 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
LN165,170,RZN168,173 |
8 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 8G,L=16.6 |
1 | ||
| 90937-01151 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 12G,L=24.9 |
1 | ||
| 90937-01147 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 2G,T=2.0 |
1 | ||
| 90937-01149 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 6G,L=12.4 |
1 | ||
| 90937-01154 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 18G,L=37.3 |
1 | ||
| 90937-01132 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 10G,L=20.7 |
1 | ||
| 90937-01155 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 22G,L=45.6 |
1 | ||
| 90937-01156 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 24G,L=49.7 |
1 | ||
| 90937-01202 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 32G,T=4.5,L=29.2 |
1 | ||
| 90937-01203 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 34G,T=4.5,L=31.0 |
1 | ||
| 90937-01148 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 4G,T=2.0 |
1 | ||
| 90937-01207 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 42G,T=4.5,L=38.4 |
1 | ||
| 90937-01157 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 26G,L=53.9 |
1 | ||
| 90937-01206 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 40G,T=4.5,L=36.5 |
1 | ||
| 90937-01204 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 36G,T=4.5,L=32.9 |
1 | ||
| 90937-01152 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 14G,L=29.0 |
1 | ||
| 90937-01211 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 50G,T=4.5,L=45.7 |
1 | ||
| 90937-01205 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 38G,T=4.5,L=34.7 |
1 | ||
| 90937-01210 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 48G,T=4.5,L=43.8 |
1 | ||
| 90937-01201 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 30G,T=4.5,L=27.4 |
1 | ||
| 90937-01209 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 46G,T=4.5,L=42.0 |
1 | ||
| 90937-01158 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 28G,L=58.1 |
1 | ||
| 90937-01136 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 20G,L=41.4 |
1 | ||
| 90937-01208 |
LN145..SR;RZN168..DCB;LN165,170,190,RZN173;LN145,150..(DCB,XTR)..IV3 44G,T=4.5,L=40.2 |
1 | ||
| 90937-01153 |
LN145..LHD;RZN168..DCB;LN145..RHD..CBU;LN150,165,170,190,RZN173 16G,L=33.2 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01192 |
RZN168..DCB;LN165,170,RZN173 12G,T=4.5 |
1 | ||
| 90937-01184 |
RZN168..DCB;LN165,170,RZN173 4G,T=1.6 |
1 | ||
| 90937-01269 |
RZN168..DCB;LN165,170,RZN173 40G,L=25.6 |
1 | ||
| 90937-01191 |
RZN168..DCB;LN165,170,RZN173 8G,T=1.6 |
1 | ||
| 90937-01199 |
RZN168..DCB;LN165,170,RZN173 28G,T=6,L=22.7 |
1 | ||
| 90937-01271 |
RZN168..DCB;LN165,170,RZN173 48G,L=24.6 |
1 | ||
| 90937-01270 |
RZN168..DCB;LN165,170,RZN173 44G,L=22.6 |
1 | ||
| 90937-01273 |
RZN168..DCB;LN165,170,RZN173 56G,L=28.7 |
1 | ||
| 90937-01194 |
RZN168..DCB;LN165,170,RZN173 20G,T=4.5 |
1 | ||
| 90937-01268 |
RZN168..DCB;LN165,170,RZN173 36G,L=23.1,T=8.0 |
1 | ||
| 90937-01274 |
RZN168..DCB;LN165,170,RZN173 60G,L=28.7 |
1 | ||
| 90937-01272 |
RZN168..DCB;LN165,170,RZN173 52G,L=26.7 |
1 | ||
| 90937-01200 |
RZN168..DCB;LN165,170,RZN173 32G,T=6,L=24.3 |
1 | ||
| 90937-01198 |
RZN168..DCB;LN165,170,RZN173 24G,T=4.5,L=25.1 |
1 | ||
| 90937-01193 |
RZN168..DCB;LN165,170,RZN173 16G,T=4.5 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LN145,150,170,190,RZN168,173 *10-1.00PX27-13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LN145,150,170,190,RZN168,173 |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LN145,150,170,190,RZN168,173 |
4 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-3D170 |
RZN168 |
1 | ||
| 37110-35870 |
RZN168 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-35790 |
RZN168 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
LN170,190,RZN168,173 OD=33.5,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
LN170,190,RZN168,173 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-35130 |
RZN168 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
LN190,RZN168,173 |
2 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-25006 |
LN190,RZN168,173 |
2 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10049 |
LN145,150,170,190,RZN168 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
RZN168..DCB |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
LN170,190,RZN168,173 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
RZN168,173..DCB,XTR |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LN170,RZN168,173 |
1 | ||
| 37315-35070 |
LN170,RZN168,173 |
1 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-35020 |
LN170..CBU;LN165,RZN168,173 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26044 |
LN165,RZN168,173 T=2.375,MARK 6 |
8 | ||
| 90520-26045 |
LN165,RZN168,173 T=2.425,MARK 7 |
8 | ||
| 90520-26040 |
LN165,RZN168,173 T=2.175,MARK 2 |
8 | ||
| 90520-26043 |
LN165,RZN168,173 T=2.325,MARK 5 |
8 | ||
| 90520-26063 |
RZN168..DCB T=2.20-2.22 |
8 | ||
| 90520-26068 |
RZN168..DCB T=2.50-2.52 |
8 | ||
| 90520-26067 |
RZN168..DCB T=2.48-2.50 |
8 | ||
| 90520-26065 |
RZN168..DCB T=2.24-2.26 |
8 | ||
| 90520-26042 |
LN165,RZN168,173 T=2.275,MARK 4 |
8 | ||
| 90520-26041 |
LN165,RZN168,173 T=2.225,MARK 3 |
8 | ||
| 90520-26038 |
LN165,RZN168,173 T=2.125,MARK 1 |
8 | ||
| 90520-26064 |
RZN168..DCB T=2.22-2.24 |
8 | ||
| 90520-26050 |
LN165,RZN168,173 T=2.44-2.46 |
8 | ||
| 90520-26066 |
RZN168..DCB T=2.26-2.28 |
8 | ||
| 90520-26062 |
RZN168..DCB T=2.18-2.20 |
8 | ||
| 90520-26052 |
LN165,RZN168,173 T=2.28-2.30 |
8 | ||
| 90520-26069 |
RZN168..DCB T=2.52-2.54 |
8 | ||
| 90520-26055 |
LN165,RZN168,173 T=2.34-2.36 |
8 | ||
| 90520-26057 |
LN165,RZN168,173 T=2.38-2.40 |
8 | ||
| 90520-26056 |
LN165,RZN168,173 T=2.36-2.38 |
8 | ||
| 90520-26053 |
LN165,RZN168,173 T=2.30-2.32 |
8 | ||
| 90520-26058 |
LN165,RZN168,173 T=2.40-2.42 |
8 | ||
| 90520-26059 |
LN165,RZN168,173 T=2.42-2.44 |
8 | ||
| 90520-26051 |
LN165,RZN168,173 T=2.46-2.48 |
8 | ||
| 90520-26054 |
LN165,RZN168,173 T=2.32-2.34 |
8 | ||
| 90520-25040 |
LN190,RZN168 T=2.31,MARK 2 |
4 | ||
| 90520-25039 |
LN190,RZN168 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
LN190,RZN168 T=2.33,NO MARK |
4 | ||
| 90520-25044 |
LN190,RZN168 T=2.39,MARK 6 |
4 | ||
| 90520-25045 |
LN190,RZN168 T=2.41,MARK 7 |
4 | ||
| 90520-25048 |
LN190,RZN168 T=2.47,MARK 10 |
4 | ||
| 90520-25047 |
LN190,RZN168 T=2.45,MARK 9 |
4 | ||
| 90520-25042 |
LN190,RZN168 T=2.35,BROWN |
4 | ||
| 90520-25043 |
LN190,RZN168 T=2.37,BLUE |
4 | ||
| 90520-25050 |
LN190,RZN168 T=2.51,MARK B |
4 | ||
| 90520-25046 |
LN190,RZN168 T=2.43,MARK 8 |
4 | ||
| 90520-25049 |
LN190,RZN168 T=2.49,MARK A |
4 | ||
| 90520-25052 |
LN190,RZN168 T=2.55,MARK D |
4 | ||
| 90520-25054 |
LN190,RZN168 T=2.19,MARK D |
4 | ||
| 90520-25051 |
LN190,RZN168 T=2.53,MARK C |
4 | ||
| 90520-25057 |
LN190,RZN168 T=2.25,MARK G |
4 | ||
| 90520-25056 |
LN190,RZN168 T=2.23,MARK F |
4 | ||
| 90520-25058 |
LN190,RZN168 T=2.27,MARK H |
4 | ||
| 90520-25055 |
LN190,RZN168 T=2.21,MARK E |
4 | ||
| 90520-25053 |
LN190,RZN168 T=2.57,MARK E |
4 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26044 |
LN165,RZN168,173 T=2.375,MARK 6 |
8 | ||
| 90520-26045 |
LN165,RZN168,173 T=2.425,MARK 7 |
8 | ||
| 90520-26040 |
LN165,RZN168,173 T=2.175,MARK 2 |
8 | ||
| 90520-26043 |
LN165,RZN168,173 T=2.325,MARK 5 |
8 | ||
| 90520-26063 |
RZN168..DCB T=2.20-2.22 |
8 | ||
| 90520-26068 |
RZN168..DCB T=2.50-2.52 |
8 | ||
| 90520-26067 |
RZN168..DCB T=2.48-2.50 |
8 | ||
| 90520-26065 |
RZN168..DCB T=2.24-2.26 |
8 | ||
| 90520-26042 |
LN165,RZN168,173 T=2.275,MARK 4 |
8 | ||
| 90520-26041 |
LN165,RZN168,173 T=2.225,MARK 3 |
8 | ||
| 90520-26038 |
LN165,RZN168,173 T=2.125,MARK 1 |
8 | ||
| 90520-26064 |
RZN168..DCB T=2.22-2.24 |
8 | ||
| 90520-26050 |
LN165,RZN168,173 T=2.44-2.46 |
8 | ||
| 90520-26066 |
RZN168..DCB T=2.26-2.28 |
8 | ||
| 90520-26062 |
RZN168..DCB T=2.18-2.20 |
8 | ||
| 90520-26052 |
LN165,RZN168,173 T=2.28-2.30 |
8 | ||
| 90520-26069 |
RZN168..DCB T=2.52-2.54 |
8 | ||
| 90520-26055 |
LN165,RZN168,173 T=2.34-2.36 |
8 | ||
| 90520-26057 |
LN165,RZN168,173 T=2.38-2.40 |
8 | ||
| 90520-26056 |
LN165,RZN168,173 T=2.36-2.38 |
8 | ||
| 90520-26053 |
LN165,RZN168,173 T=2.30-2.32 |
8 | ||
| 90520-26058 |
LN165,RZN168,173 T=2.40-2.42 |
8 | ||
| 90520-26059 |
LN165,RZN168,173 T=2.42-2.44 |
8 | ||
| 90520-26051 |
LN165,RZN168,173 T=2.46-2.48 |
8 | ||
| 90520-26054 |
LN165,RZN168,173 T=2.32-2.34 |
8 | ||
| 90520-25040 |
LN190,RZN168 T=2.31,MARK 2 |
4 | ||
| 90520-25039 |
LN190,RZN168 T=2.29,MARK 1 |
4 | ||
| 90520-25041 |
LN190,RZN168 T=2.33,NO MARK |
4 | ||
| 90520-25044 |
LN190,RZN168 T=2.39,MARK 6 |
4 | ||
| 90520-25045 |
LN190,RZN168 T=2.41,MARK 7 |
4 | ||
| 90520-25048 |
LN190,RZN168 T=2.47,MARK 10 |
4 | ||
| 90520-25047 |
LN190,RZN168 T=2.45,MARK 9 |
4 | ||
| 90520-25042 |
LN190,RZN168 T=2.35,BROWN |
4 | ||
| 90520-25043 |
LN190,RZN168 T=2.37,BLUE |
4 | ||
| 90520-25050 |
LN190,RZN168 T=2.51,MARK B |
4 | ||
| 90520-25046 |
LN190,RZN168 T=2.43,MARK 8 |
4 | ||
| 90520-25049 |
LN190,RZN168 T=2.49,MARK A |
4 | ||
| 90520-25052 |
LN190,RZN168 T=2.55,MARK D |
4 | ||
| 90520-25054 |
LN190,RZN168 T=2.19,MARK D |
4 | ||
| 90520-25051 |
LN190,RZN168 T=2.53,MARK C |
4 | ||
| 90520-25057 |
LN190,RZN168 T=2.25,MARK G |
4 | ||
| 90520-25056 |
LN190,RZN168 T=2.23,MARK F |
4 | ||
| 90520-25058 |
LN190,RZN168 T=2.27,MARK H |
4 | ||
| 90520-25055 |
LN190,RZN168 T=2.21,MARK E |
4 | ||
| 90520-25053 |
LN190,RZN168 T=2.57,MARK E |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30021 |
LN190,RZN168 RED PAINTED |
4 | ||
| 37402-30011 |
RZN168 NO PAINT |
4 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30021 |
LN190,RZN168 RED PAINTED |
4 | ||
| 37402-30011 |
RZN168 NO PAINT |
4 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
