RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8903)RN61

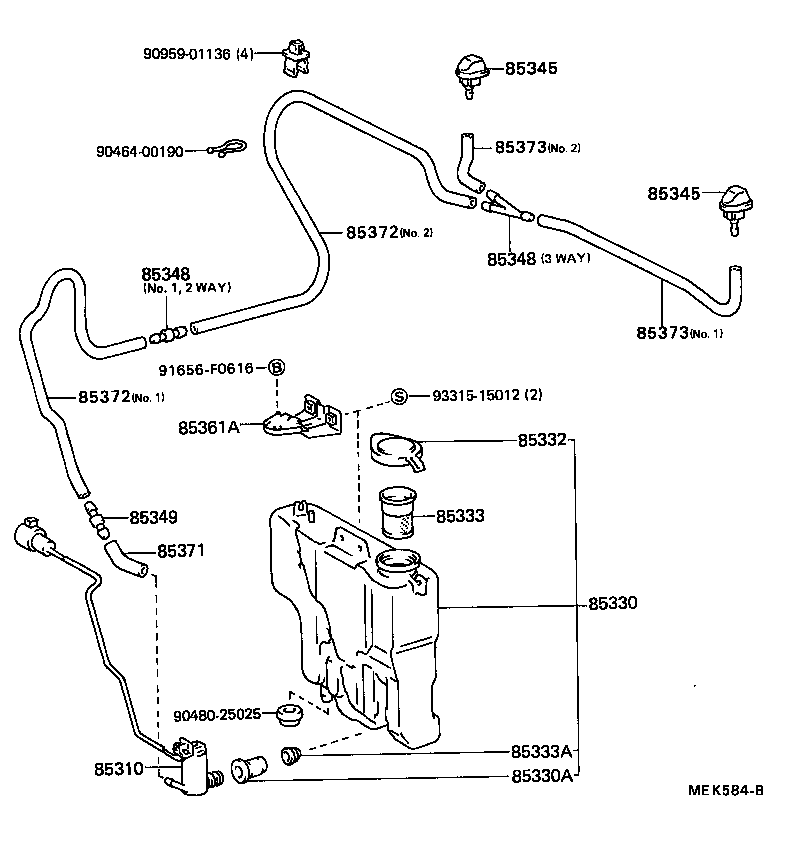

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 85333 85333A 85345 85345 85348 85348 85349 85361A 85371 85372 85372 85373 85373 9046400190 9048025025 9095901136 91656F0616 9331515012
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85310-89110

RN61

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-89123

RN61

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32103

RN61

 1
90099-32089

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-12320

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85333-20010

RN61

 1
85333A - FILTER, WINDSHIELD WASHER JAR, NO.2
85333-20020

RN61

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-89105

LN5#,6#,RN5#,YN5#,6#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-89105

LN5#,6#,RN5#,YN5#,6#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

LN5#,6#,YN5#,6#

2 WAY

 2
85348-12250

LN5#,6#,YN5#,6#

3 WAY

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-14010

RN61

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-89121

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

RN61

*H,L=40

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33079

RN61

L=1400,NO.2

 1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
90099-33080

RN61

*H,L=360,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33079

RN61

L=1400,NO.2

 1
90099-33299

LN5#,6#,YN5#,6#

*H,L=700,NO.2

 1
90446-06013

YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F

*H,L=800,NO.1

 1
90099-33080

RN61

*H,L=360,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LN5#,6#,YN5#,6#

*H,L=450,NO.1,NO.2

 1
90099-33299

RN61

*H,L=100,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

LN5#,6#,YN5#,6#

*H,L=450,NO.1,NO.2

 1
90099-33299

RN61

*H,L=100,NO.1,NO.2

 1
Common parts
90464-00190
90480-25025
90959-01136
91656-F0616
93315-15012
