RN61LG-MSEW (1987)
Toyota Hilux
Production
Dec 1987
-
Mar 1989
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712-8903)RN61

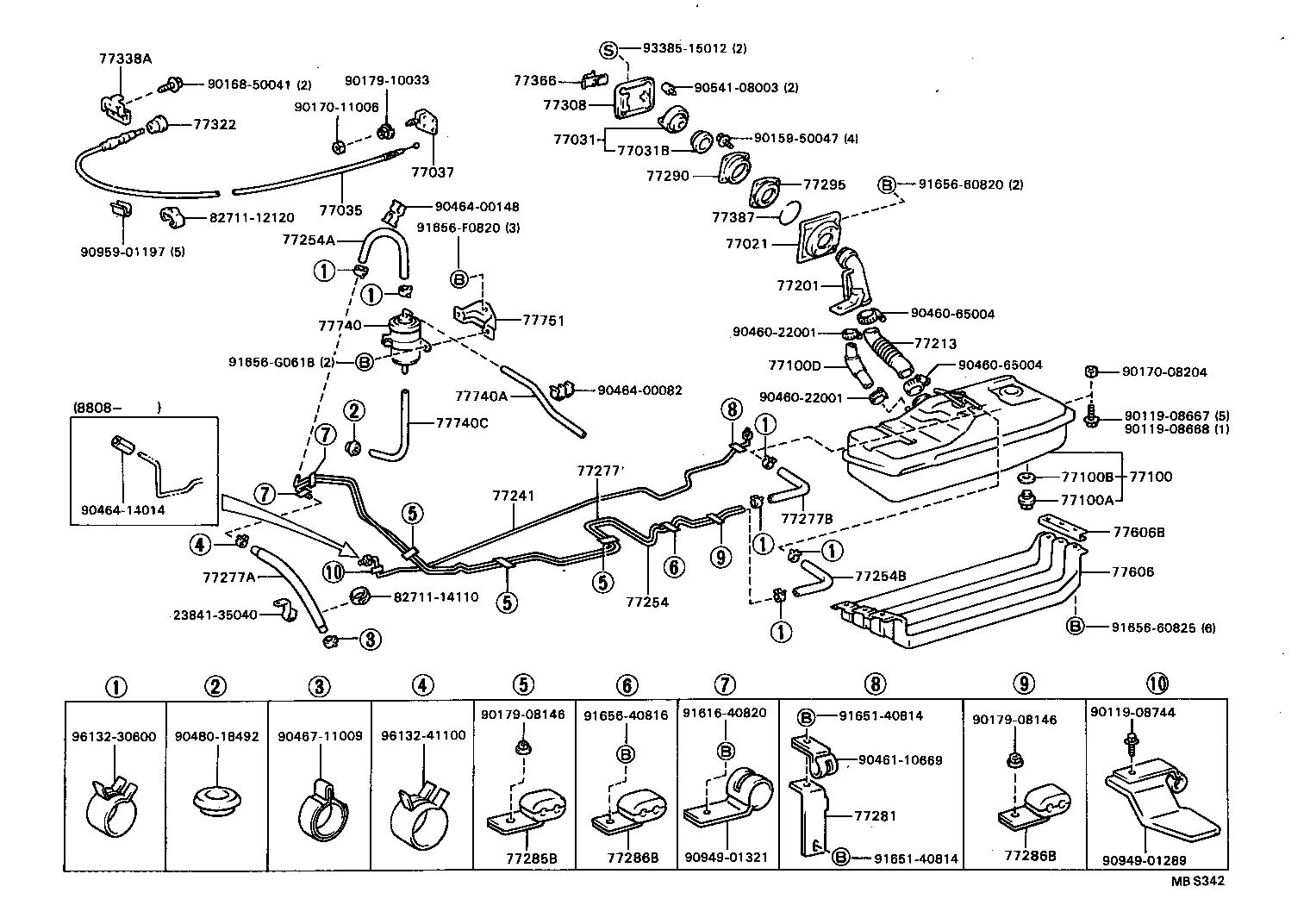

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35070 |
RN61 |
1 | ||
| 77310-35061 |
LN60,61,65..(T1,WG)..(ARL,EUR,GEN)..CBU |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
RN61 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-89107 |
RN61 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35270 |
RN61 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35170 |
RN61 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-35200 |
RN61 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-35340 |
RN61 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
RN61 *H,L=300 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 77209-35150 |
RN61 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-35420 |
RN61 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12034 |
LN5#,6# |
1 | ||
| 23271-35040 |
RN61 *H,L=600 |
1 | ||
| 95332-06040 |
YN50,52,55,56,57,6# *H,L=400 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12145 |
RN61 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35030 |
RN61 |
3 | ||
| 77322 - KNOB, FUEL TANK CAP | ||||
| 77319-89101 |
RN61 |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-89104 |
RN61 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35240 |
RN61 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-08026 |
RN61 L=950 |
1 | ||
| 95411-19995 |
RN61 *H,L=950,MARK=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77754-35180 |
RN61 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35040 |
RN61 |
1 | ||
| Common parts | ||||
| 23841-35040 | ||||
| 82711-12120 | ||||
| 82711-14110 | ||||
| 90119-08667 | ||||
| 90119-08668 | ||||
| 90119-08744 | ||||
| 90159-50047 | ||||
| 90168-50041 | ||||
| 90170-08204 | ||||
| 90170-11006 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90460-22001 | ||||
| 90460-65004 | ||||
| 90461-10669 | ||||
| 90464-00082 | ||||
| 90464-00148 | ||||
| 90464-14014 | ||||
| 90467-11009 | ||||
| 90480-18492 | ||||
| 90541-08003 | ||||
| 90949-01289 | ||||
| 90949-01321 | ||||
| 90959-01197 | ||||
| 91616-40820 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 91656-60820 | ||||
| 91656-60825 | ||||
| 91656-F0820 | ||||
| 91656-G0618 | ||||
| 93385-15012 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
