RN61LG-MSEW (1987)
Toyota Hilux
Production
Dec 1987
-
Mar 1989
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

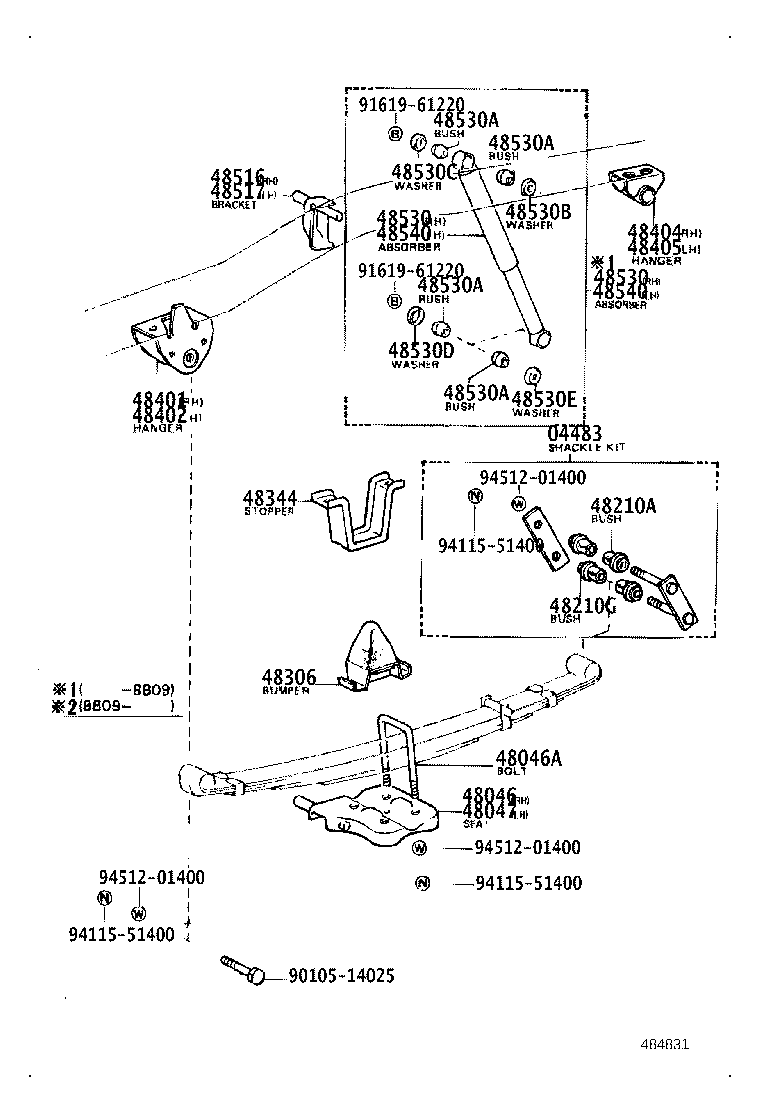

ILLUST NO. 1 OF 2(8712-8903)RN61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35040 |
LN5#,6#,RN5#,61,YN5#,6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35120 |
LN61,RN61,YN63 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14007 |
RN61 L=142 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35120 |
LN61,RN61,YN63 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN5#,6#,RN5#,61,YN5#,6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-35080 |
RN61 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-35020 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-35091 |
RN61 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-35091 |
RN61 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35010 |
LN60,61,65,RN6#,YN6# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-35440 |
RN61 |
1 | ||
| 48531-39885 |
RN61 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-35440 |
RN61 |
1 | ||
| 48531-39885 |
RN61 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
RN61 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
RN61 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
RN61 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19002 |
RN61 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03015 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
LN60,61,65,RN6#,YN6# |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03011 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03015 |
LN60,61,65,RN6#,YN6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-35440 |
RN61 |
1 | ||
| 48531-39885 |
RN61 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-35440 |
RN61 |
1 | ||
| 48531-39885 |
RN61 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 91619-61220 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

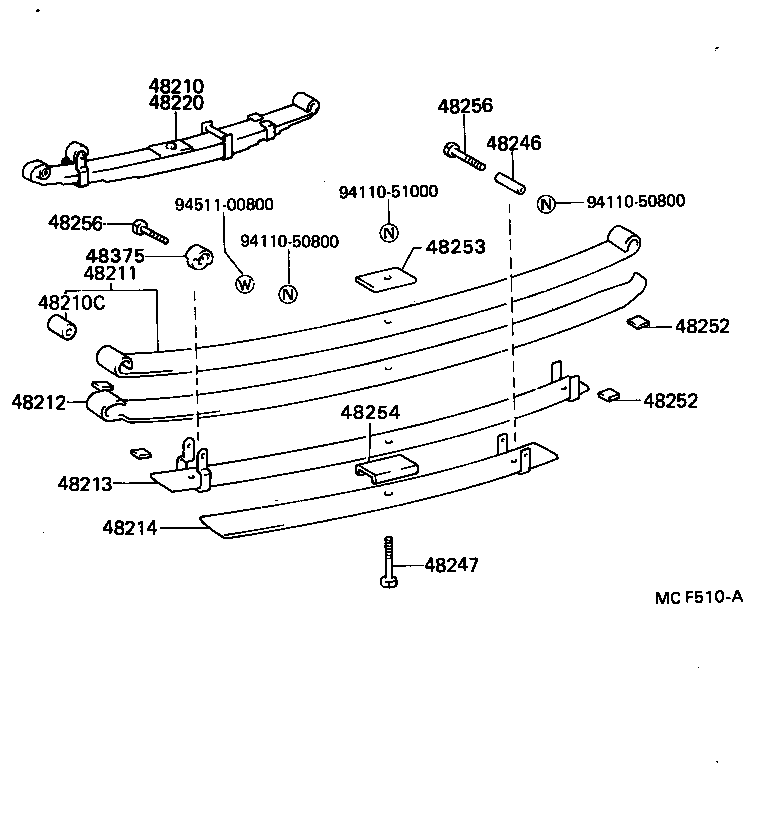

ILLUST NO. 2 OF 2(8712-8903)RN61
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35490 |
RN61 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
RN61,YN57..SR5 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-35490 |
RN61 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35490 |
RN61 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-35490 |
RN61 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-35490 |
RN61 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35490 |
RN61 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35490 |
RN61 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RN61 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
RN61 |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-35490 |
RN61 |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48251-35350 |
RN61 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
RN61 FR |
2 | ||
| 48256-36570 |
RN61 RR |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35360 |
RN61 FR |
2 | ||
| 48256-36570 |
RN61 RR |
2 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94511-00800 | ||||
