RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8903)RN61

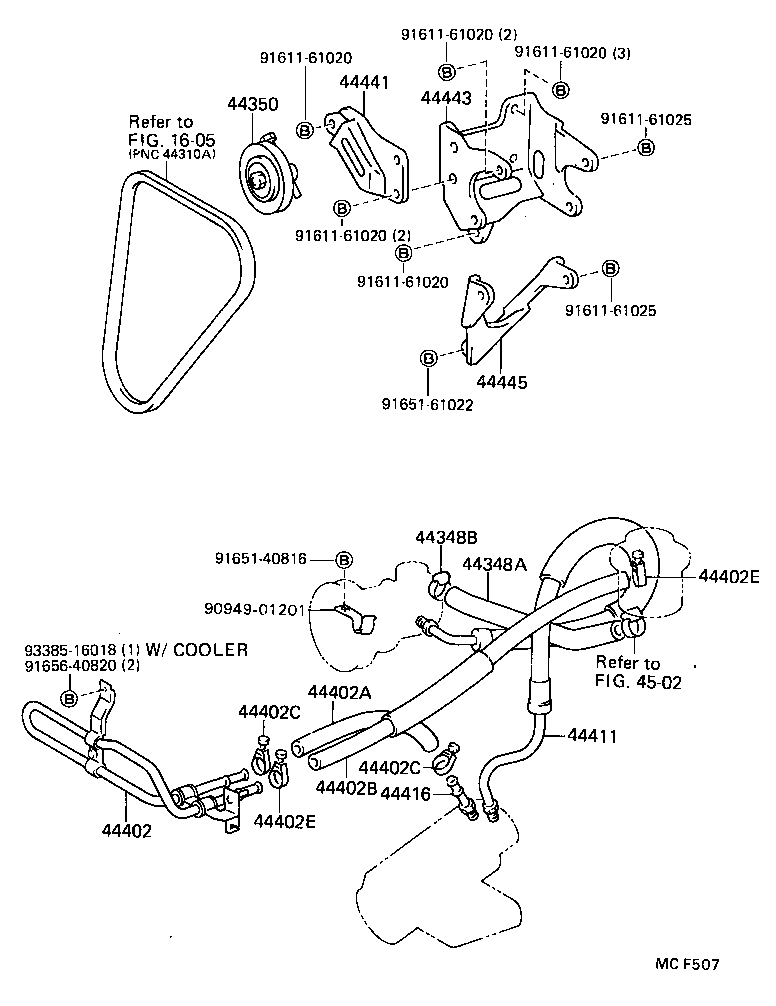

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44350 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44443 44445 4502 9094901201 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161025 9165140816 9165161022 9165640820 9338516018
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-35040

RN61

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18017

RN61

 1
44411 - HOSE, PRESSURE FEED
44411-35140

RN61

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RN61

 1
44443 - BRACKET, PUMP
44443-35020

RN61

 1
44445 - BRACKET, PUMP, LOWER
44445-35010

RN61

 1
Common parts
90949-01201
91611-61020
91611-61025
91651-40816
91651-61022
91656-40820
93385-16018
Linked diagrams
1605
4502
