RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )RN61

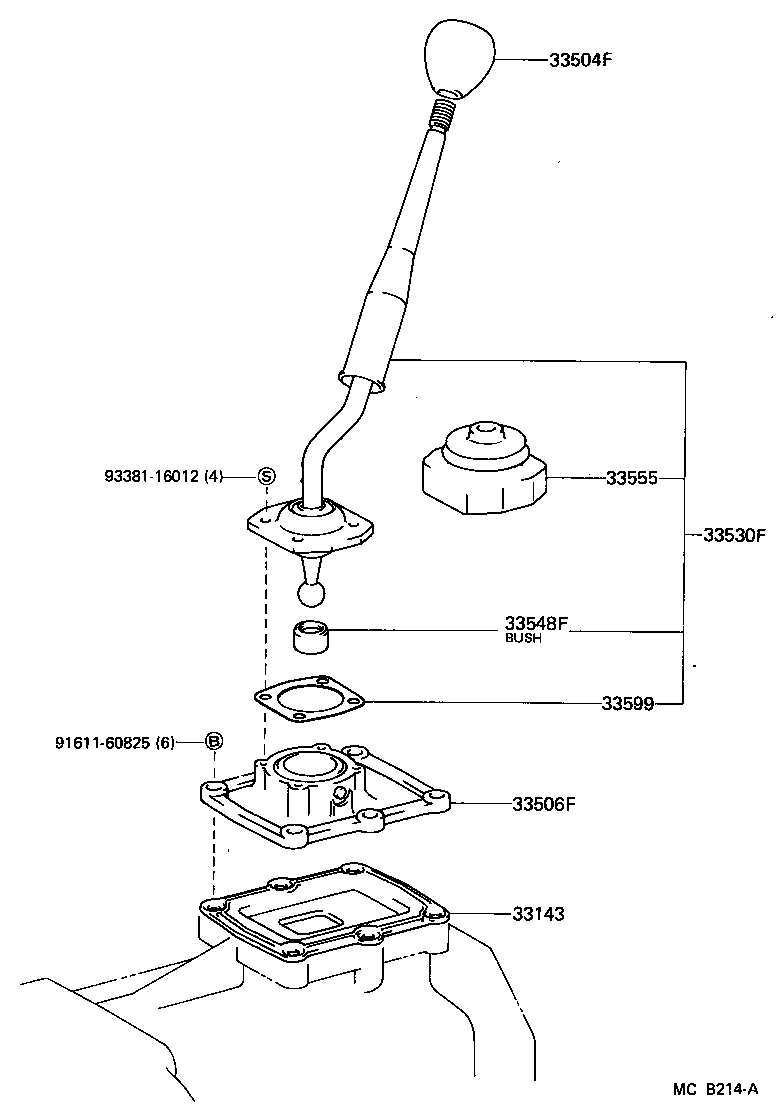

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33599 9161160825 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-35020

RN61

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35070

LN60,61,65,YN6#..MTM

 1
33570-35020

RN61

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35080

RN61

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LN6#,YN57,6#;LN50,55,YN56..5F

 1
33555 - BOOT, SHIFT LEVER
33555-22050

RN61

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

RN61

 1
Common parts
91611-60825
93381-16012
