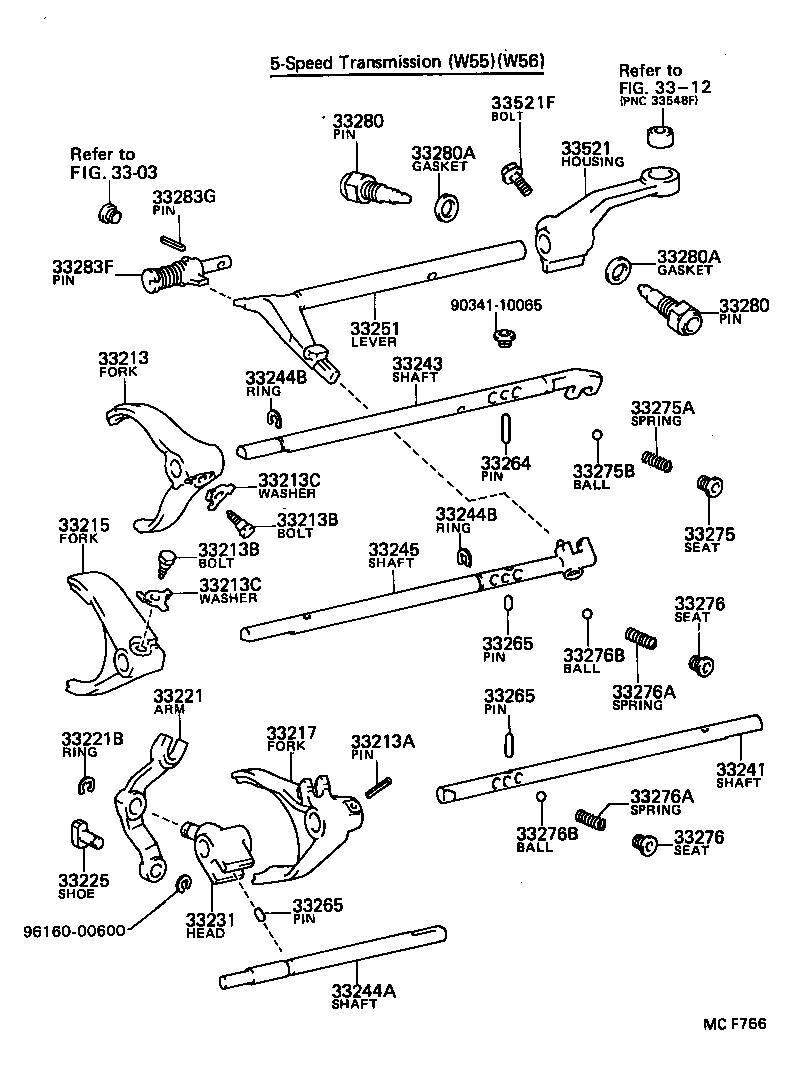

RN61LG-MSEW (1987)
Toyota Hilux
(8712-8903)RN61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-35022 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33212-22010 |
RN61 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
RN61 |
1 | ||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN61 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90113-06005 |
RN61 |
2 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
RN61 |
2 | ||
| 33213C - WASHER, LOCK(FOR SHIFT FORK SET) | ||||
| 90215-09002 |
RN61 |
2 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-22030 |
RN61 |
1 | ||
| 33213-35031 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33217 - FORK, 5TH & REVERSE SHIFT | ||||
| 33214-22030 |
RN61 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-22011 |
RN61 |
1 | ||
| 33221-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-22011 |
RN61 |
1 | ||
| 33225-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-22011 |
RN61 |
1 | ||
| 33231-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-22020 |
RN61 |
1 | ||
| 33244-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33242-22020 |
RN61 |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-22010 |
RN61 |
1 | ||
| 33245-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN61 |
2 | ||
| 90523-12001 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
RN61 |
2 | ||
| 90523-12001 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33240-22020 |
RN61 |
1 | ||
| 33243-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33261-35080 |
LN60,61,65,YN6#..MTM |
1 | ||
| 33251-35070 |
RN61 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN5#,6#,YN56,6#..5F L=13.6,OD=9.5,PIN,L=13.6 |
1 | ||
| 33264-22010 |
RN61 |
1 | ||
| 90360-10003 |
LN5#,6#,YN56,6#..5F OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN5#,6#,YN56,6#..5F L=21.6,PIN,PIN,L=21.6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
RN61 L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
LN5#,6#,YN56,6#..5F L=11.1,OD=4.8 |
2 | ||
| 90250-06007 |
RN61 L=8.6,OD=6,L=8.6 |
1 | ||
| 33265-22010 |
RN61 L=11.2,OD=4,L=11.2 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
RN61 L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
LN5#,6#,YN56,6#..5F L=11.1,OD=4.8 |
2 | ||
| 90250-06007 |
RN61 L=8.6,OD=6,L=8.6 |
1 | ||
| 33265-22010 |
RN61 L=11.2,OD=4,L=11.2 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33266-22010 |
RN61 L=13.6,OD=6,L=13.6 |
1 | ||
| 90250-05020 |
LN5#,6#,YN56,6#..5F L=11.1,OD=4.8 |
2 | ||
| 90250-06007 |
RN61 L=8.6,OD=6,L=8.6 |
1 | ||
| 33265-22010 |
RN61 L=11.2,OD=4,L=11.2 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
RN61 OD=17 |
1 | ||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-13004 |
RN61 L=20.65 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
RN61 |
2 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12005 |
RN61 |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13004 |
RN61 |
2 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-13004 |
RN61 |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RN61 |
2 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
RN61 |
2 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN5#,6#,YN56,6#..5F RH |
1 | ||
| 33280-22020 |
RN61 RH |
1 | ||
| 33280-22030 |
RN61 LH |
1 | ||
| 33280-35030 |
LN5#,6#,YN56,6#..5F LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN5#,6#,YN56,6#..5F RH |
1 | ||
| 33280-22020 |
RN61 RH |
1 | ||
| 33280-22030 |
RN61 LH |
1 | ||
| 33280-35030 |
LN5#,6#,YN56,6#..5F LH |
1 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18008 |
RN61 |
2 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90430-18008 |
RN61 |
2 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-22010 |
RN61 |
1 | ||
| 33280-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
RN61 |
1 | ||
| 90254-05001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35110 |
RN61 |
1 | ||
| 33521-35090 |
LN60,61,65,RN67,YN6#..MTM |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
RN61 |
1 | ||
| 90113-08001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| Common parts | ||||
| 90341-10065 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 3303 | ||||
| 3312 | ||||
