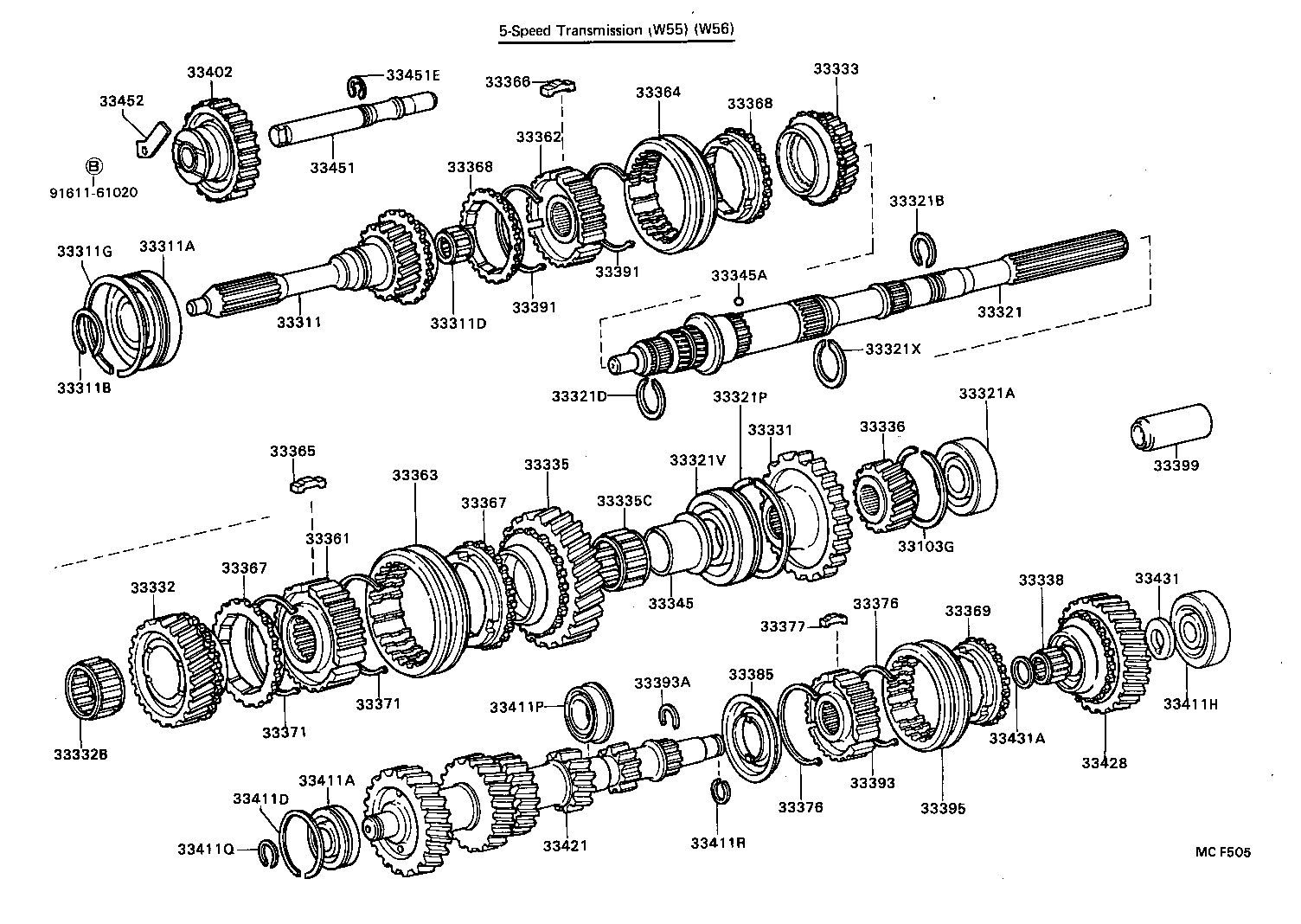

RN61LG-MSEW (1987)
Toyota Hilux
(8712-8903)RN61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103G - RING, HOLE SNAP(FOR REAR BEARING SET) | ||||
| 90521-66002 |
RN61 |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-22024 |
RN61 |
1 | ||
| 33301-26012 |
LN6#,RN5#,YN51,52,57,58,6#..4F,5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
RN61 |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-30215 |
LN5#,6#,YN56,6#..5F T=2.10,MARK 1,T=2.10 |
1 | ||
| 90520-30217 |
LN5#,6#,YN56,6#..5F T=2.20,MARK 3,T=2.20 |
1 | ||
| 90520-30214 |
LN5#,6#,YN56,6#..5F T=2.05,MARK 0,T=2.05 |
1 | ||
| 90520-30216 |
LN5#,6#,YN56,6#..5F T=2.15,MARK 2,T=2.15 |
1 | ||
| 90520-30218 |
LN5#,6#,YN56,6#..5F T=2.25,MARK 4,T=2.25 |
1 | ||
| 90520-33169 |
RN61 T=2.10,MARK 2,T=2.10 |
1 | ||
| 90520-33107 |
RN61 T=2.30-2.35,MARK 11,T=2.30 |
1 | ||
| 90520-33168 |
RN61 T=2.05,MARK 1,T=2.05 |
1 | ||
| 90520-33172 |
RN61 T=2.25,MARK 5,T=2.25 |
1 | ||
| 90520-33170 |
RN61 T=2.15,MARK 3,T=2.15 |
1 | ||
| 90520-30219 |
LN5#,6#,YN56,6#..5F T=2.30,MARK 5,T=2.30 |
1 | ||
| 90520-33132 |
RN61 T=2.35-2.40,MARK 12,T=2.35 |
1 | ||
| 90520-33171 |
RN61 T=2.20,MARK 4,T=2.20 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
RN61 |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
RN61 |
1 | ||
| 90520-76002 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35120 |
RN61 |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
RN61 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25005 |
LN5#,6#,YN56,6#..5F T=2.67-2.72,MARK A,T=2.67 |
1 | ||
| 90520-25009 |
LN5#,6#,YN56,6#..5F T=2.79-2.84,MARK C,T=2.79 |
1 | ||
| 90520-25006 |
LN5#,6#,YN56,6#..5F T=2.73-2.78,MARK B,T=2.73 |
1 | ||
| 90520-25010 |
LN5#,6#,YN56,6#..5F T=2.85-2.90,MARK D,T=2.85 |
1 | ||
| 90520-25013 |
LN5#,6#,YN56,6#..5F T=3.03-3.08,MARK G,T=3.03 |
1 | ||
| 90520-25011 |
LN5#,6#,YN56,6#..5F T=2.91-2.96,MARK E,T=2.91 |
1 | ||
| 90520-25012 |
LN5#,6#,YN56,6#..5F T=2.97-3.02,MARK F,T=2.97 |
1 | ||
| 90520-25016 |
LN5#,6#,YN56,6#..5F T=3.21-3.26,MARK K,T=3.21 |
1 | ||
| 90520-25017 |
LN5#,6#,YN56,6#..5F T=3.27-3.32,MARK L,T=3.27 |
1 | ||
| 90520-25015 |
LN5#,6#,YN56,6#..5F T=3.15-3.20,MARK J,T=3.15 |
1 | ||
| 90520-25014 |
LN5#,6#,YN56,6#..5F T=3.09-3.14,MARK H,T=3.09 |
1 | ||
| 90520-25003 |
RN61 T=2.68,MARK 14,T=2.68 |
1 | ||
| 90520-25271 |
RN61 T=2.49-2.54,MARK 11,T=2.49 |
1 | ||
| 90520-25270 |
RN61 T=2.43-2.48,MARK 10,T=2.43 |
1 | ||
| 90520-25284 |
RN61 T=2.31-2.36,MARK 8,T=2.36 |
1 | ||
| 90520-25272 |
RN61 T=2.55-2.60,MARK 12,T=2.55 |
1 | ||
| 90520-25285 |
RN61 T=2.37-2.42,MARK 9,T=2.37 |
1 | ||
| 90520-25004 |
RN61 T=2.74,MARK 15,T=2.74 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28013 |
LN5#,6#,YN56,6#..5F T=2.05-2.10,MARK F-1,T=2.05 |
1 | ||
| 90520-28010 |
LN5#,6#,YN56,6#..5F T=1.85-1.90,MARK D-1,T=1.85 |
1 | ||
| 90520-28245 |
LN5#,6#,YN56,6#..5F T=1.80-1.85,MARK D,T=1.80 |
1 | ||
| 90520-28012 |
LN5#,6#,YN56,6#..5F T=1.75-1.80,MARK C-1,T=1.75 |
1 | ||
| 90520-28246 |
LN5#,6#,YN56,6#..5F T=1.90-1.95,MARK E,T=1.90 |
1 | ||
| 90520-28011 |
LN5#,6#,YN56,6#..5F T=1.95-2.00,MARK E-1,T=1.95 |
1 | ||
| 90520-28016 |
RN61 T=1.98,MARK 13,T=1.98 |
1 | ||
| 90520-28248 |
LN5#,6#,YN56,6#..5F T=2.00-2.05,MARK F,T=2.00 |
1 | ||
| 90520-28018 |
RN61 T=2.10,MARK 15,T=2.10 |
1 | ||
| 90520-28015 |
RN61 T=1.92,MARK 12,T=1.92 |
1 | ||
| 90520-28014 |
RN61 T=1.86,MARK 11,T=1.86 |
1 | ||
| 90520-28012 |
RN61 T=1.75-1.80,MARK C-1,T=1.75 |
1 | ||
| 90520-28017 |
RN61 T=2.04,MARK 14,T=2.04 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
RN61 T=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-30032 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 90363-35009 |
RN61 |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33001 |
RN61 T=2.61,MARK 17,T=2.61 |
1 | ||
| 90520-33007 |
RN61 T=2.97,MARK 23,T=2.97 |
1 | ||
| 90520-33003 |
RN61 T=2.73,MARK 19,T=2.73 |
1 | ||
| 90520-33108 |
RN61 T=2.40,MARK 13,T=2.40 |
1 | ||
| 90520-33002 |
RN61 T=2.67,MARK 18,T=2.67 |
1 | ||
| 90520-33006 |
RN61 T=2.91,MARK 22,T=2.91 |
1 | ||
| 90520-33004 |
RN61 T=2.79,MARK 20,T=2.79 |
1 | ||
| 90520-33109 |
RN61 T=2.50,MARK 15,T=2.50 |
1 | ||
| 90520-33133 |
RN61 T=2.45,MARK 14,T=2.45 |
1 | ||
| 90520-33005 |
RN61 T=2.85,MARK 21,T=2.85 |
1 | ||
| 90520-33172 |
RN61 T=2.25,MARK 5,T=2.25 |
1 | ||
| 90520-33132 |
RN61 T=2.35-2.40,MARK 12,T=2.35 |
1 | ||
| 90520-33107 |
RN61 T=2.30-2.35,MARK 11,T=2.30 |
1 | ||
| 90520-33134 |
RN61 T=2.55,MARK 16,T=2.55 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22030 |
RN61 |
1 | ||
| 33331-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-35010 |
LN5#,6#,YN6#..5F |
1 | ||
| 33033-22030 |
RN61 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-38002 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 90364-43004 |
RN61 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-28010 |
LN5#,6#,YN6#..5F |
1 | ||
| 33034-22021 |
RN61 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22030 |
RN61 |
1 | ||
| 33032-35010 |
YN58..4FC..IV;LN5#,6#,RN5#,YN51,52,57,58,6#..MTM |
1 | ||
| 33032-28010 |
LN5#,6#,YN6#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43004 |
RN61 |
1 | ||
| 90364-39002 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-22021 |
RN61 |
1 | ||
| 33336-28020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27002 |
RN61 |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
RN61 |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
RN61 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
RN61 |
1 | ||
| 33361-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33362-22020 |
RN61 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-22021 |
RN61 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-35010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33364-22021 |
RN61 |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33366-20011 |
RN61 |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
RN61 |
3 | ||
| 33366-35020 |
LN5#,6#,YN56,6#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN61 |
2 | ||
| 33368-20012 |
LN5#,6#,YN56,57,6#..5F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN61 |
2 | ||
| 33368-20012 |
LN5#,6#,YN56,57,6#..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33368-20013 |
RN61 |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33367-14010 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33368-20013 |
RN61 |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN51,52,56,57,58,6#..5F,5H |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN61 |
2 | ||
| 33371-14031 |
LN5#,6#,YN56,57,6#..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN61 |
2 | ||
| 33371-14031 |
LN5#,6#,YN56,57,6#..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33392-22010 |
RN61 |
2 | ||
| 33371-14010 |
LN5#,6#,RN5#,61,YN51,52,56,57,58,6#..5F |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33392-22010 |
RN61 |
2 | ||
| 33371-14010 |
LN5#,6#,RN5#,61,YN51,52,56,57,58,6#..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-30010 |
LN5#,6#,YN56,6#..5F |
3 | ||
| 33366-14010 |
RN61 |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-22010 |
RN61 |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN61 |
2 | ||
| 33371-14010 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN61 |
2 | ||
| 33371-14010 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-22020 |
RN61 |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24005 |
RN61 T=2.24-2.29,T=2.24 |
1 | ||
| 90520-24003 |
RN61 T=2.12-2.17,T=2.12 |
1 | ||
| 90520-24002 |
RN61 T=2.06-2.11,T=2.06 |
1 | ||
| 90520-24004 |
RN61 T=2.18-2.23,T=2.18 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33395-22011 |
RN61 |
1 | ||
| 33399 - YOKE, TRANSMISSION SLEEVE (MTM) | ||||
| 33399-35030 |
RN61 |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33402-22023 |
RN61 |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25004 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 90365-25014 |
RN61 |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
LN5#,6#,YN56,57,6#..5F T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-22003 |
RN61 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-31002 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33430-22010 |
RN61 |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23090 |
LN5#,6#,YN56,6#..5F T=2.20-2.25,T=2.20 |
1 | ||
| 90520-23143 |
LN5#,6#,YN56,6#..5F T=2.15-2.20,T=2.15 |
1 | ||
| 90520-23089 |
LN5#,6#,YN56,6#..5F T=2.10-2.15,T=2.10 |
1 | ||
| 90520-23115 |
LN5#,6#,YN56,6#..5F T=2.05-2.10,T=2.05 |
1 | ||
| 90520-23144 |
LN5#,6#,YN56,6#..5F T=2.25-2.30,T=2.25 |
1 | ||
| 90520-23146 |
RN61 T=2.35-2.40,T=2.40 |
1 | ||
| 90520-23145 |
LN5#,6#,YN56,6#..5F T=2.30-2.35,T=2.35 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-20009 |
RN61 T=1.96-2.01,MARK 2,T=1.96 |
1 | ||
| 90520-20011 |
RN61 T=2.08-2.13,MARK 4,T=2.08 |
1 | ||
| 90520-20012 |
RN61 T=2.14-2.19,MARK 5,T=2.14 |
1 | ||
| 90520-20008 |
RN61 T=1.90-1.95,MARK 1,T=190 |
1 | ||
| 90520-20013 |
RN61 T=2.20-2.25,MARK 6,T=2.20 |
1 | ||
| 90520-20010 |
RN61 T=2.02-2.07,MARK 3,T=2.02 |
1 | ||
| 90520-20014 |
RN61 T=2.26-2.31,MARK 7,T=2.26 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22050 |
RN61 |
1 | ||
| 33421-26072 |
LN6#,RN5#,YN51,52,57,58,6#..4F,5F |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-28020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33046-22013 |
RN61 |
1 | ||
| 33431 - SPACER, COUNTER GEAR, NO.1 | ||||
| 33431-22030 |
RN61 |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-22020 |
RN61 |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33451-22021 |
RN61 |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
RN61 |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-22020 |
RN61 |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
