RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8903)22REC

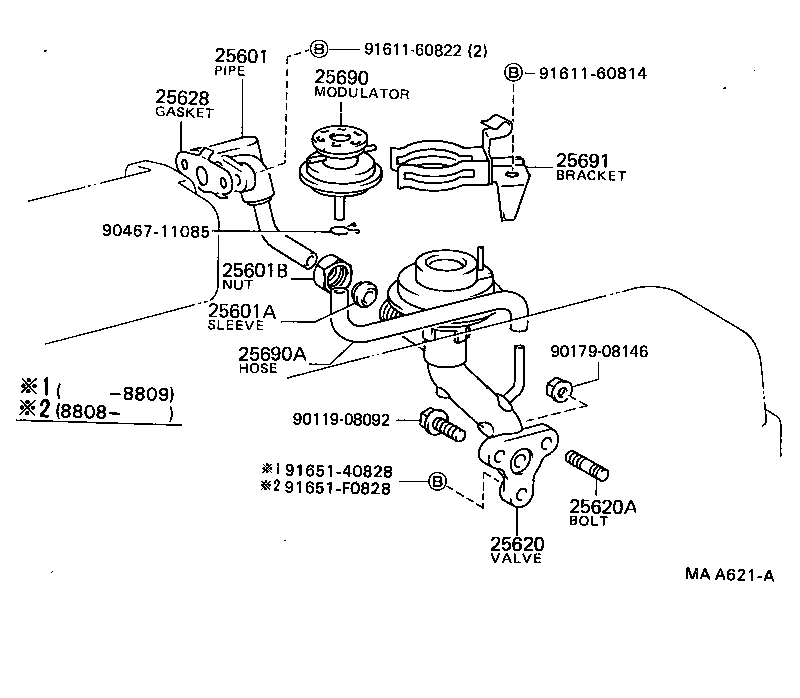

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25620A 25628 25690 25690A 25691 9011908092 9017908146 9046711085 9161160814 9161160822 9165140828 91651F0828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-35050

22REC..RN61

 1
25601-35010

22REC..RN61

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

22REC..RN61

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

22REC..RN61

 1
25620 - VALVE ASSY, EGR
25620-35130

22REC..RN61

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08207

22REC..RN61

 1
25628 - GASKET, EGR INLET
25628-35020

22REC..RN61

 1
25628-35010

22REC..RN61

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-35100

22REC..RN61

 1
25870-35130

22REC..RN61

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
25695-35010

22REC..RN61

 1
25695-35020

22REC..RN61

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-35021

22REC..RN61

 1
25691-35030

22REC..RN61

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-60814
91611-60822
91651-40828
91651-F0828
