RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

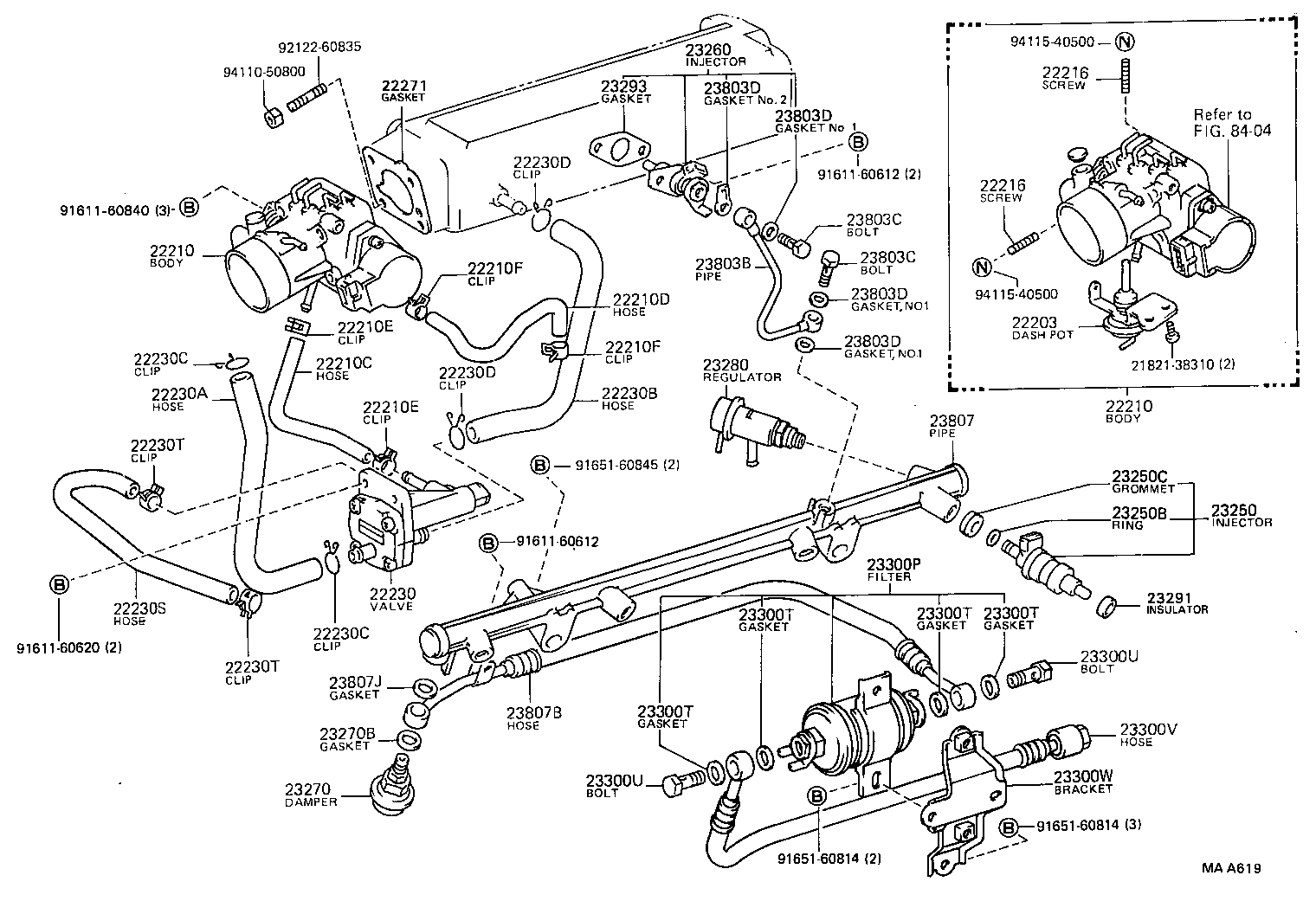

ILLUST NO. 1 OF 2(8712-8808)22REC

Click highlighted areas on diagram

diagram 2182138310 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22216 22216 22230 22230A 22230B 22230C 22230C 22230D 22230D 22230S 22230T 22230T 22271 23250 23250B 23250C 23260 23270 23270B 23280 23291 23293 23300P 23300T 23300T 23300T 23300T 23300U 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23807B 23807J 8404 9161160612 9161160612 9161160620 9161160840 9165160814 9165160814 9165160845 9212260835 9411050800 9411540500 9411540500
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35050

22REC..RN61

 1
22202-35271

22REC..RN61

 1
22210 - BODY ASSY, THROTTLE
22210-35200

22REC..RN61

 1
22210-35270

22REC..RN61

 1
22210 - BODY ASSY, THROTTLE
22210-35200

22REC..RN61

 1
22210-35270

22REC..RN61

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35030

22REC..RN61

 1
16267-35010

22REC..RN61

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35030

22REC..RN61

 1
16264-35012

22REC..RN61

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RN61

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RN61

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RN61

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RN61

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RN61

 2
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RN61

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35010

22REC..RN61

 1
22230-35030

22REC..RN61

 1
22230A - HOSE, AUXILIARY AIR VALVE, NO.1
22233-35010

22REC..RN61

 1
22230B - HOSE, AUXILIARY AIR VALVE, NO.2
22234-35010

22REC..RN61

 1
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RN61

 2
22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2
90467-19003

22REC..RN61

 2
22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
16281-35010

22REC..RN61

 1
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RN61

 2
22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
90467-13001

22REC..RN61

 2
22271 - GASKET, THROTTLE BODY
22271-35010

22REC..RN61

 1
22271-35020

22REC..RN61

 1
23250 - INJECTOR ASSY, FUEL
23209-35030

22REC..RN61

 4
23209-35040

22REC..RN61

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22REC..RN61

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-39055

22REC..RN61

 1
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-42010

22REC..RN61

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
90430-17002

22REC..RN61

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35030

22REC..RN61

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22REC..RN61

 4
23293 - GASKET, COLD START INJECTOR
23293-35020

22REC..RN61

 1
23293-35010

22REC..RN61

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39035

22REC..RN61

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
23906-35010

22REC..RN61

 1
90923-01293

22REC..RN61

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22REC..RN61

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22REC..RN61

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RN61

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RN61

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35020

22REC..RN61

 1
23807B - HOSE, FUEL DELIVERY PIPE
90923-01326

22REC..RN61

 1
23807J - GASKET, PIPE FUEL DELIVARY INLET
90430-14002

22REC..RN61

 1
Common parts
21821-38310
91611-60612
91611-60620
91611-60840
91651-60814
91651-60845
92122-60835
94110-50800
94115-40500
Linked diagrams
8404

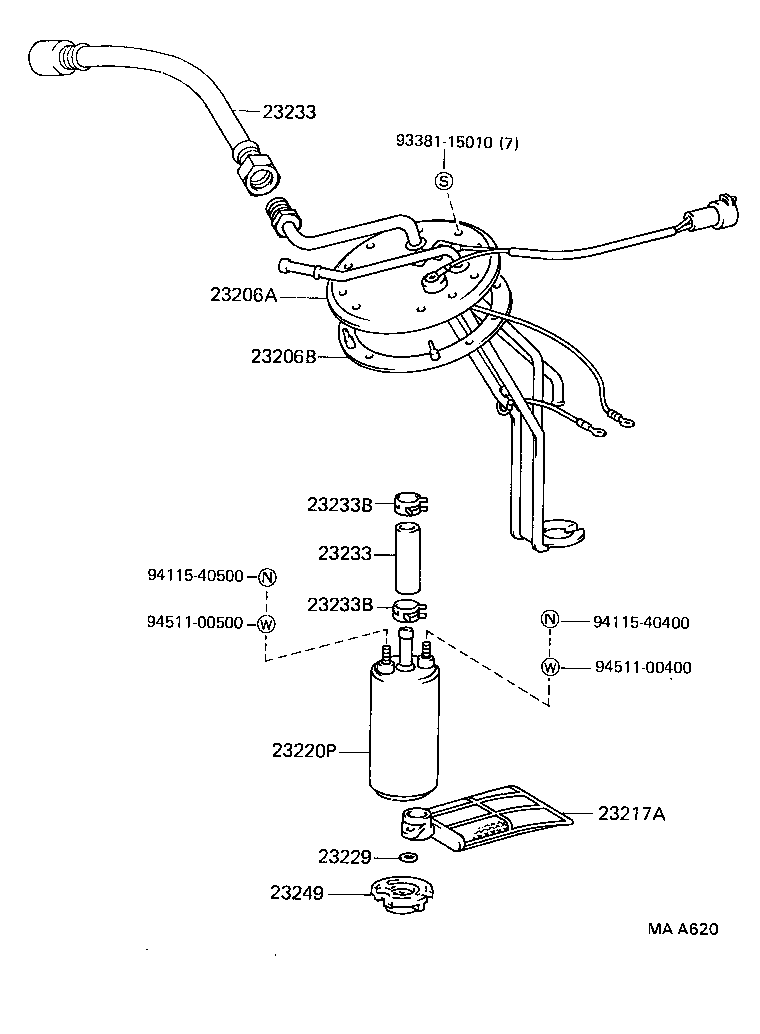

ILLUST NO. 2 OF 2(8712-8903)22REC

Click highlighted areas on diagram

diagram 23206A 23206B 23217A 23220P 23229 23233 23233 23233B 23233B 23249 9338115010 9411540400 9411540500 9451100400 9451100500
Part # Description Qty Price
Common parts
93381-15010
94115-40400
94115-40500
94511-00400
94511-00500

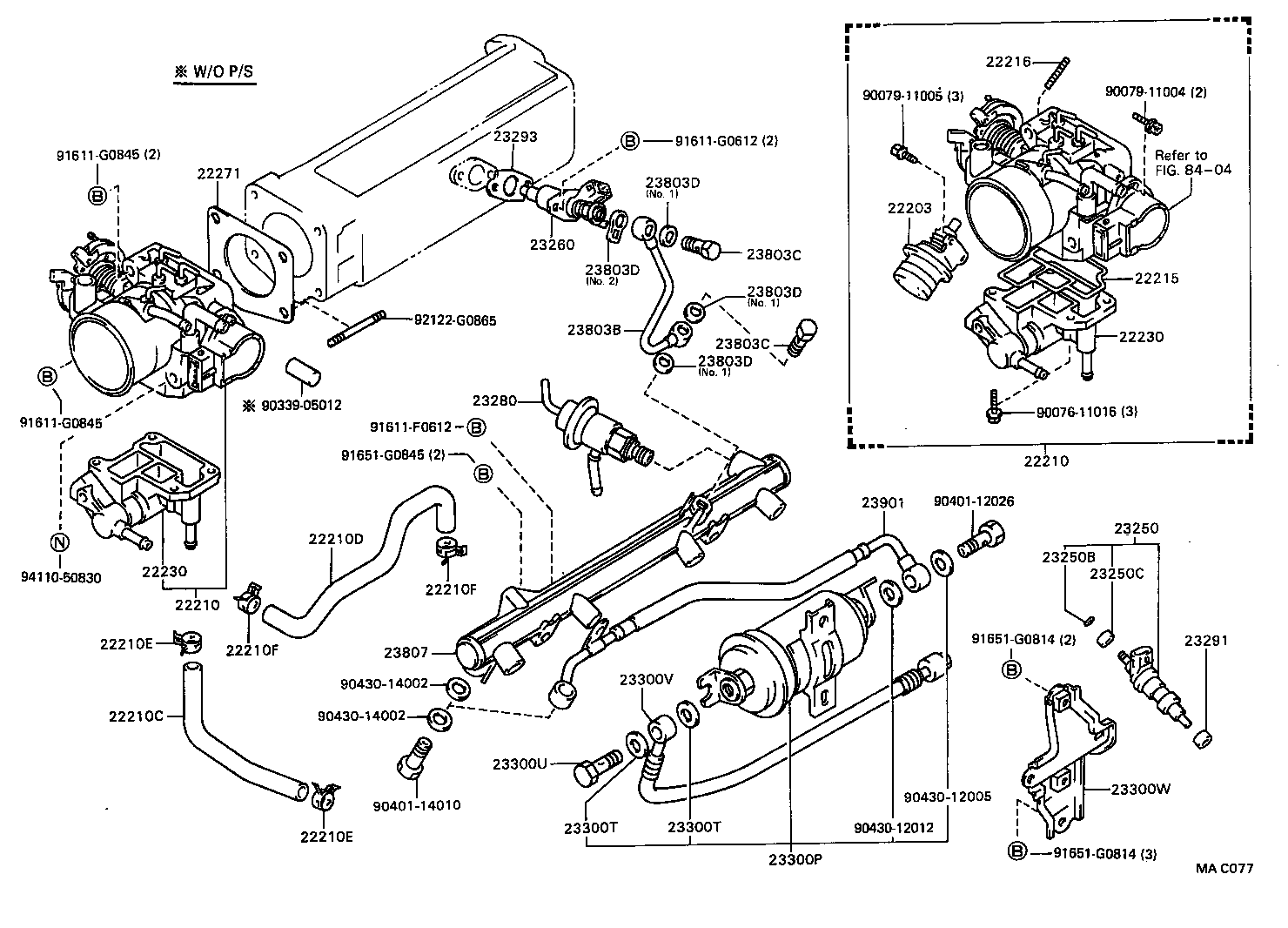

ILLUST NO. 1 OF 2(8808-8903)22REC

Click highlighted areas on diagram

diagram 22203 22210 22210 22210C 22210D 22210E 22210E 22210F 22210F 22215 22216 22230 22230 22271 23250 23250B 23250C 23260 23280 23291 23293 23300P 23300T 23300T 23300U 23300V 23300W 23803B 23803C 23803C 23803D 23803D 23803D 23803D 23807 23901 8404 9007611016 9007911004 9007911005 9033905012 9040112026 9040114010 9043012005 9043012012 9043014002 9043014002 91611F0612 91611G0612 91611G0845 91611G0845 91651G0814 91651G0814 91651G0845 92122G0865 9411050830
Part # Description Qty Price
22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY)
22202-35050

22REC..RN61

 1
22202-35271

22REC..RN61

 1
22210 - BODY ASSY, THROTTLE
22210-35200

22REC..RN61

 1
22210-35270

22REC..RN61

 1
22210 - BODY ASSY, THROTTLE
22210-35200

22REC..RN61

 1
22210-35270

22REC..RN61

 1
22210C - HOSE, WATER BY-PASS, NO.1
16267-35030

22REC..RN61

 1
16267-35010

22REC..RN61

 1
22210D - HOSE, WATER BY-PASS, NO.2
16264-35030

22REC..RN61

 1
16264-35012

22REC..RN61

 1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RN61

 2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13001

22REC..RN61

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RN61

 2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13001

22REC..RN61

 2
22215 - GASKET, THROTTLE BODY COVER
22215-35270

22REC..RN61

 1
22216 - SCREW, DASH POT ADJUSTING
22216-74010

22REC..RN61

 2
22230 - VALVE ASSY, AUXILIARY AIR
22230-35010

22REC..RN61

 1
22230-35030

22REC..RN61

 1
22230 - VALVE ASSY, AUXILIARY AIR
22230-35010

22REC..RN61

 1
22230-35030

22REC..RN61

 1
22271 - GASKET, THROTTLE BODY
22271-35010

22REC..RN61

 1
22271-35020

22REC..RN61

 1
23250 - INJECTOR ASSY, FUEL
23209-35030

22REC..RN61

 4
23209-35040

22REC..RN61

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

22REC..RN61

 4
23260 - INJECTOR ASSY, COLD START FUEL
23260-39055

22REC..RN61

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-35030

22REC..RN61

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

22REC..RN61

 4
23293 - GASKET, COLD START INJECTOR
23293-35020

22REC..RN61

 1
23293-35010

22REC..RN61

 1
23300P - FILTER, FUEL(FOR EFI)
23300-39035

22REC..RN61

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
23906-35010

22REC..RN61

 1
90923-01293

22REC..RN61

 1
23300W - BRACKET, FUEL FILTER
23264-35020

22REC..RN61

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23801-35010

22REC..RN61

 1
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RN61

 2
23803C - GASKET(NOZZLE LEKAGE PIPE NO.3)
90401-08003

22REC..RN61

 2
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-08011

22REC..RN61

NO.2

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-35020

22REC..RN61

 1
23901 - TUBE SUB-ASSY, FUEL
23901-35010

22REC..RN61

 1
Common parts
90076-11016
90079-11004
90079-11005
90339-05012
90401-12026
90401-14010
90430-12005
90430-12012
90430-14002
91611-F0612
91611-G0612
91611-G0845
91651-G0814
91651-G0845
92122-G0865
94110-50830
Linked diagrams
8404
