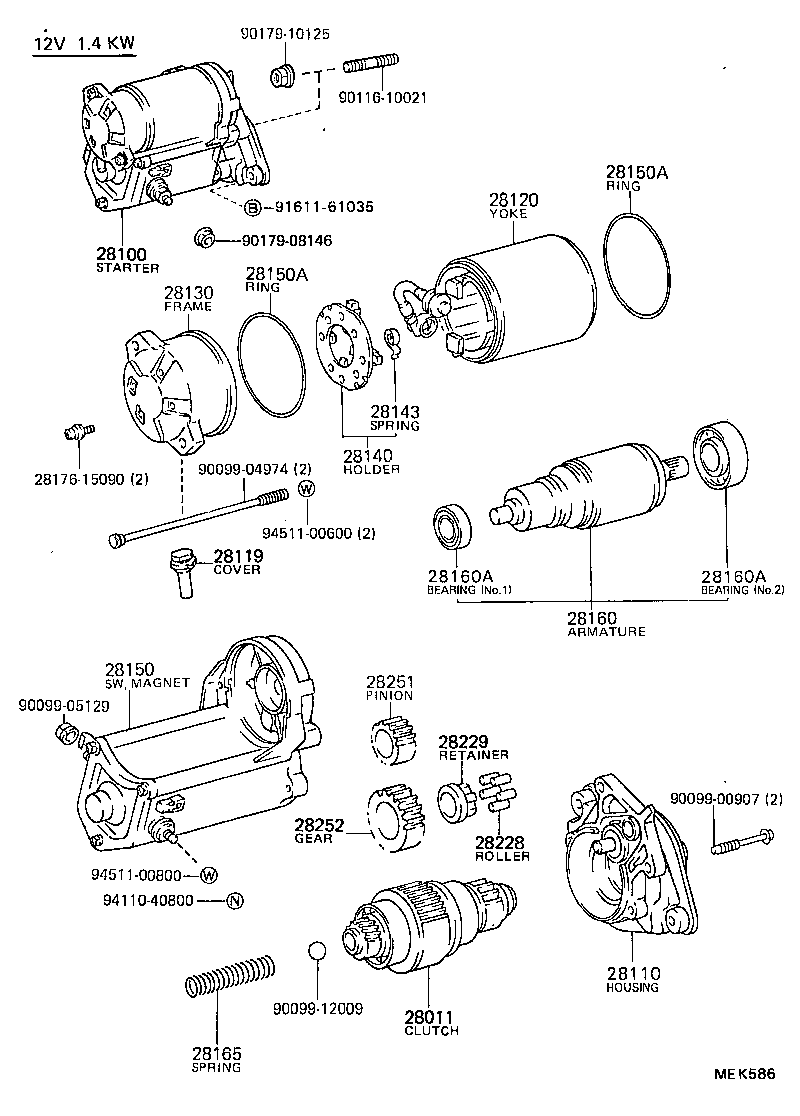

RN61LG-MSEW (1987)
Toyota Hilux
(8308-9508)L,2L..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R,1Y#,2Y#,3Y,4Y#..RN5#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| 28011-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28011-35030 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-35040 |
22REC..RN61 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28110-35020 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28199-15090 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
L,2L..LN5#,6# 12V 2.0KW |
4 | ||
| 90099-17112 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R#,1Y#,2Y#,3Y,4YC,4YE..RN50,55,61,YN5#,60,63,65..4F,4FC,4H,5F 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-35040 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28150-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28254-45020 |
22R..RN58..SR5;22R#,1Y#,2Y#,3Y,4Y#..RN50,55,6#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00901 | ||||
| 90099-02211 | ||||
| 90099-04955 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-14058 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94115-51200 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
(8712-8903)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R,1Y#,2Y#,3Y,4Y#..RN5#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| 28011-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28011-35030 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-35040 |
22REC..RN61 12V 1.4KW,12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28110-35020 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28119-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28199-15090 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-35020 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28140-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
L,2L..LN5#,6# 12V 2.0KW |
4 | ||
| 90099-17112 |
4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R#,1Y#,2Y#,3Y,4YC,4YE..RN50,55,61,YN5#,60,63,65..4F,4FC,4H,5F 12V 1.0KW,1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-35040 |
22REC..RN61 12V 1.4KW |
1 | ||
| 28150-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28160-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10131 |
L,2L..LN5#,6# 12V 2.0KW,NO.2 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28253-54070 |
L,2L..LN5#,6# 12V 2.0KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-54070 |
L,2L..LN5#,6# 12V 2.0KW |
1 | ||
| 28254-45020 |
22R..RN58..SR5;22R#,1Y#,2Y#,3Y,4Y#..RN50,55,6#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
