RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8903)22REC

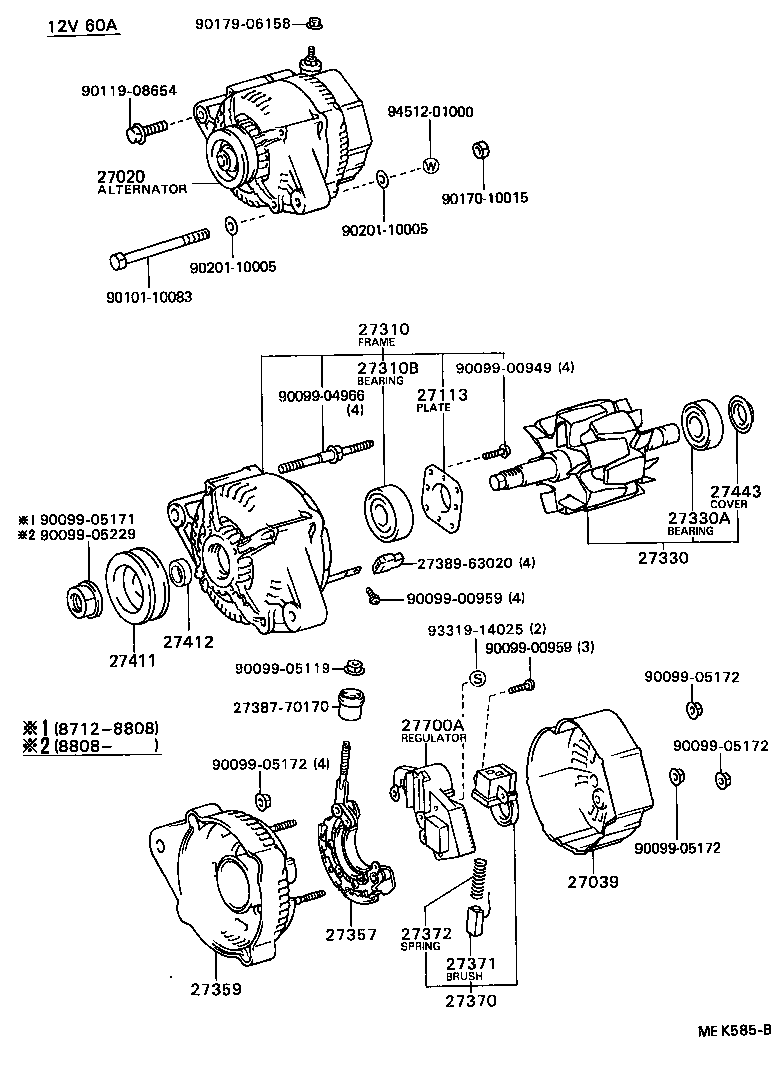

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27412 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9009905229 9010110083 9011908654 9017010015 9017906158 9020110005 9020110005 9331914025 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35061

22REC..RN61

12V 60A,12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35120

22REC..RN61

12V 60A

 1
27310-35061

22REC..RN61

12V 60A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54010

L,2L..LN5#,6#

12V 40A,55A

 1
27371 - BRUSH, ALTERNATOR
27371-56070

L,2L..LN5#,6#

12V 40A,55A,60A

 2
27371-31011

22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#

12V 40A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#

12V 40A,55A

 2
27372-56070

L,2L,3L..LN5#,6#

12V 40A,55A,60A

 2
27411 - PULLEY, ALTERNATOR
27411-35061

22REC..RN61

12V 60A

 1
27411-35062

22REC..RN61

12V 60A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-35100

22REC..RN61

12V 60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

22REC..RN61

 1
27700-72030

L,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6#

 1
27700-70030

22REC,4YE..RN61,YN63

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90099-05229
90101-10083
90119-08654
90170-10015
90179-06158
90201-10005
93319-14025
94512-01000
