RN61LG-MSEW (1987)
Toyota Hilux

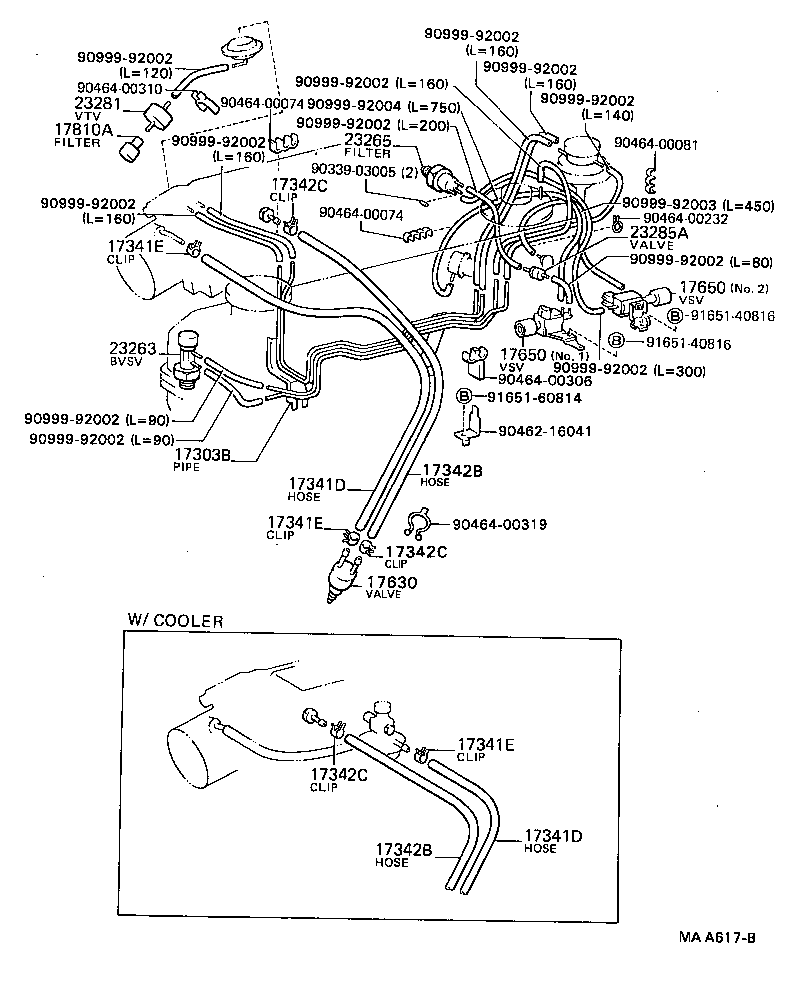

(8712-8808)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35190 |
22REC..RN61 |
1 | ||
| 17303-35250 |
22REC..RN61 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-35180 |
22REC..RN61 |
1 | ||
| 17341-35120 |
22REC..RN61 |
1 | ||
| 17342-35050 |
22REC..RN61 W/COOLER |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-35180 |
22REC..RN61 |
1 | ||
| 17341-35120 |
22REC..RN61 |
1 | ||
| 17342-35050 |
22REC..RN61 W/COOLER |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RN61 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RN61 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12084 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12066 |
22REC..RN61 NO.2 |
1 | ||
| 90910-12067 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12085 |
22REC..RN61 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12084 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12066 |
22REC..RN61 NO.2 |
1 | ||
| 90910-12067 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12085 |
22REC..RN61 NO.2 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
22REC..RN61 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05078 |
22REC..RN61 |
1 | ||
| 25820-13010 |
22REC..RN61 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90462-16041 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00232 | ||||
| 90464-00306 | ||||
| 90464-00310 | ||||
| 90464-00319 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||

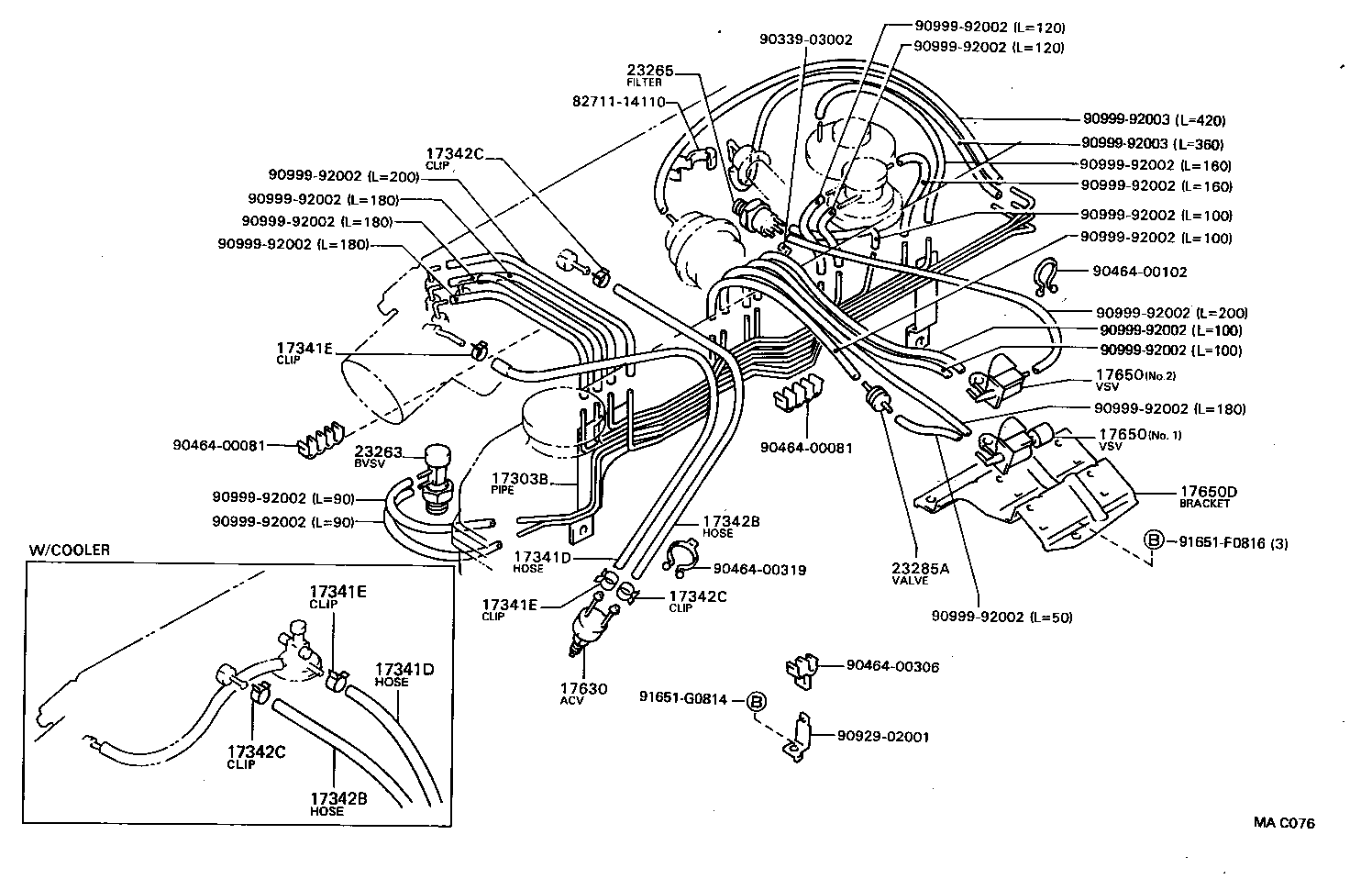

(8808-8903)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-35190 |
22REC..RN61 |
1 | ||
| 17303-35250 |
22REC..RN61 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-35180 |
22REC..RN61 |
1 | ||
| 17341-35120 |
22REC..RN61 |
1 | ||
| 17342-35050 |
22REC..RN61 W/COOLER |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-35180 |
22REC..RN61 |
1 | ||
| 17341-35120 |
22REC..RN61 |
1 | ||
| 17342-35050 |
22REC..RN61 W/COOLER |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-30600 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 96132-41000 |
22REC..RN61 VALVE SIDE |
1 | ||
| 96132-41100 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RN61 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-35050 |
22REC..RN61 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
22REC..RN61 |
2 | ||
| 96132-41000 |
22REC..RN61 |
2 | ||
| 96132-30400 |
22REC..RN61 W/COOLER |
2 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12084 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12066 |
22REC..RN61 NO.2 |
1 | ||
| 90910-12067 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12085 |
22REC..RN61 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12084 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12066 |
22REC..RN61 NO.2 |
1 | ||
| 90910-12067 |
22REC..RN61 NO.1 |
1 | ||
| 90910-12085 |
22REC..RN61 NO.2 |
1 | ||
| 17650D - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-35020 |
22REC..RN61 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05078 |
22REC..RN61 |
1 | ||
| 25820-13010 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90339-03002 | ||||
| 90464-00081 | ||||
| 90464-00102 | ||||
| 90464-00306 | ||||
| 90464-00319 | ||||
| 90929-02001 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-F0816 | ||||
| 91651-G0814 | ||||
