RN61LG-MSEW (1987)

Toyota Hilux

Production Dec 1987 - Mar 1989
Engine 22REC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8903)22REC

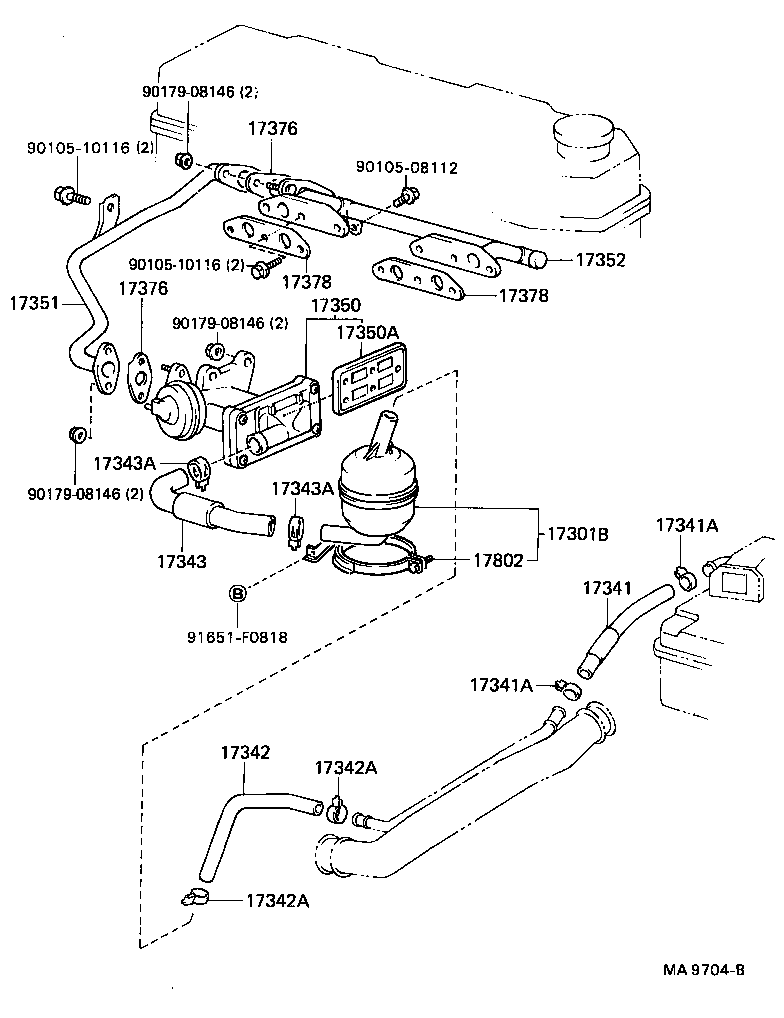

Click highlighted areas on diagram

diagram 17301B 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17343A 17350 17350A 17351 17352 17376 17376 17378 17378 17802 9010508112 9010510116 9010510116 9017908146 9017908146 9017908146 91651F0818
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-35040

22REC..RN61

 1
17301-35050

22REC..RN61

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35150

22REC..RN61

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22REC..RN61

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22REC..RN61

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-35130

22REC..RN61

 1
17342-35120

22REC..RN61

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26002

22REC..RN61

 2
90467-26005

22REC..RN61

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26002

22REC..RN61

 2
90467-26005

22REC..RN61

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35070

22REC..RN61

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26002

22REC..RN61

 2
90467-26005

22REC..RN61

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26002

22REC..RN61

 2
90467-26005

22REC..RN61

 2
17350 - VALVE ASSY, REED
17350-35050

22REC..RN61

 1
17350A - VALVE SUB-ASSY, REED
17305-35030

22REC..RN61

 1
17351 - MANIFOLD, AIR INJECTION
17351-35050

22REC..RN61

 1
17352 - MANIFOLD, AIR INJECTION, NO.2
17352-35090

22REC..RN61

SANOU

 1
17352-35080

22REC..RN61

MARUYASU

 1
17376 - GASKET, AIR TUBE, NO.1
17376-35030

22REC..RN61

 2
17376 - GASKET, AIR TUBE, NO.1
17376-35030

22REC..RN61

 2
17378 - GASKET AIR TUBE, NO.3
17378-35010

22REC..RN61

 2
17378-35020

22REC..RN61

 2
17378 - GASKET AIR TUBE, NO.3
17378-35010

22REC..RN61

 2
17378-35020

22REC..RN61

 2
17802 - BRACKET SUB-ASSY, RESONATOR
17802-35011

22REC..RN61

 1
17802-35010

22REC..RN61

 1
Common parts
90105-08112
90105-10116
90179-08146
91651-F0818
