RN61LG-MSEW (1987)
Toyota Hilux
ILLUST NO. 1 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35350 |
22REC..RN61 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35350 |
22REC..RN61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35150 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 3(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-89106 |
22REC..RN61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-35080 |
22REC..RN61 W(HOT AIR INTAKE) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-35080 |
22REC..RN61 W(HOT AIR INTAKE) |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-89116 |
22REC..RN61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-89116 |
22REC..RN61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
L,2L..LN50,51,55,56,60,61,65 |
1 | ||
| Common parts | ||||
| 66323-89104 | ||||
| 90119-06072 | ||||
| 90119-06098 | ||||
| 90179-06060 | ||||
| 90201-07470 | ||||
| 90950-01027 | ||||

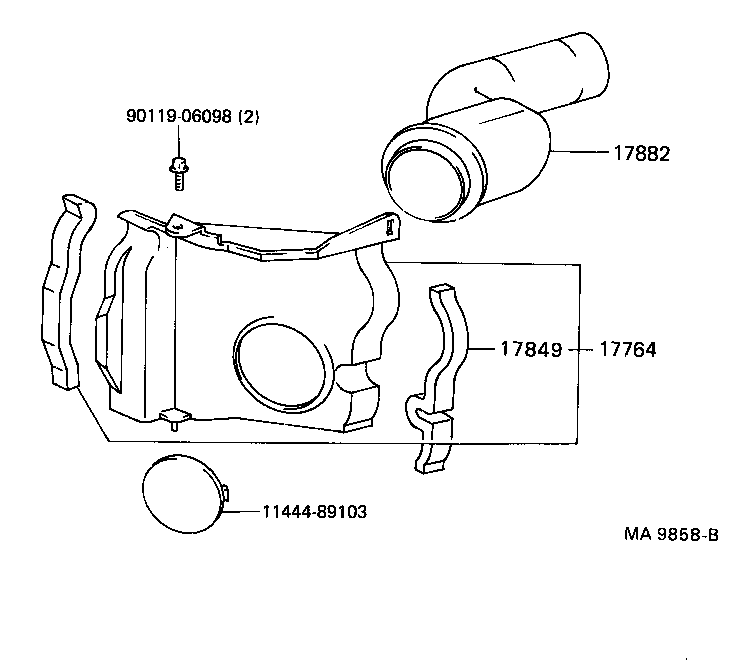

ILLUST NO. 2 OF 2(8712-8903)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-89106 |
22REC..RN61 |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-89104 |
22REC..RN61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-89116 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 11444-89103 | ||||
| 90119-06098 | ||||

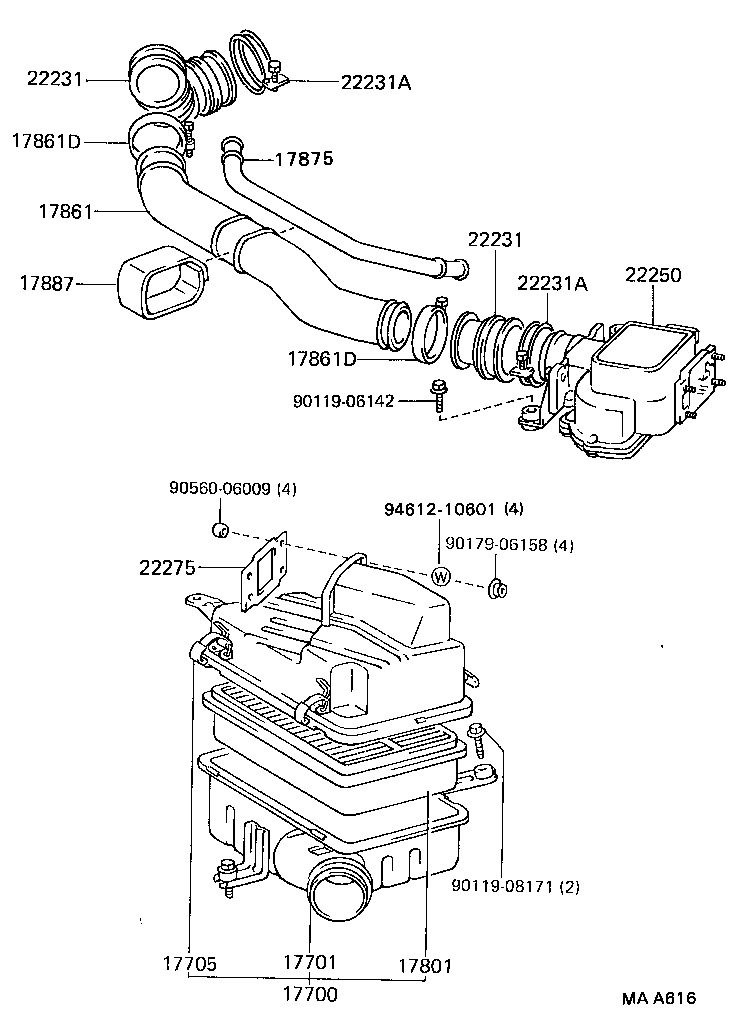

ILLUST NO. 1 OF 2(8712-8808)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35350 |
22REC..RN61 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-35210 |
22REC..RN61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35150 |
22REC..RN61 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-35080 |
22REC..RN61 |
1 | ||
| 17861-35070 |
22REC..RN61 |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-75001 |
22REC..RN61 |
1 | ||
| 90460-75001 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 90460-80001 |
22REC..RN61 AIR FLOWMETER SIDE |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-75001 |
22REC..RN61 |
1 | ||
| 90460-75001 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 90460-80001 |
22REC..RN61 AIR FLOWMETER SIDE |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-35010 |
22REC..RN61 |
1 | ||
| 17887 - COVER, AIR CLEANER HOSE | ||||
| 17887-35030 |
22REC..RN61 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-35011 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 22231-41030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231-35030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-35011 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 22231-41030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231-35030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10800 |
22REC..RN61 |
2 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10800 |
22REC..RN61 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-35020 |
22REC..RN61 |
1 | ||
| 22250-35060 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 90119-06142 | ||||
| 90119-08171 | ||||
| 90179-06158 | ||||
| 90560-06009 | ||||
| 94612-10601 | ||||

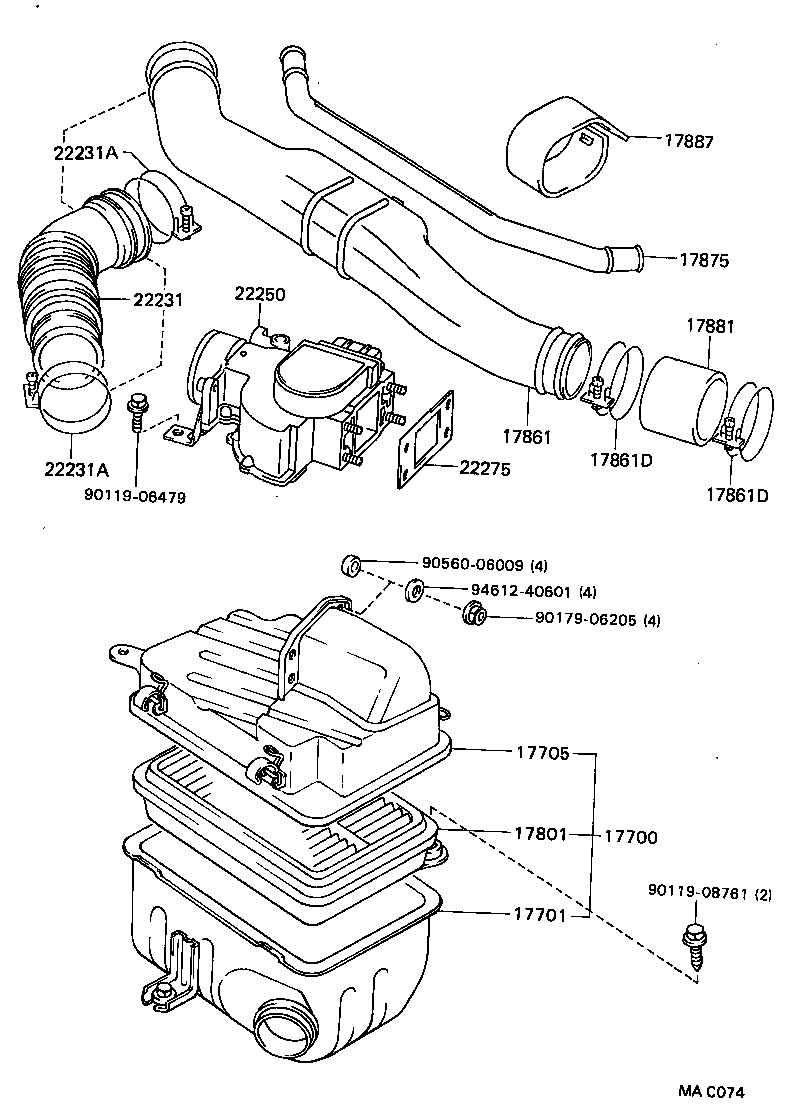

ILLUST NO. 1 OF 2(8808-8903)22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35350 |
22REC..RN61 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-35210 |
22REC..RN61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35150 |
22REC..RN61 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-35080 |
22REC..RN61 |
1 | ||
| 17861-35070 |
22REC..RN61 |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-75001 |
22REC..RN61 |
1 | ||
| 90460-75001 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 90460-80001 |
22REC..RN61 AIR FLOWMETER SIDE |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 90460-75001 |
22REC..RN61 |
1 | ||
| 90460-75001 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 90460-80001 |
22REC..RN61 AIR FLOWMETER SIDE |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-35010 |
22REC..RN61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-35080 |
22REC..RN61 W(HOT AIR INTAKE) |
1 | ||
| 17887 - COVER, AIR CLEANER HOSE | ||||
| 17887-35030 |
22REC..RN61 |
1 | ||
| 22231 - HOSE, THROTTLE BODY | ||||
| 22231-35011 |
22REC..RN61 THROTTLE BODY SIDE |
1 | ||
| 22231-41030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231-35030 |
22REC..RN61 AIR FLOW METER SIDE |
1 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10800 |
22REC..RN61 |
2 | ||
| 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) | ||||
| 96111-10800 |
22REC..RN61 |
2 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-35020 |
22REC..RN61 |
1 | ||
| 22250-35060 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 90119-06479 | ||||
| 90119-08761 | ||||
| 90179-06205 | ||||
| 90560-06009 | ||||
| 94612-40601 | ||||
