RN61LG-MSEW (1987)
Toyota Hilux
Production
Dec 1987
-
Mar 1989
Engine
22REC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-9508)L,2L

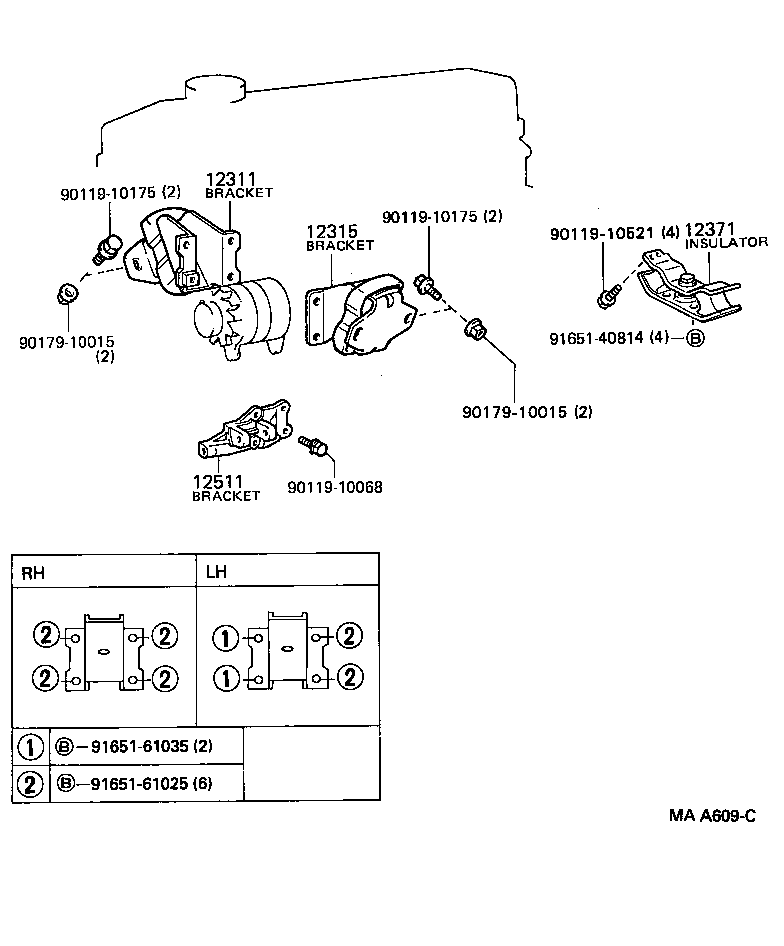

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35190 |
22REC..RN61 |
1 | ||
| 12311-54090 |
L,2L..LN5#,6# |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35190 |
22REC..RN61 |
1 | ||
| 12311-54090 |
L,2L..LN5#,6# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35070 |
22REC..RN61 |
1 | ||
| 12312-54020 |
L,2L..LN5#,6# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35070 |
22REC..RN61 |
1 | ||
| 12312-54020 |
L,2L..LN5#,6# |
1 | ||
| Common parts | ||||
| 90119-08028 | ||||
| 90119-10175 | ||||
| 90119-10521 | ||||
| 90170-12008 | ||||
| 90179-10015 | ||||
| 91611-61025 | ||||
| 91611-G1020 | ||||
| 91612-41022 | ||||
| 91651-40814 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
(8712-8903)22REC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12301-35190 |
22REC..RN61 |
1 | ||
| 12311-54090 |
L,2L..LN5#,6# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12302-35070 |
22REC..RN61 |
1 | ||
| 12312-54020 |
L,2L..LN5#,6# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-35030 |
22REC..RN61 |
1 | ||
| Common parts | ||||
| 90119-10068 | ||||
| 90119-10175 | ||||
| 90119-10521 | ||||
| 90179-10015 | ||||
| 91651-40814 | ||||
| 91651-61025 | ||||
| 91651-61035 | ||||
