RN58R-MSN (1994)
Toyota Hilux

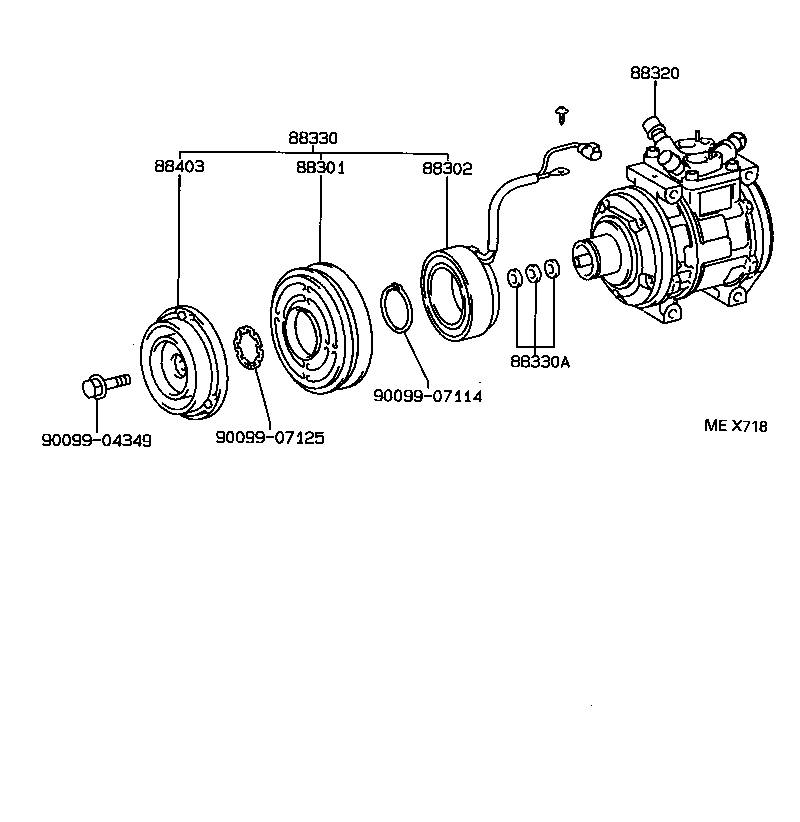

(9407- )RN58,67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-35030 |
RN67;RN58..SR5 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22310 |
RN67;RN58..SR5 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60620 |
RN67;RN58..SR5 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
RN67;RN58..SR5 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
RN67;RN58..SR5 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
RN67;RN58..SR5 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||

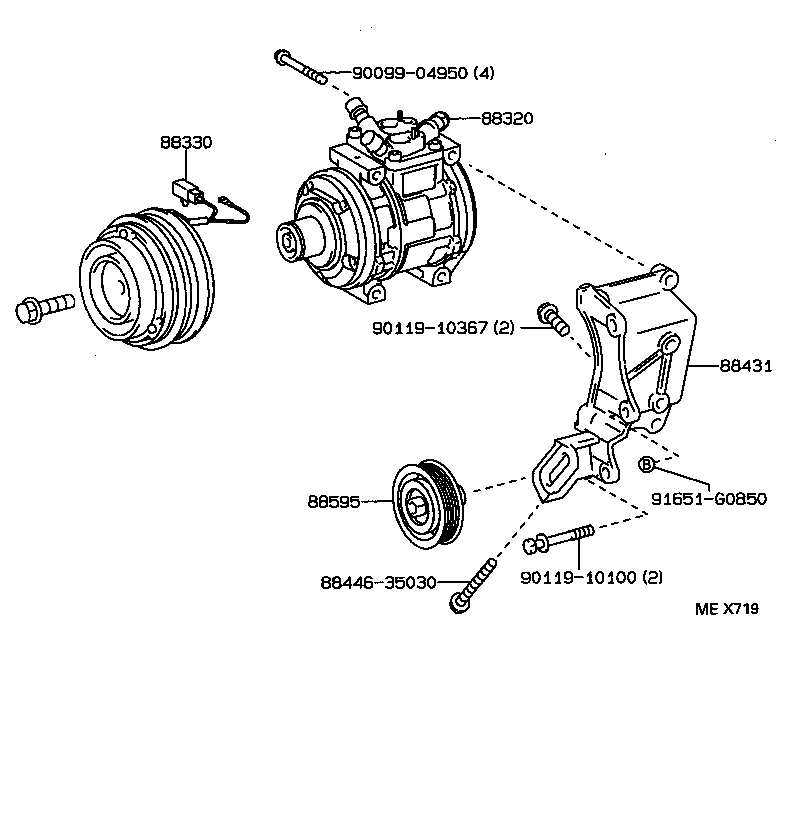

(9407- )RN58,67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60620 |
RN67;RN58..SR5 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-60310 |
RN67;RN58..SR5 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35150 |
RN67;RN58..SR5 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-35030 |
RN67;RN58..SR5 |
1 | ||
| Common parts | ||||
| 88446-35030 | ||||
| 90099-04950 | ||||
| 90119-10100 | ||||
| 90119-10367 | ||||
| 91651-G0850 | ||||

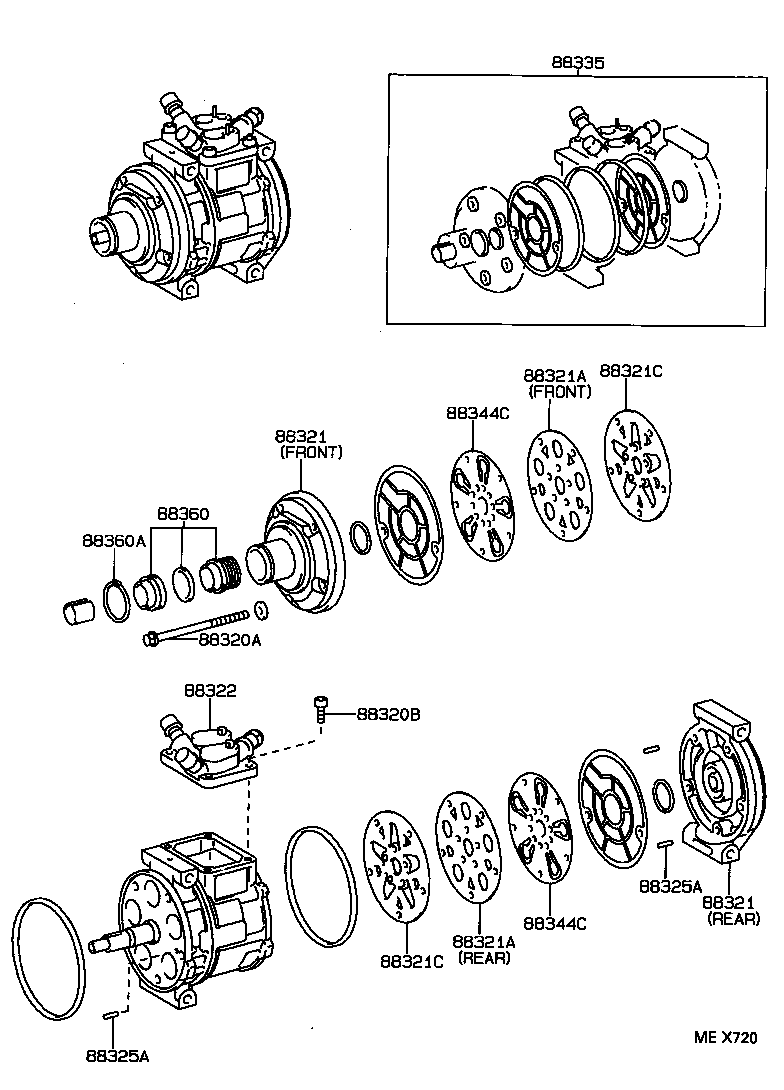

(9407- )RN58,67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320A - BOLT, THROUGH | ||||
| 90099-04370 |
RN67;RN58..SR5 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
RN67;RN58..SR5 |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
RN67;RN58..SR5 RR |
1 | ||
| 88321-32010 |
RN67;RN58..SR5 FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
RN67;RN58..SR5 RR |
1 | ||
| 88321-32010 |
RN67;RN58..SR5 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
RN67;RN58..SR5 FR |
1 | ||
| 88342-22010 |
RN67;RN58..SR5 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
RN67;RN58..SR5 FR |
1 | ||
| 88342-22010 |
RN67;RN58..SR5 RR |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
RN67;RN58..SR5 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
RN67;RN58..SR5 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-60350 |
RN67;RN58..SR5 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B010 |
RN67;RN58..SR5 |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
RN67;RN58..SR5 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
RN67;RN58..SR5 |
2 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-2B010 |
RN67;RN58..SR5 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
