RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )RN58,67

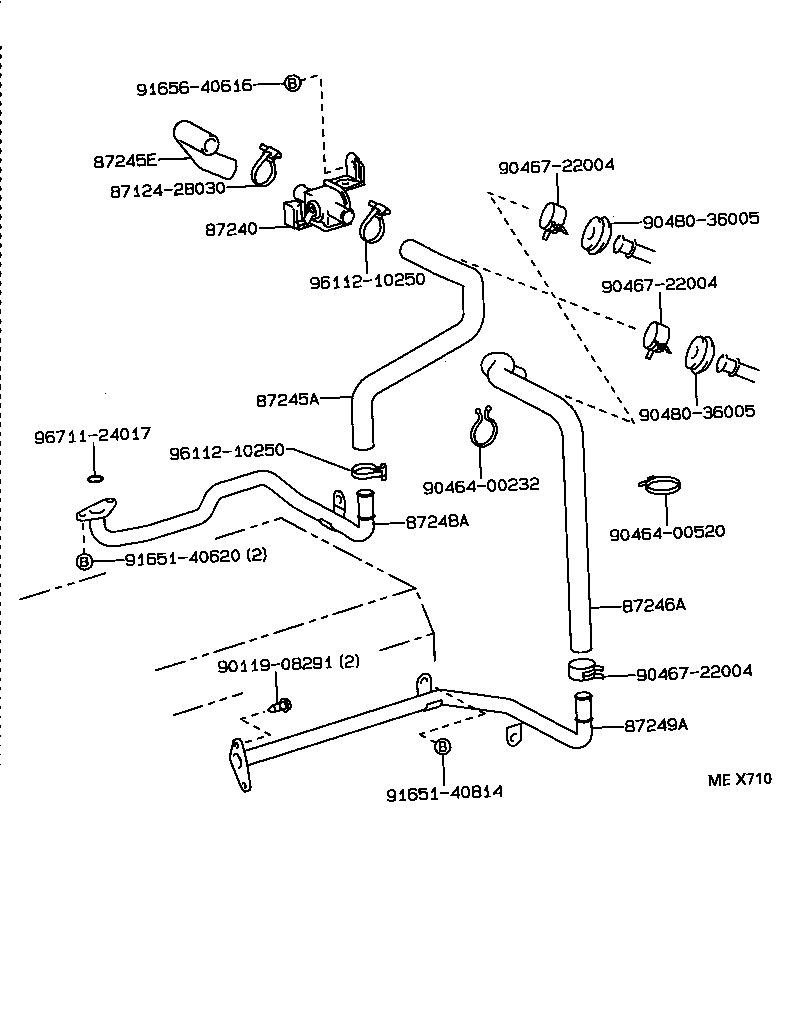

Click highlighted areas on diagram

diagram 8712428030 87240 87245A 87245E 87246A 87248A 87249A 9011908291 9046400232 9046400520 9046722004 9046722004 9046722004 9048036005 9048036005 9165140620 9165140814 9165640616 9611210250 9611210250 9671124017
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-89115

LN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD

 1
87240-35020

LN5#,6#,RN58,67

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89220

RN67;RN58..SR5

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89233

LN5#,6#,RN58,67

 1
87245-89146

LN5#,6#,RN5#,61,YN5#,6#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89161

YN50,51,55,56,57,58,60,63,65,67..RHD..CBR

 1
87245-89221

RN67;RN58..SR5

 1
87248A - PIPE, HEATER WATER INLET, A
87208-35160

RN67;RN58..SR5

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-35130

RN67;RN58..SR5

 1
Common parts
87124-28030
90119-08291
90464-00232
90464-00520
90467-22004
90480-36005
91651-40620
91651-40814
91656-40616
96112-10250
96711-24017
