RN58R-MSN (1994)
Toyota Hilux
Production
Jul 1994
-
Jul 1998
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

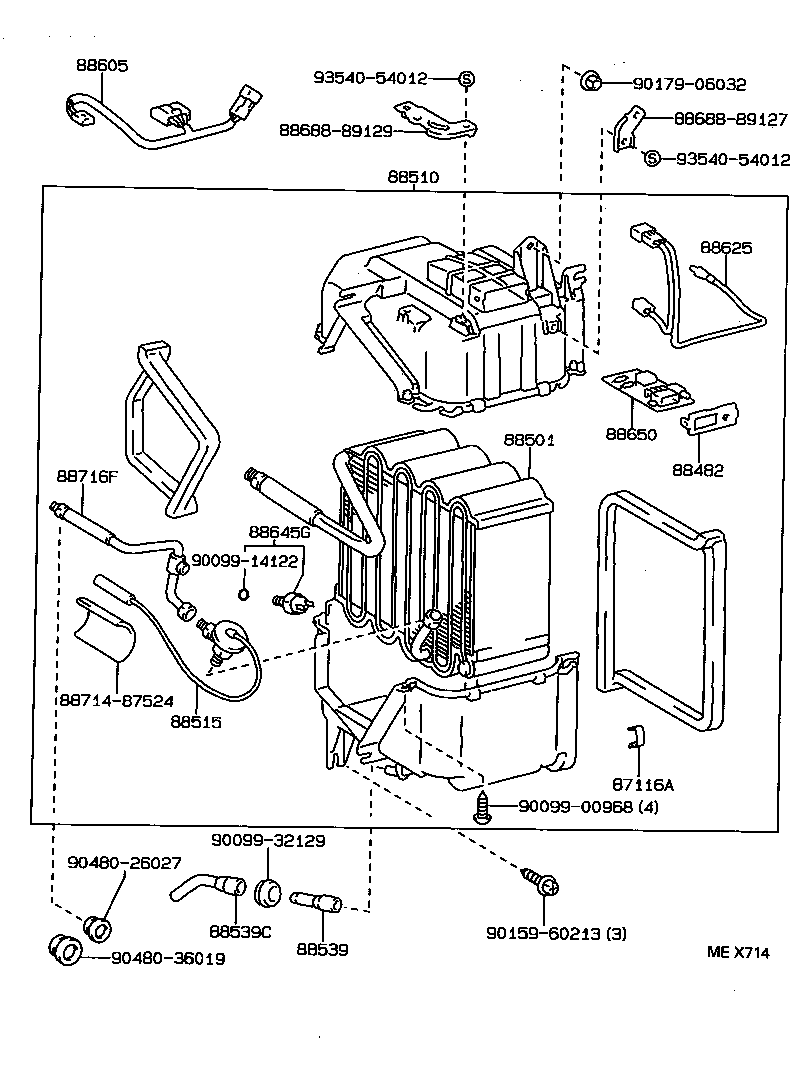

ILLUST NO. 3 OF 3(9407- )RN58,67
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA |
4 | ||
| 88482 - CAP, COOLER | ||||
| 88482-60010 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35030 |
RN67;RN58..SR5 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-35470 |
RN67;RN58..SR5 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
LN56..LHD..RCB..EUR..CBU;LN5#,6#,RN5#,YN50,52,55,57,6#..ARL,GEN,ME,SA |
1 | ||
| 88515-34010 |
RN67;RN58..SR5 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89113 |
RN67;RN58..SR5 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88894-89109 |
RN67;RN58..SR5 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-89151 |
RN67;RN58..SR5 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89101 |
LN5#,6#,RN5#,YN5#,6#..ARL,GEN,ME,SA |
1 | ||
| 88625-34010 |
RN67;RN58..SR5 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-34010 |
RN67;RN58..SR5 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-16010 |
RN5#,YN50,52,55,57,6#..ARL,GEN,ME,SA |
1 | ||
| 88650-89105 |
RN67;RN58..SR5 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-35220 |
RN67;RN58..SR5 |
1 | ||
| Common parts | ||||
| 88688-89127 | ||||
| 88688-89129 | ||||
| 88714-87524 | ||||
| 90099-00968 | ||||
| 90099-14122 | ||||
| 90099-32129 | ||||
| 90159-60213 | ||||
| 90179-06032 | ||||
| 90480-26027 | ||||
| 90480-36019 | ||||
| 93540-54012 | ||||
