RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )RN58,67

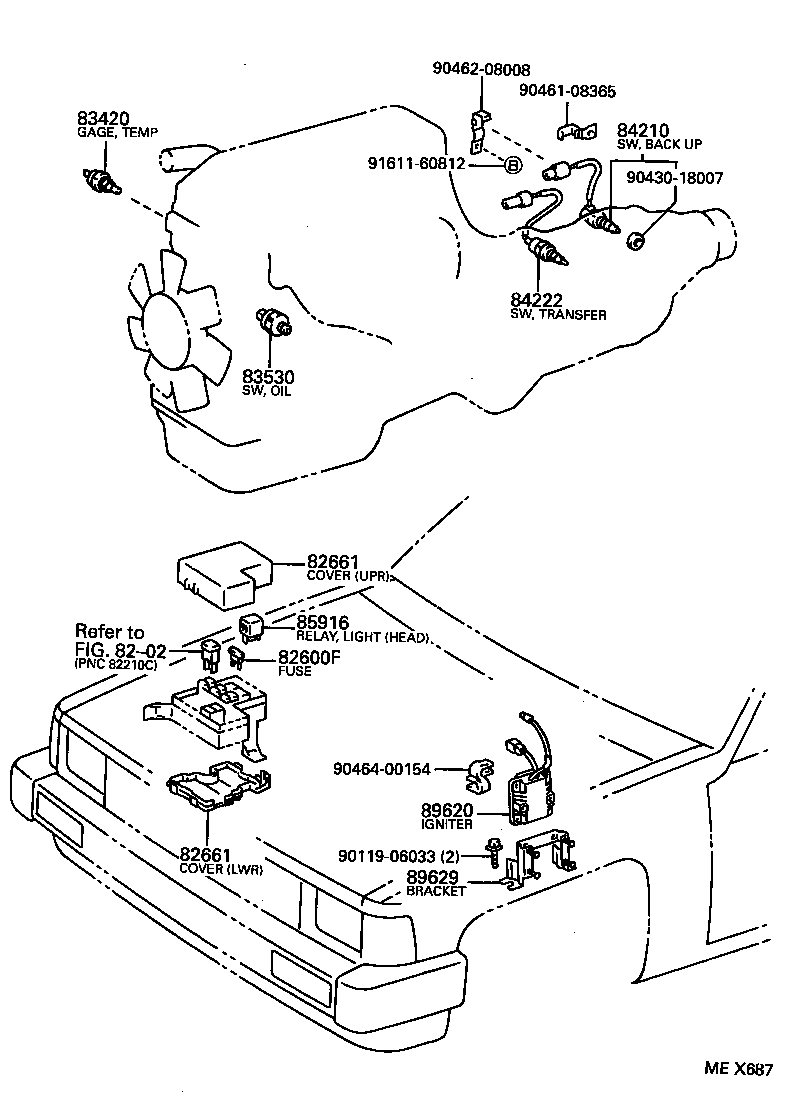

Click highlighted areas on diagram

diagram 8202 82600F 82661 82661 83420 83530 84210 84222 85916 89620 89629 9011906033 9043018007 9046108365 9046208008 9046400154 9161160812
Part # Description Qty Price
82600F - FUSE, FUSE BLOCK
90982-09002

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

10A,10A

 6
90982-09003

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

15A,15A

 7
90982-09005

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

7.5A,7.5A

 6
90982-09004

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

20A,YELLOW,20A

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-89102

LN5#,6#,RN5#,YN5#,6#

ENGINE ROOM

 1
82661-89101

LN5#,6#,RN5#,YN5#,6#

COWL SIDE

 1
82661 - COVER, RELAY BLOCK, NO.1
82661-89102

LN5#,6#,RN5#,YN5#,6#

ENGINE ROOM

 1
82661-89101

LN5#,6#,RN5#,YN5#,6#

COWL SIDE

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LN5#,6#,RN5#,61,YN5#,6#

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,67,YN5#,6#

TAIL LAMP RELAY

 1
90987-04002

LN5#,6#,RN5#,YN5#,6#

HEADLAMP RELAY

 1
89620 - IGNITER ASSY
89620-35300

RN67;RN58..SR5

 1
89629 - BRACKET, IGNITER ASSY
89629-35020

RN67;RN58..SR5

 1
Common parts
90119-06033
90430-18007
90461-08365
90462-08008
90464-00154
91611-60812
Linked diagrams
8202
