RN58R-MSN (1994)
Toyota Hilux
Production
Jul 1994
-
Jul 1998
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9407- )RN58,67

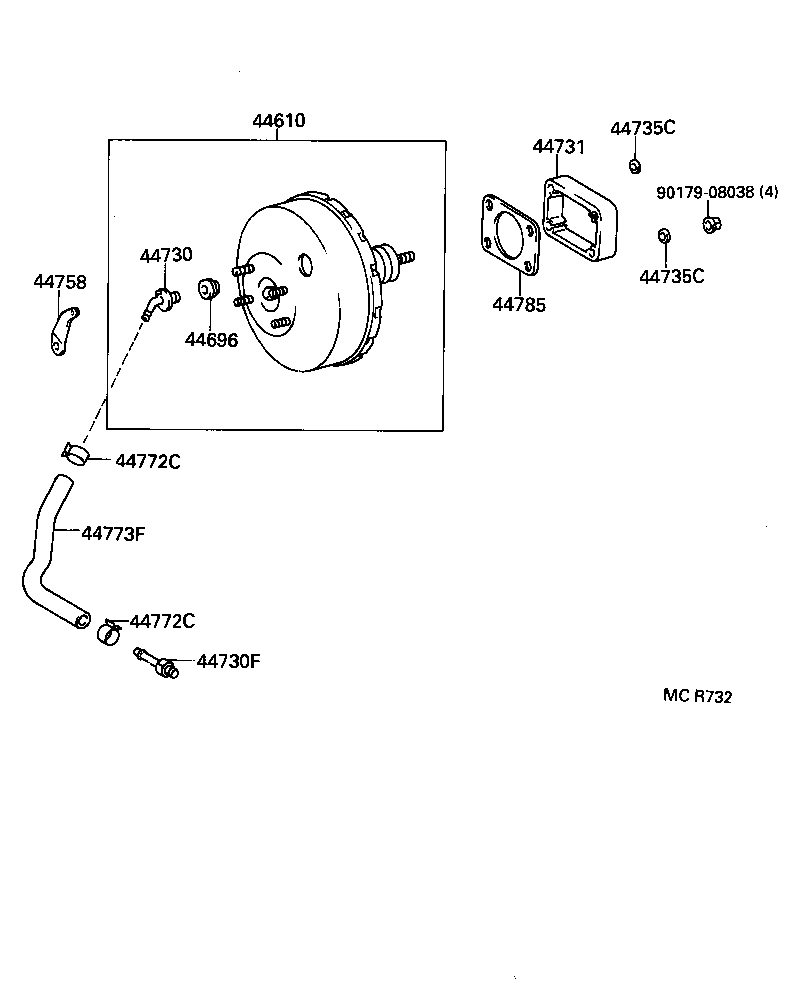

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D650 |
RN67;RN58..SR5 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
RN67;RN58..SR5 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44730-30040 |
RN67;RN58..SR5 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-35110 |
RN67;RN58,YN5#..RCB |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
RN67;RN58,YN5#..RCB |
2 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
RN67;RN58,YN5#..RCB |
2 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35070 |
YN50,51,55,56,57,58,60,63,65,67..RHD |
1 | ||
| 44758-14140 |
RN67;RN58..SR5 |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
RN58..SR5;RN50,55,6#,YN5#,6# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
RN58..SR5;RN50,55,6#,YN5#,6# |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35380 |
RN67;RN58..SR5 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
