RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )RN58,67

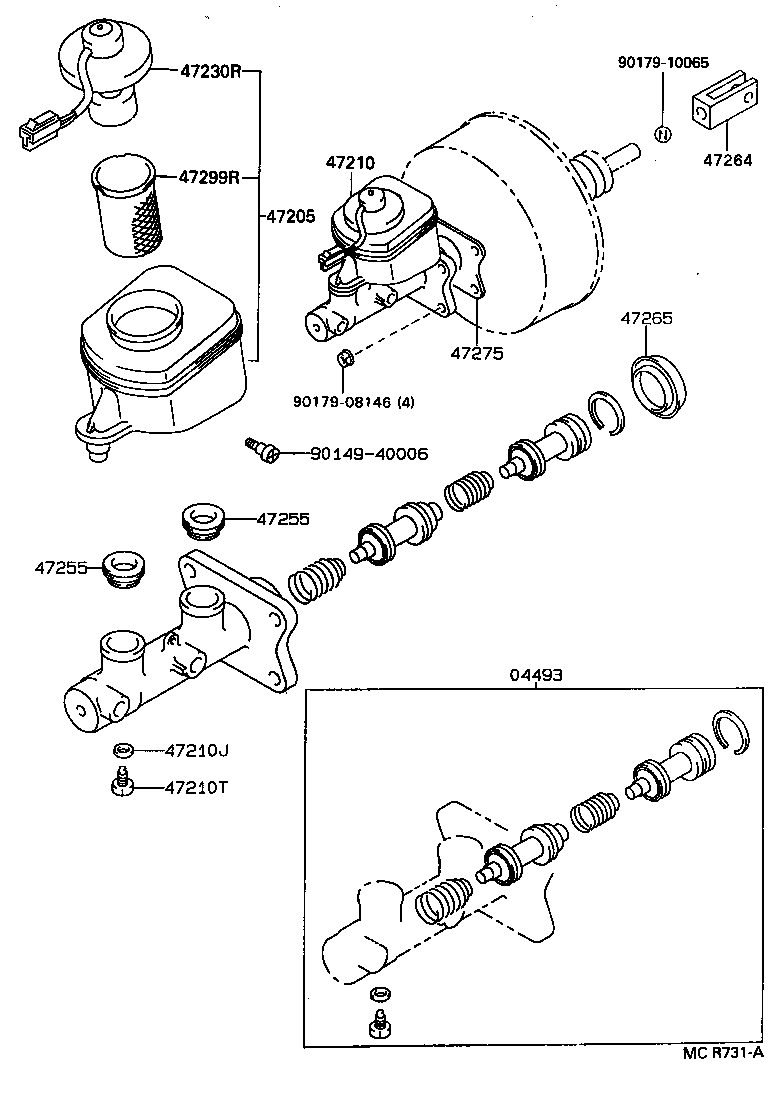

Click highlighted areas on diagram

diagram 04493 47205 47210 47210J 47210T 47230R 47255 47255 47264 47265 47275 47299R 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-35150

LN5#,YN50,51,52,55,56,58

FR DISC

 1
04493-35320

RN58..SR5

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-35220

RN67;RN58..SR5

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-3D050

RN58..SR5

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

LN5#,6#,RN5#,6#,YN5#,6#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

LN5#,6#,RN5#,61,YN5#,6#

 1
90109-06077

RN67;RN58..SR5

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-12011

LN5#,6#,RN5#,YN5#,60,63,65,67..ARL,EUR,ME,SA

W/LEVEL WARNING

 1
84460-35040

RN67;RN58..SR5

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

RN67;RN58..SR5

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

RN67;RN58..SR5

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

LN5#,6#,RN5#,61,YN5#,6#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

RN58..SR5

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

LN5#,6#,RN5#,YN50,52,55,56,6#

TANDEM MASTER

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-32010

RN67;RN58..SR5

 1
47299-14010

LN5#,6#,RN5#,61,YN5#,6#

TANDEM MASTER

 1
Common parts
90149-40006
90179-08146
90179-10065
