RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )RN58,67

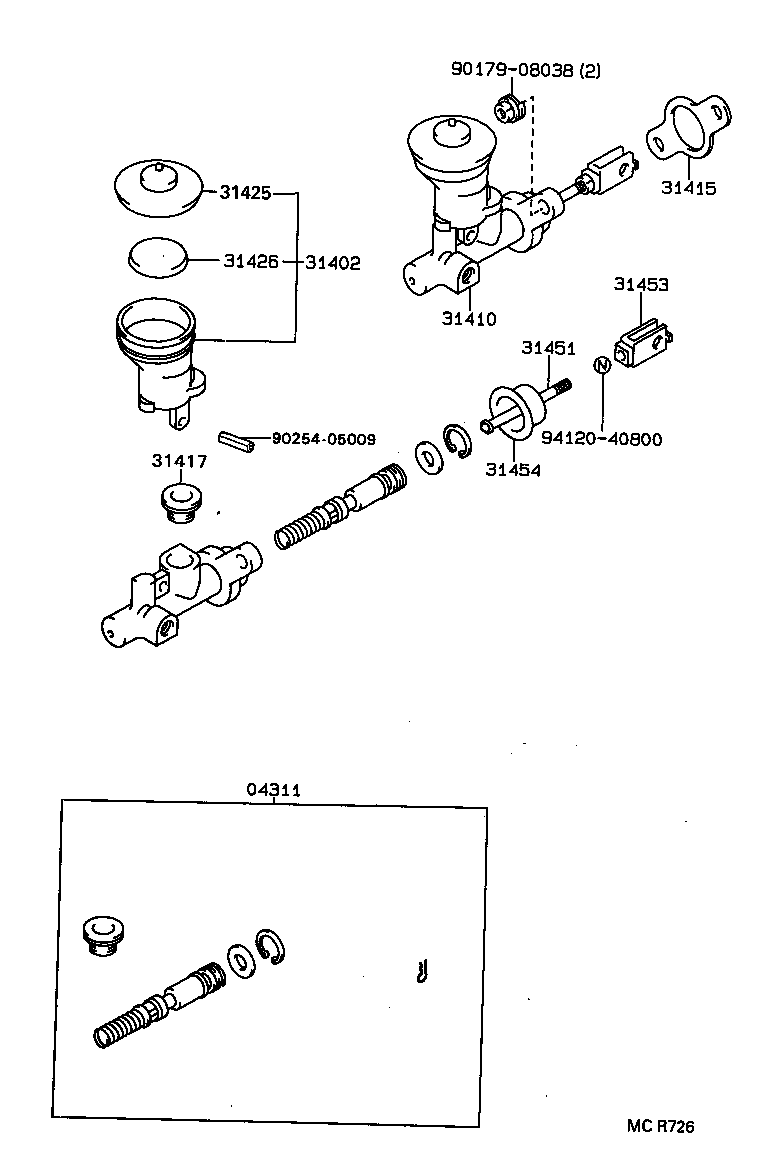

Click highlighted areas on diagram

diagram 04311 31402 31410 31415 31417 31425 31426 31451 31453 31454 9017908038 9025405009 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12080

RN67;RN58..SR5

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030

RN67;RN58..SR5

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-35281

RN67;RN58..SR5

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-30030

YN58..4FC..IV;LN5#,6#,RN5#,61,YN5#,6#..MTM

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

RN67;RN58..SR5

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070

RN67;RN58..SR5

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-16010

RN67;RN58..SR5

 1
Common parts
90179-08038
90254-05009
94120-40800
