RN58R-MSN (1994)
Toyota Hilux
(9407- )22R
12V 1.0KW

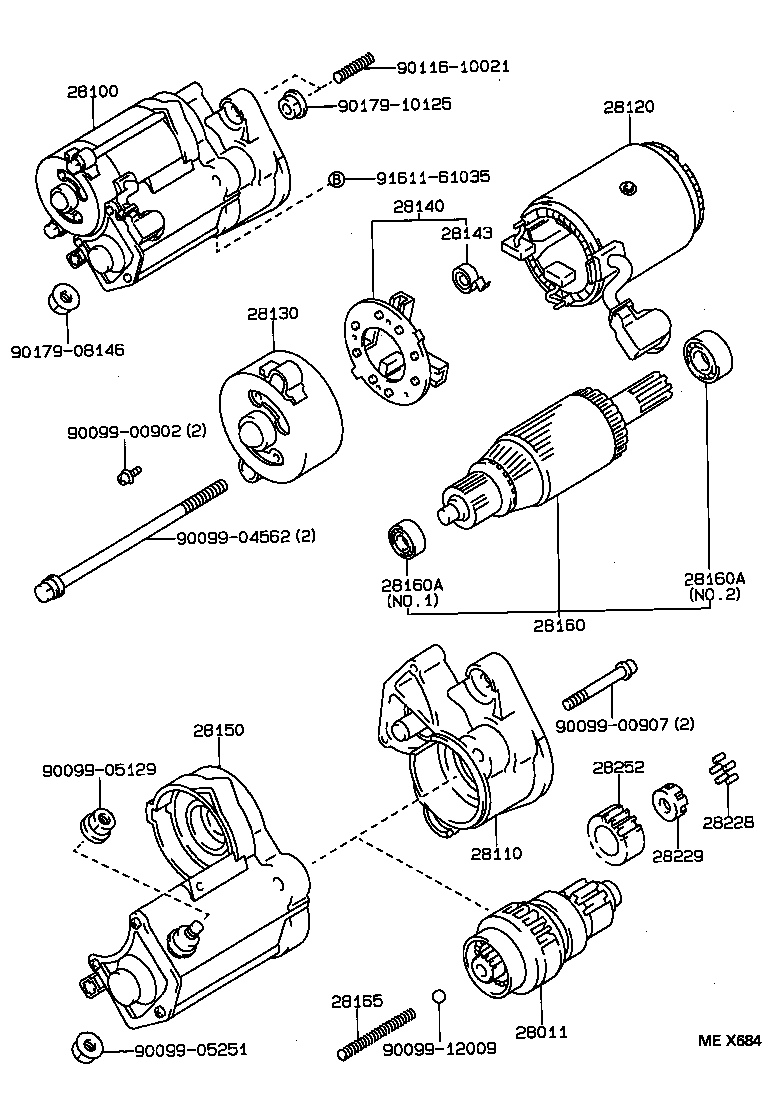

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
22R,1Y#,2Y#,3Y,4Y#..RN5#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| 28011-35030 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-35080 |
22R..RN67;22R..RN58..SR5 12V 1.0KW,12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-34080 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28140-65010 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
22R,1Y#,2Y#,3Y..RN5#,YN50,51,52,55,56,57,60,65 12V 1.0KW |
1 | ||
| 28150-35080 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
22R..RN67;22R..RN58..SR5 12V 1.0KW |
1 | ||
| 28160-26070 |
22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6# 12V 1.0KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.1 |
1 | ||
| 90099-10113 |
22R..RN58..SR5;22R,1Y#,2Y#,3Y,4Y,4YC..RN50,55,67,YN5#,6# 12V 1.0KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22R,2Y,4Y..RN58,67,YN5# 12V 1.0KW |
1 | ||
| 28165-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
L,22R#,2L,3L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
L,22R#,2L,1Y#,2Y#,3Y,4Y#..LN5#,6#,RN5#,6#,YN5#,6# 12V 1.0KW,1.4KW,2.0KW |
1 | ||
| 28229-26040 |
22R,2Y,4Y..RN58,67,YN5# 12V 1.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
22R..RN58..SR5;22R#,1Y#,2Y#,3Y,4Y#..RN50,55,6#,YN5#,6# 12V 1.0KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61035 | ||||
